Commissioning (software)
6.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 02/2012
173
12. In the case of double motor modules, you need to specify the terminal to which the motor
is connected.
You specify the motor in the following dialog boxes:
– Either by selecting a standard motor from the list
– Or by entering the motor data
– Or by automatically identifying the motor (motor with DRIVE-CLiQ interface)

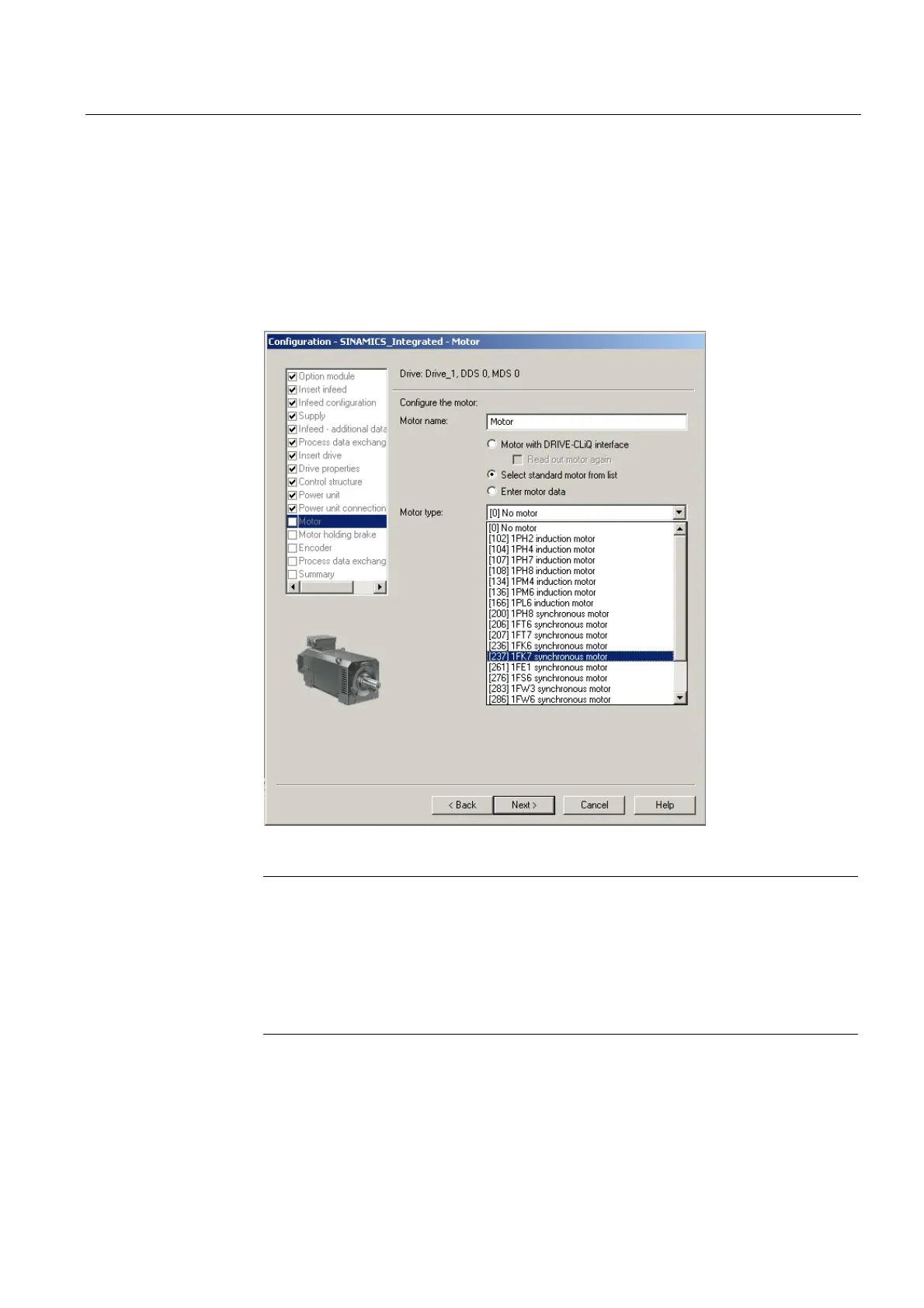

Figure 6-12 Selecting a motor (1)
Note
Motors with DRIVE-CLiQ interface have an integrated encoder evaluation that is
connected to the motor module via a fully digital communication interface (DRIVE-
CLiQ).
In this way, motor encoder and temperature signals as well as electronic rating plate
data, such as unique ID numbers, rated data (voltage, current, torque) can be
transferred directly to the control unit.
