Operator control (hardware)
3.1 Operator control and display elements
MAC addresses
A second nameplate for the MAC addresses of the two Ethernet interfaces is attached to the
front panel:
MAC address of X120
MAC address of X130

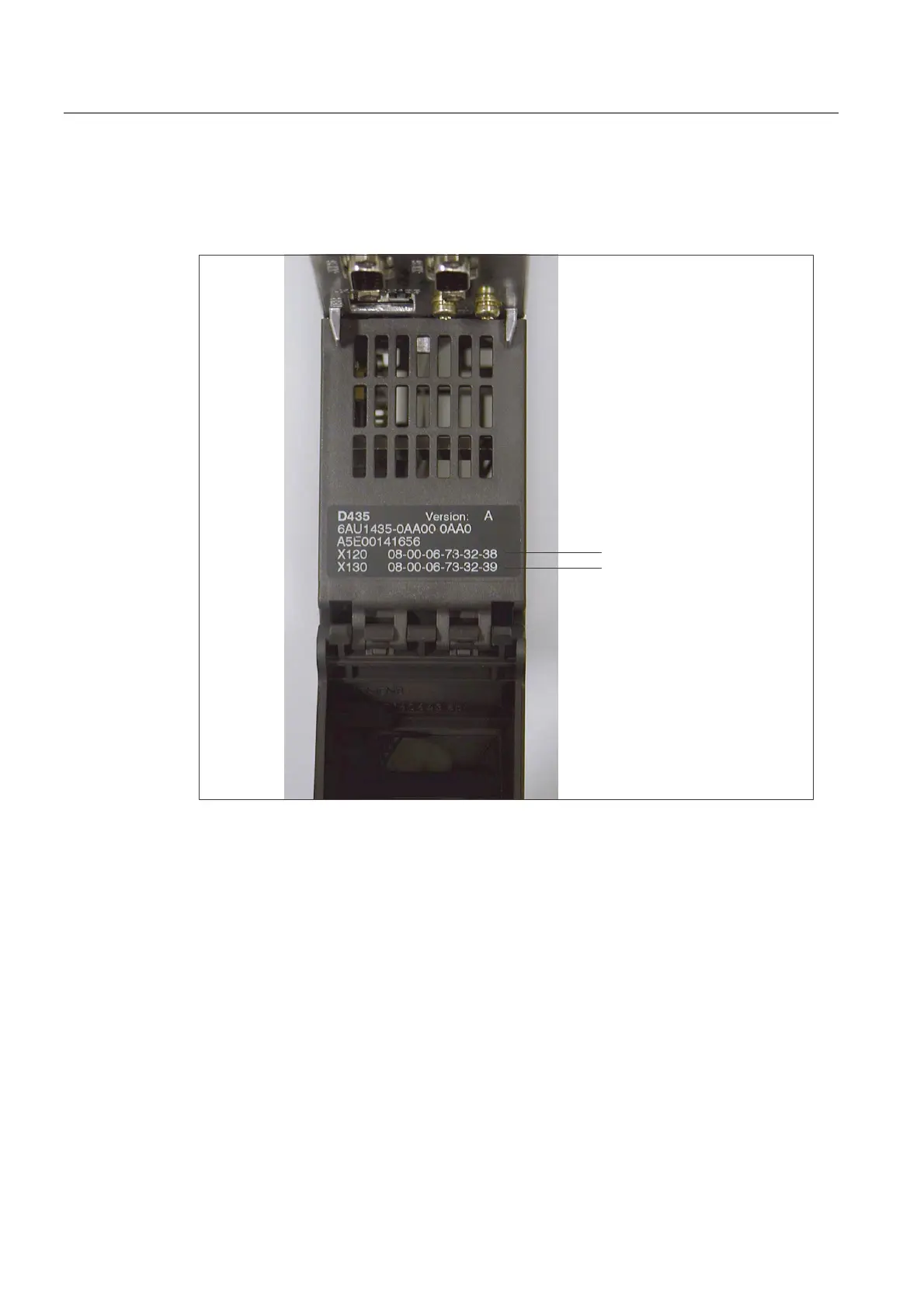

Figure 3-3 MAC addresses
You can see this nameplate when you open the front cover of the control unit.
D4xx
3-6 Manual, 12.2004, 6AU1900-1AJ32-0BA0
