Interfaces
4.4 Digital inputs/outputs
4.4 Digital inputs/outputs
4.4.1 X122 and X132 digital inputs
Interface features
Table 4-7 Interfaces X122 and X132
Features Type
Connector type Micro Combicon
Connection possibility: up to 0,5 mm
2
Current carrying capacity 4 A, maximum
Position of connectors
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
X132X122
'LJLWDOLQSXWV
SLQV
'LJLWDOLQSXWVRXWSXWVSLQV
DQG

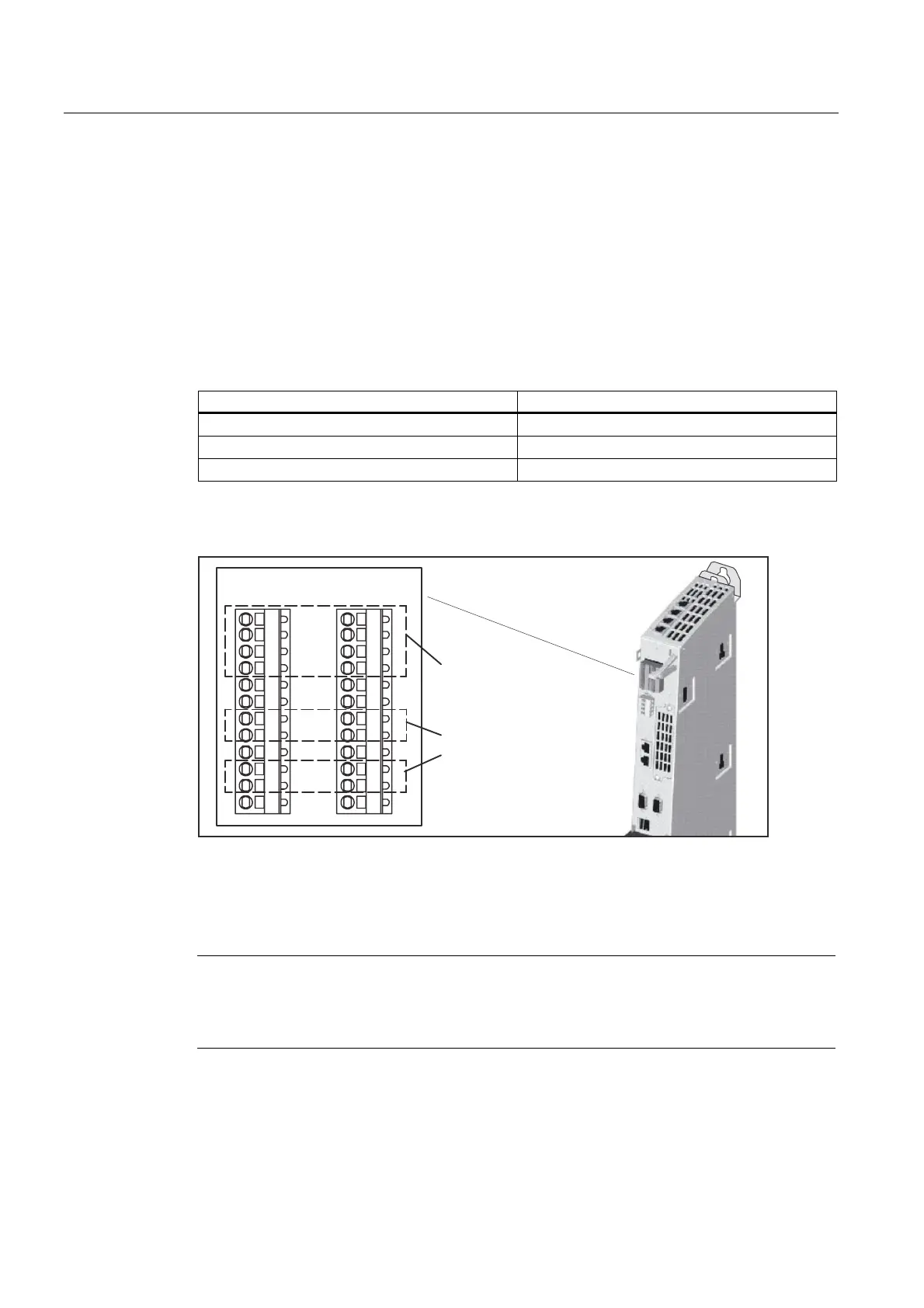

Figure 4-3 Digital inputs and digital inputs/outputs (interfaces X122 and X132)
Access to inputs/outputs
Note
The SIMOTION runtime module accesses the digital inputs/outputs by means of PROFIBUS
Integrated rather than directly. For this reason, the inputs/outputs are updated in the
PROFIBUS bus cycle clock for SINAMICS Integrated.
D4xx
4-6 Manual, 12.2004, 6AU1900-1AJ32-0BA0
