Connecting

6.2 Cable routing into the unit

SINAMICS DCM DC Converter

112 Operating Instructions, 12/2018, A5E34763375A

①

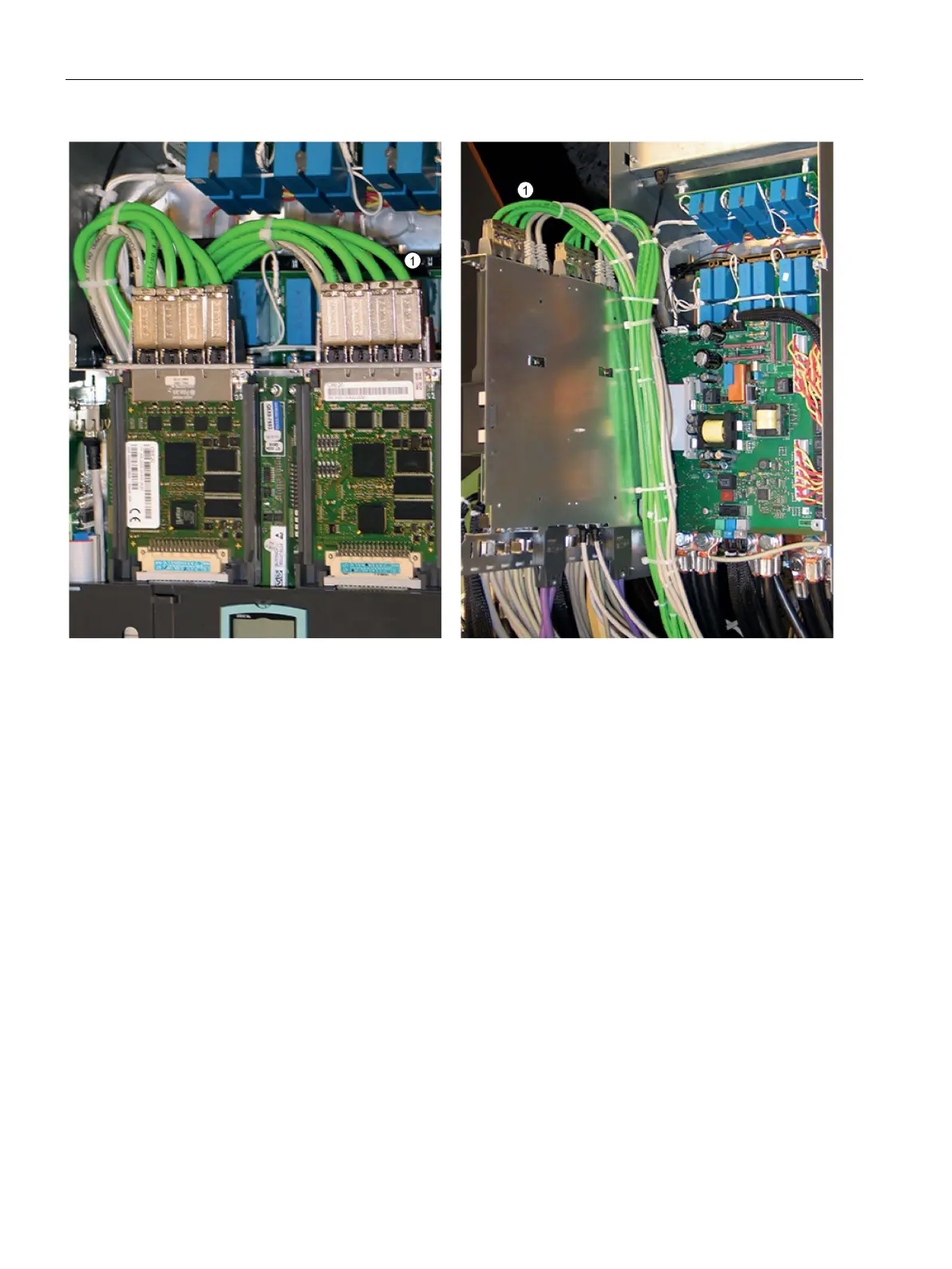

PROFINET cable (4 connections on each CBE20)

Figure 6-15 Routing PROFINET cables in devices > 280 A
