Connecting
6.8 Arrangement of terminals and connectors
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
157
Module – Allocation Board

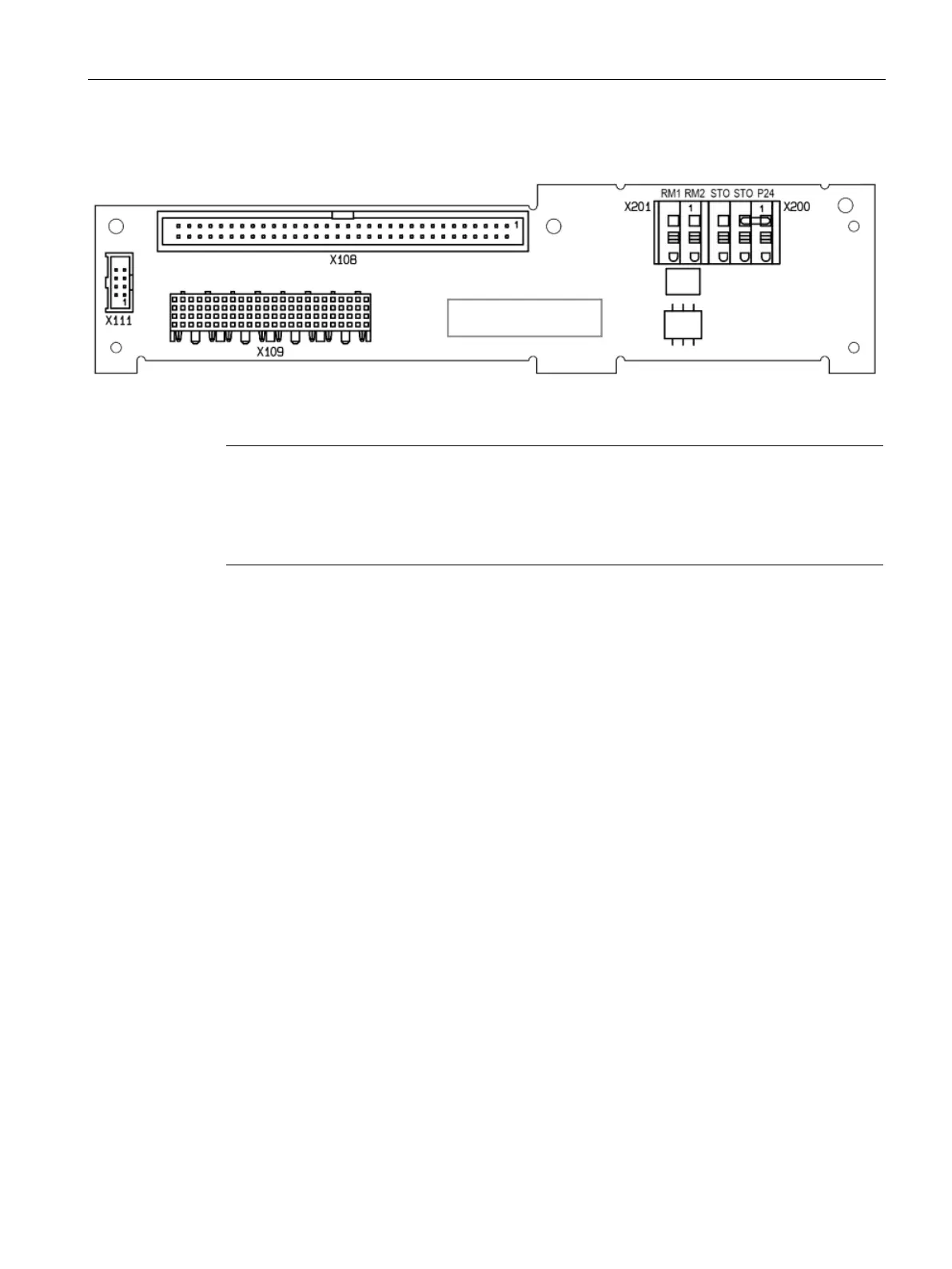

Figure 6-45 Terminal/connector assignment on the "Allocation Board"
Note
Jumper STO to P24 for Functional Safety
The jumper STO to P24 must be removed for use of the safety function and the wiring
performed according to one of the applications in Chapter
"Functional safety (Page 709)"
