6.8 Arrangement of terminals and connectors
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
163
Module – Power Interface for 4Q devices, 400 - 600 V with DC electronic power supply

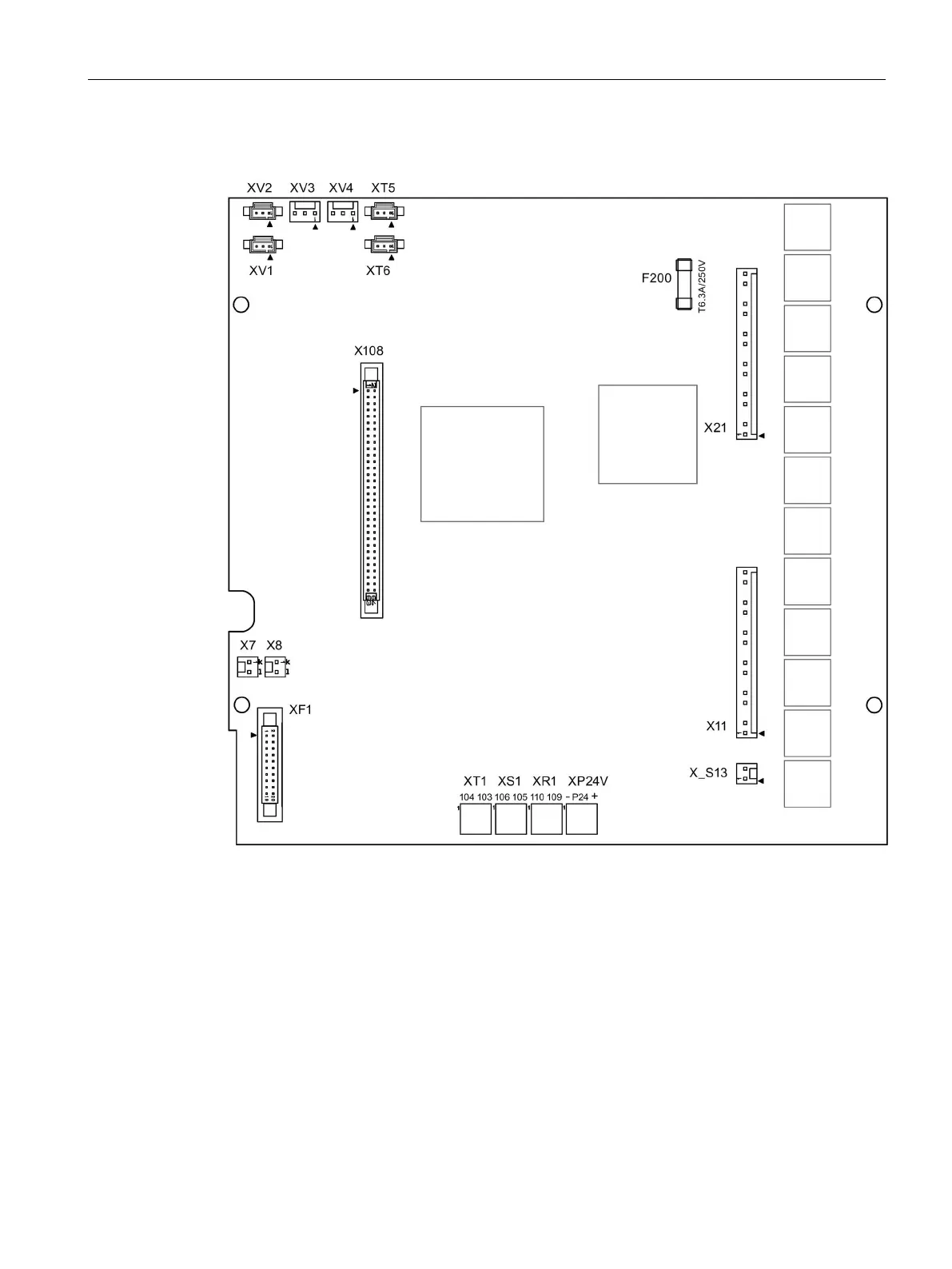

Figure 6-51 Terminal/connector arrangement on the "Power Interface for 4Q devices, 400 - 600 V
with DC electronic power supply"
