Additional system components
7.3 Sensor Module Cabinet-Mounted SMC30
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
223
For encoders without Remote Sense the permissible cable length is restricted to 100 m
(reason: The voltage drop depends on the cable length and the encoder current).

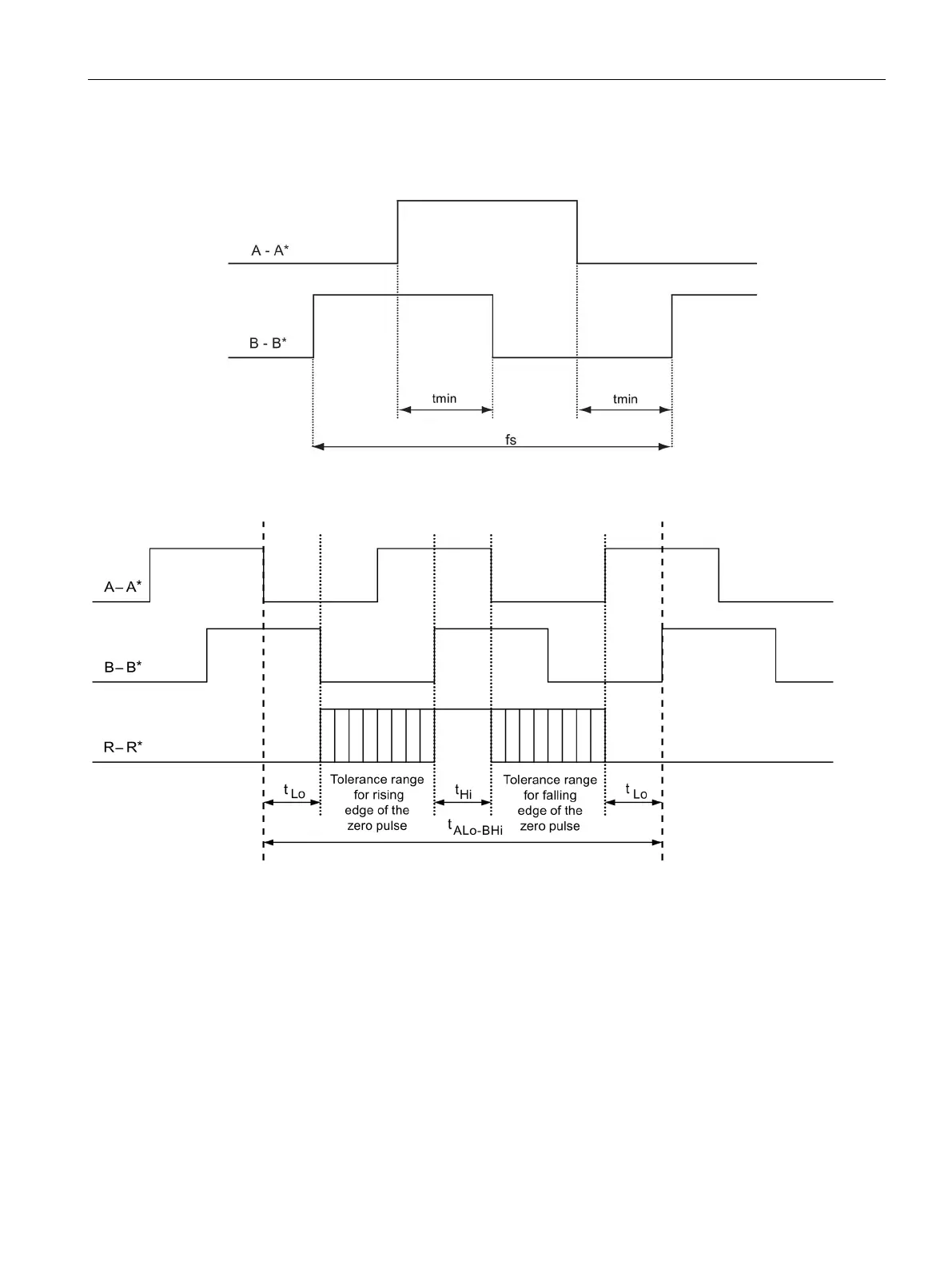

Figure 7-16 Signal characteristic of track A and track B between two edges: Time between two edges
with incremental encoders
Figure 7-17 Position of the zero pulse to the track signals
