Transportation, unpacking, installation

5.2 Installation

SINAMICS DCM DC Converter

Operating Instructions, 12/2018, A5E34763375A

60 to 280 A, 2Q units

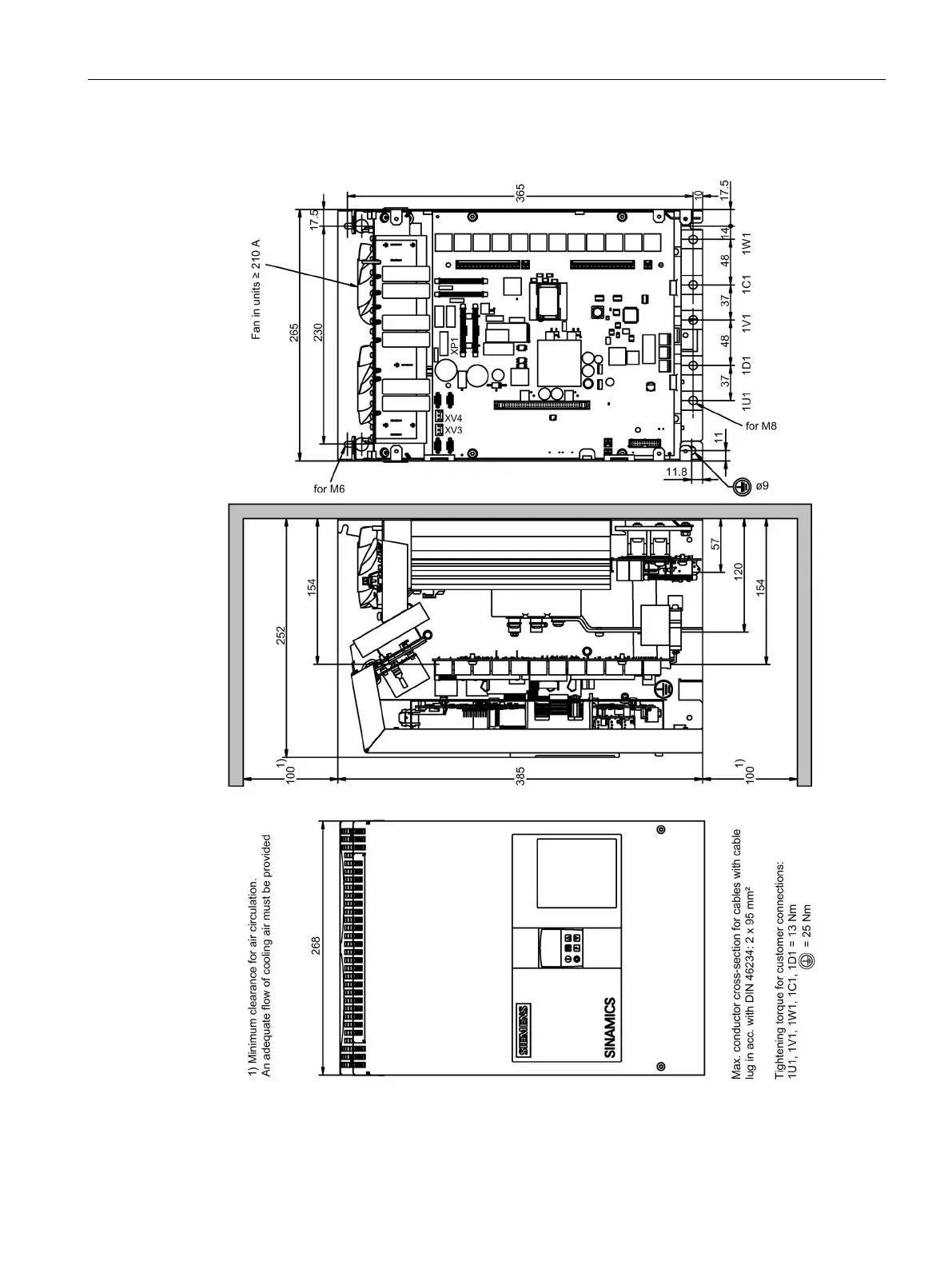

Figure 5-4 Dimension drawing, 60 A to 280 A, 2Q
