Commissioning SINAMICS S120
Commissioning SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 42/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

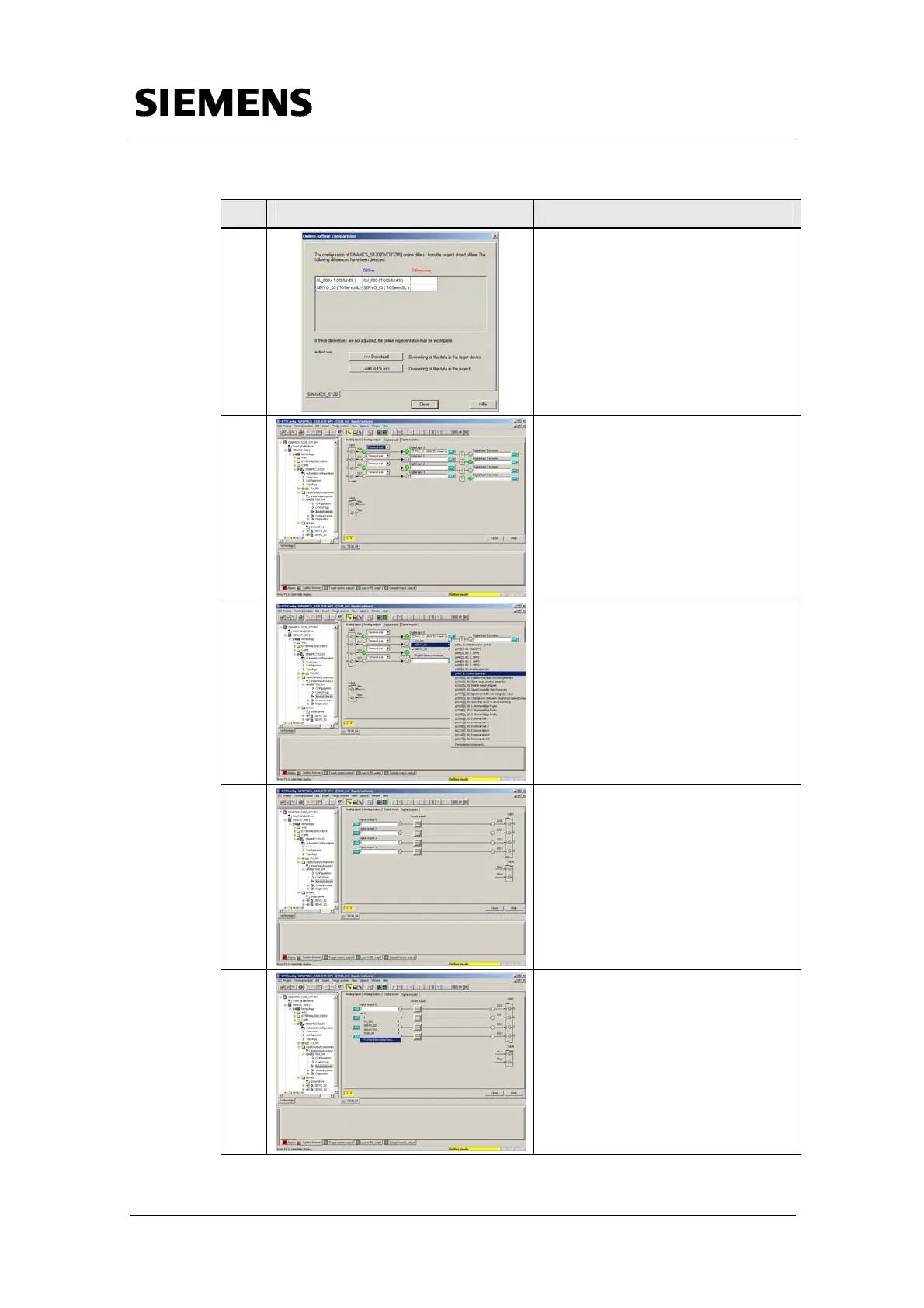

No. Instruction Note
3.
In Online/Offline Comparison,
load the settings made in S7T
Config (manual configuration of
SERVO_03) to SINAMICS S120 by
clicking the <== Download button.
4.
In the component TB30_04, double-
click Inputs/Outputs to open it.
Select the Digital inputs section.
5.
Configure the parameter p864 of
the drive SERVO_02 – Infeed
operation to Digital Input 0 to
which the Ready signal of the SLM
is applied.
The parameter p864 of the drive
SERVO_03 is already configured!
6.
In the component TB30_04, select
the Digital outputs section.
7.
For the first output Digital output 0,
select the Further
interconnections… command from
the context menu.
