Commissioning SINAMICS S120
Control of SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 46/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc
7 Control of SINAMICS S120
You are provided with information on…
how to control and operate SINAMICS S120 via the technology CPU.
7.1 Manual control of the drive via the control panel
After commissioning SINAMICS S120, the drives can be controlled from
S7T Config via the control panel for the SINAMICS S120 drive system for a
first test.
7.1.1 Call of the control panel in S7T Config
The control panel for the operation of the drives of SINAMICS S120 is
called as follows:

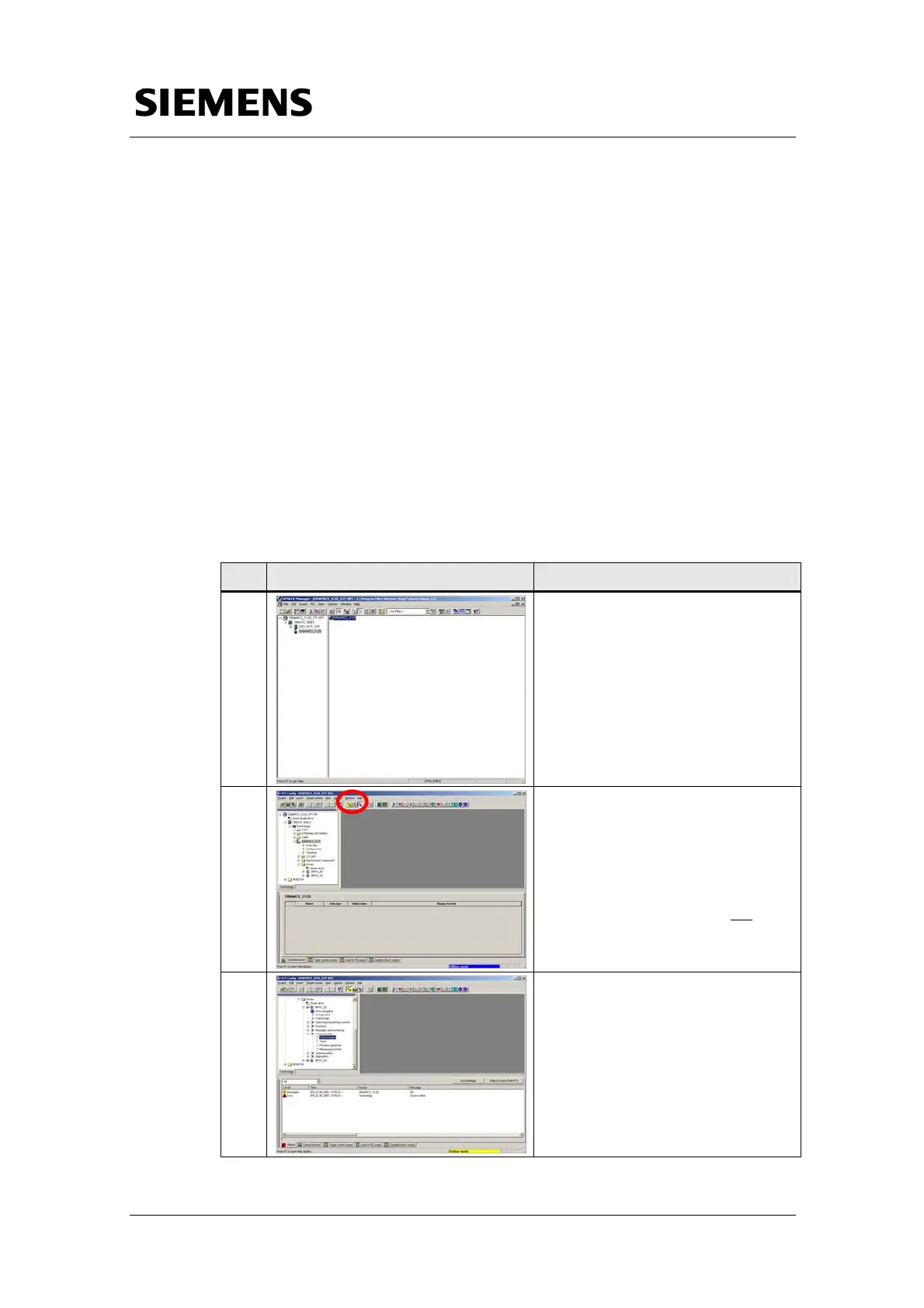

Table 7-1 Call of the control panel for SINAMICS S120 in S7T Config
No. Instruction Note
1.
In the SIMATIC Manager, select
SINAMICS_S120 and double-click
this component in the right
window.
This starts S7T Config for
SINAMICS S120.
2.
Establish the online connection to
SINAMICS S120 using the Speed
button.
Attention:
At this point, activating the online
connection via the menu is not
possible!
3.
In the Commissioning section, call
Control Panel for the drive
SERVO_02 or SERVO_03.
