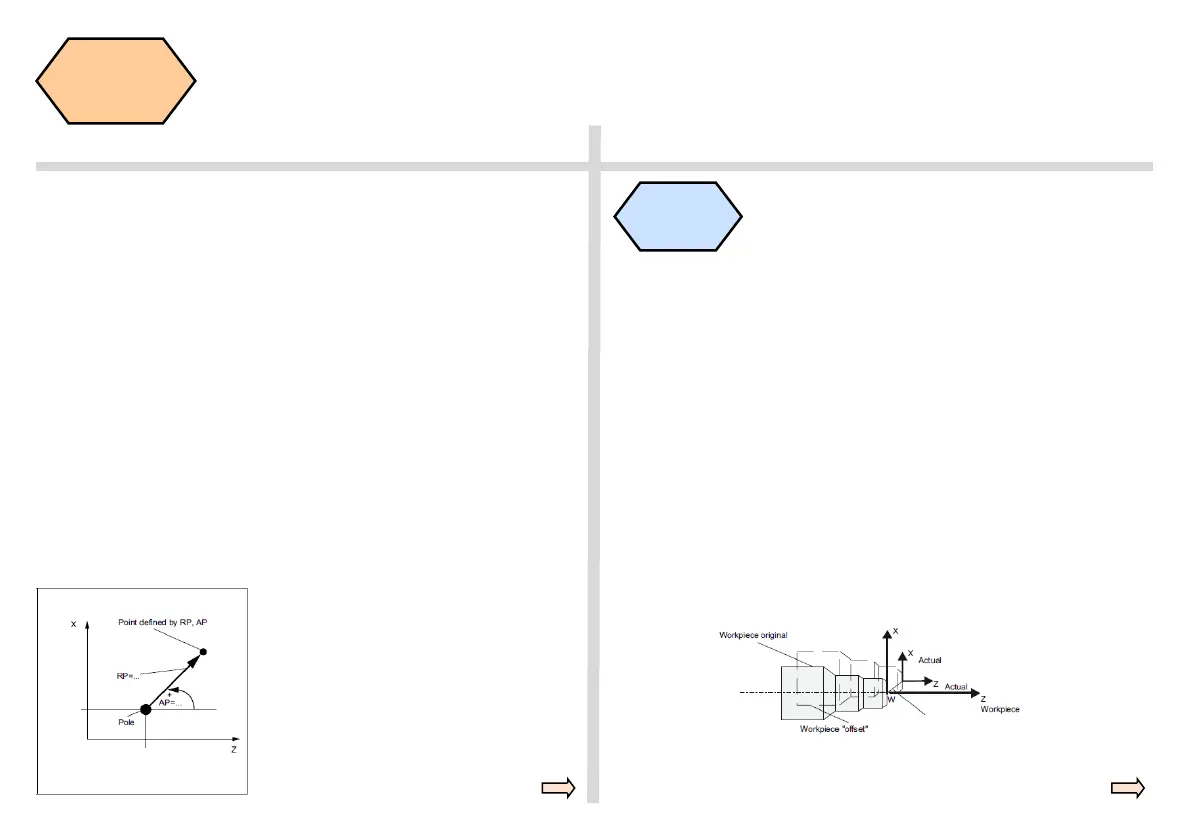

808D ADVANCED Page 85 Programming and Operating — Turning
Additional
Information
Part 2
s
SEQUENCE
The programmable workpiece offsets TRANS and ATRANS can be used
in the following cases:
● For recurring shapes/arrangements in various positions on the work-
piece
● When selecting a new reference point for dimensioning
This results in the current workpiece coordinate system.
TRANS X... Z... ; programmable offset（absolute）
ATRANS X... Z... ; programmable offset, additive to existing offset
（incremental）
TRANS ; without values, clears old commands for offset
Programming example
N20 TRANS X20.0 Z15.0 programmable offset
L10 subprogram call
G110 Pole specification relative to the setpoint position last programmed
(in the plane, e.g. with G18: Z/X)
(when using G110, please always take the current position of the
tool as the reference point to specify the new pole)
G111 Pole specification relative to the origin of the current workpiece
coordinate system （in the plane, e.g. with G18: Z/X）
G112 Pole specification, relative to the last valid pole; retain plane
Programming example
N10 G18 ; Z/X plane
N20 G111 X17 Z36 ; pole coordinates in the current workpiece
coordinate system...
N80 G112 AP=45 RP=27.8 ; new pole, relative to the last pole as a
polar coordinate
N90 ... AP=12.5 RP=47.679 ; polar coordinate
N100 ... AP=26.3 RP=7.344 Z4 ; polar coordinate and Z axis（= cylinder
coordinate）
Example: G18: Z/X plane
Additive
workpiece
offsets
Trans X… Z...
To Next Page
