Siemens SINUMERIK 808D Operating Guide

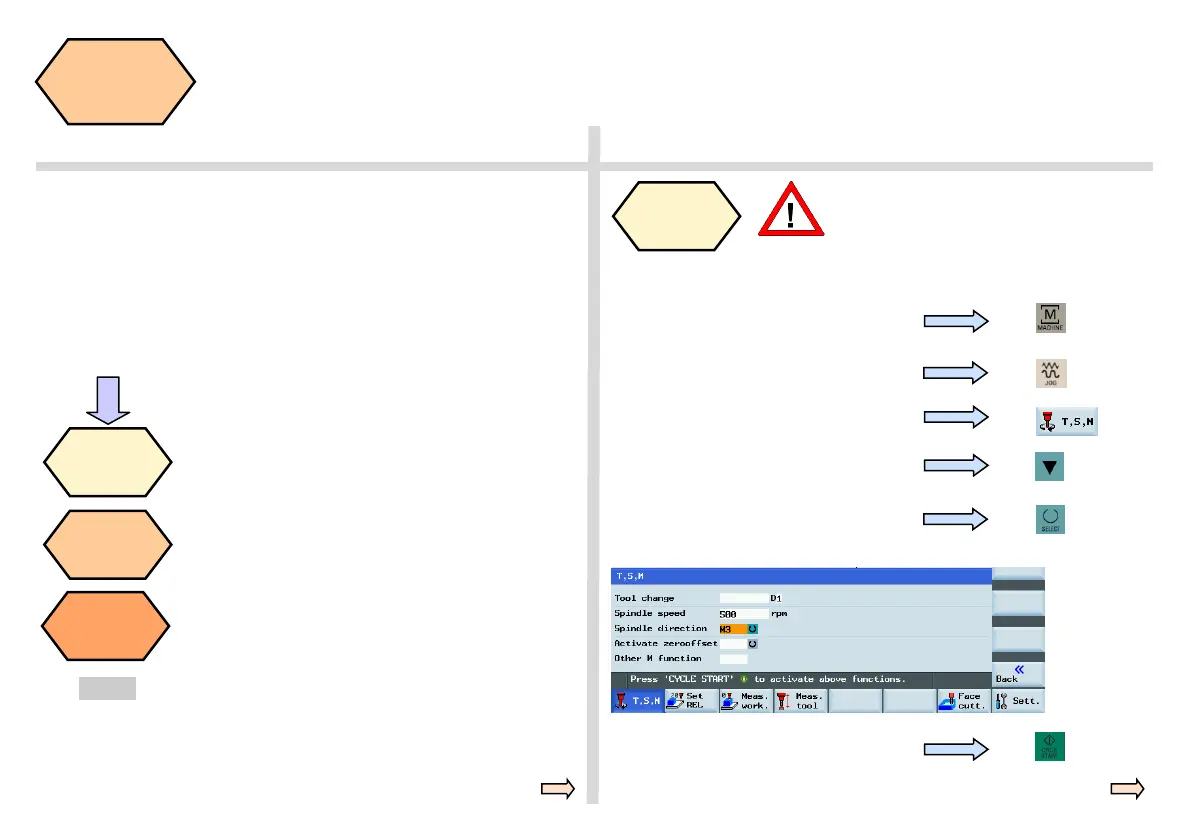

808D Page 23 Operating and Programming — Milling
Workpiece
Setup
s
Content
SEQUENCE
Unit Description
This unit describes how to set the workpiece offset and test the tool re-
sults.
Unit Content
Create
workpiece
offset
Manual
start
spindle
Manual
start
spindle
A tool must have been loaded into
the spindle.
Press the “Machine” key on the PPU.
Press the “T.S.M” SK on the PPU.
Enter “500” in “Spindle speed” on the PPU.
Press “CYCLE START” on the MCP.
Select “M3” as the “Spindle direc-
tion” using the “Select” key on the
PPU.
Press the “JOG” key on the MCP.
Before measuring, the spindle can be started as follows:
Test tool
offset
results
End
