B611 Page 4 840D/828D SINUMERIK Operate
Notes
Section 2
Simple programming example

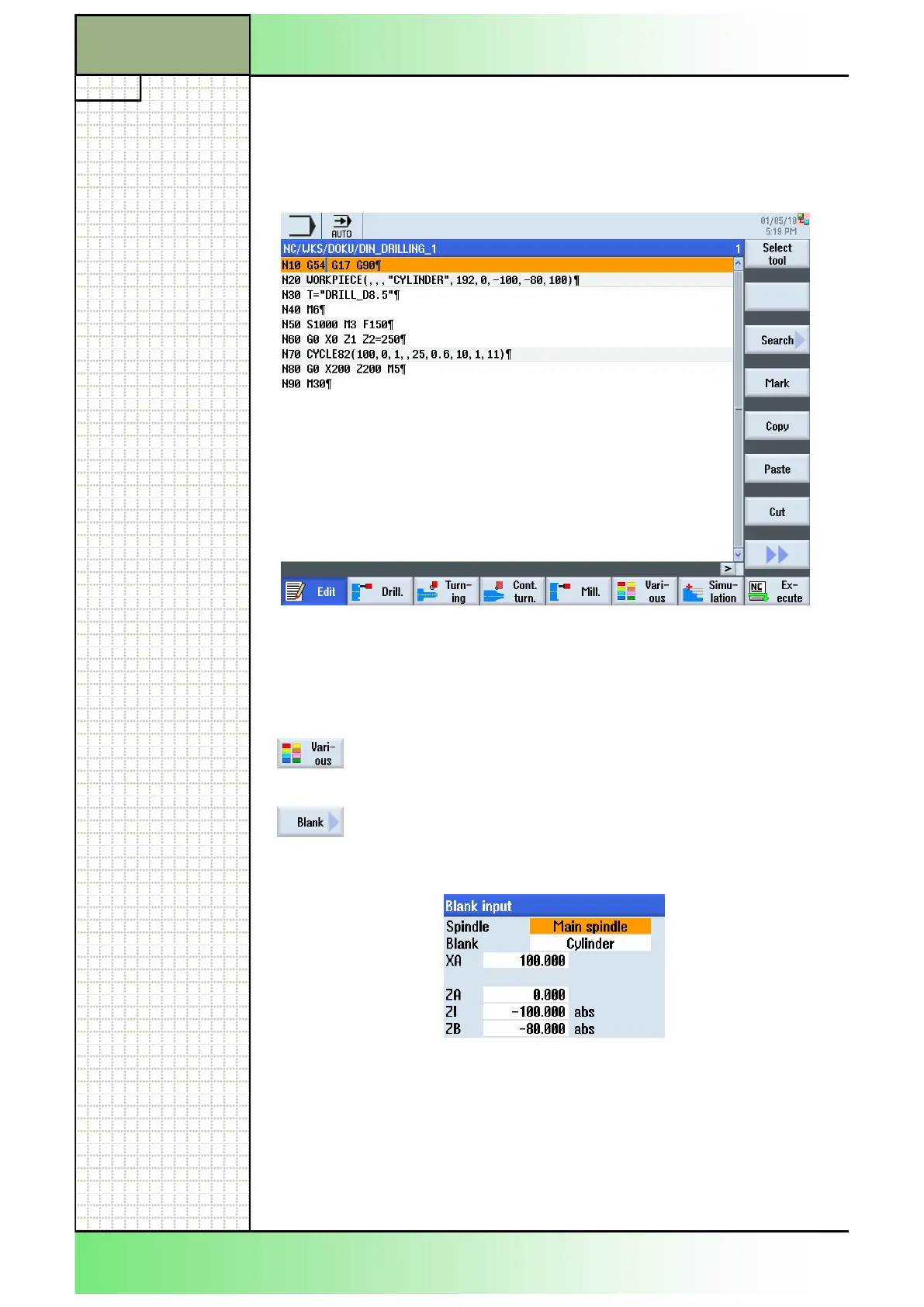

2.2 Programming example: Drilling
The following G code program, with the call up of a simple drilling cycle, is
to be programmed.
1. Program the first line of the program:
N10 G54 G17 G90
2. Insert now a blank for the simulation.
Press the HSK 1.6 “Various” to open the operating
area “Various”.
Press the VSK 1 “Blank” to open the input mask for
the blank.
3. Fill in the following parameters for the blank:
Confirm your inputs by pressing the VSK 8 “Accept”.
The following line will be inserted into the program:
N20 WORKPIECE(,,"","CYLINDER",192,0,-100,
-80,100)
