4. Now, insert a drill tool into the program.
Press the VSK 1.1 “Select tool“.
The tool list window opens.
Select the tool “DRILL_D8.5” by using the blue cur-
sor key on the keyboard.
Press the VSK 1.1 “To program”.
The following program line is inserted into the pro-
gram:
N30 T="DRILL_D8.5"
Optionally you can program the tool by hand.
5 Programm the following G code commands:
N40 M6
N50 S1000 M3 F150
N60 G0 X0 Z1 Z2=250
6.
Program the drilling-cycle “CYCLE82”.
For this, press the HSK 1.2 “Drill.” to open the tech-
nology “Drilling”.
Press the VSK 2 “Drilling Reaming”.
Press the VSK 3 “Drilling“. The input mask for the
drilling cycle “CYCLE82” opens.

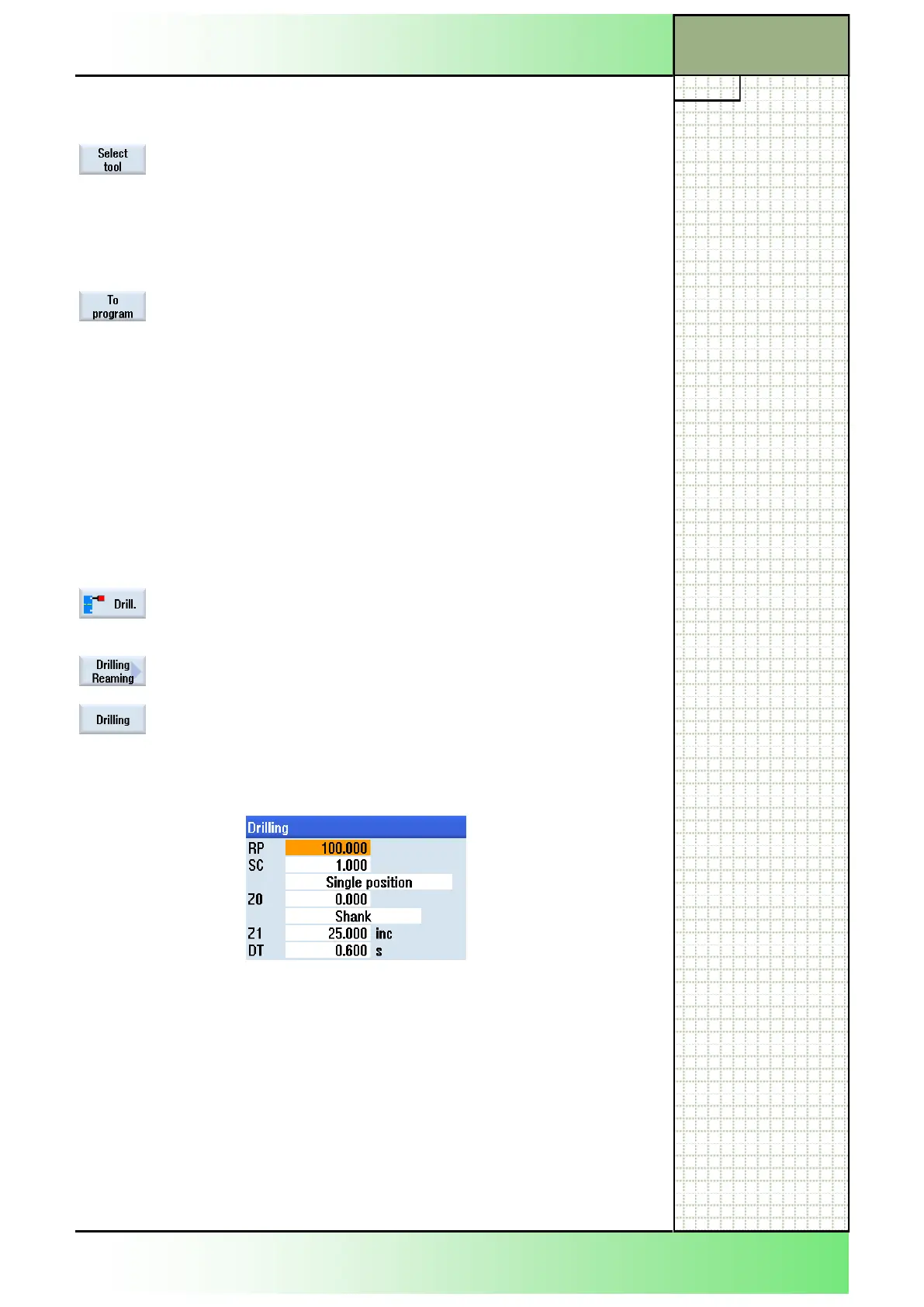

7. Insert the values into the parameter mask like dis-
played below:
The following program line will be inserted into the
program:
N70 CYCLE82(100,0,1,,25,0.6,10,1,11)
8. Programm the following G code commands:
N80 G0 X200 Z200 G5
9. Program the program end:
N90 M30
