9 Examples 11.92
9.2.8 FB 168 Acknowledge loading and unloading of spindle
Block data
Lib. No. : 10051
FBs to be loaded : FB 128, FB 130, FB 131, FB 132, FB 152
DBs to be loaded : None
Type of FB call : Conditional in FB 160
DBs to be input : None
Error messages : 05: Load acknowledge illegal
06: Unload acknowledge illegal
09: Error TO memory management
12: Error data transfer loading
(detailed error number in DB 150,
DW 244; cf. Section 5, FB 128)
13: No unassigned D number available
28: Spindle already occupied

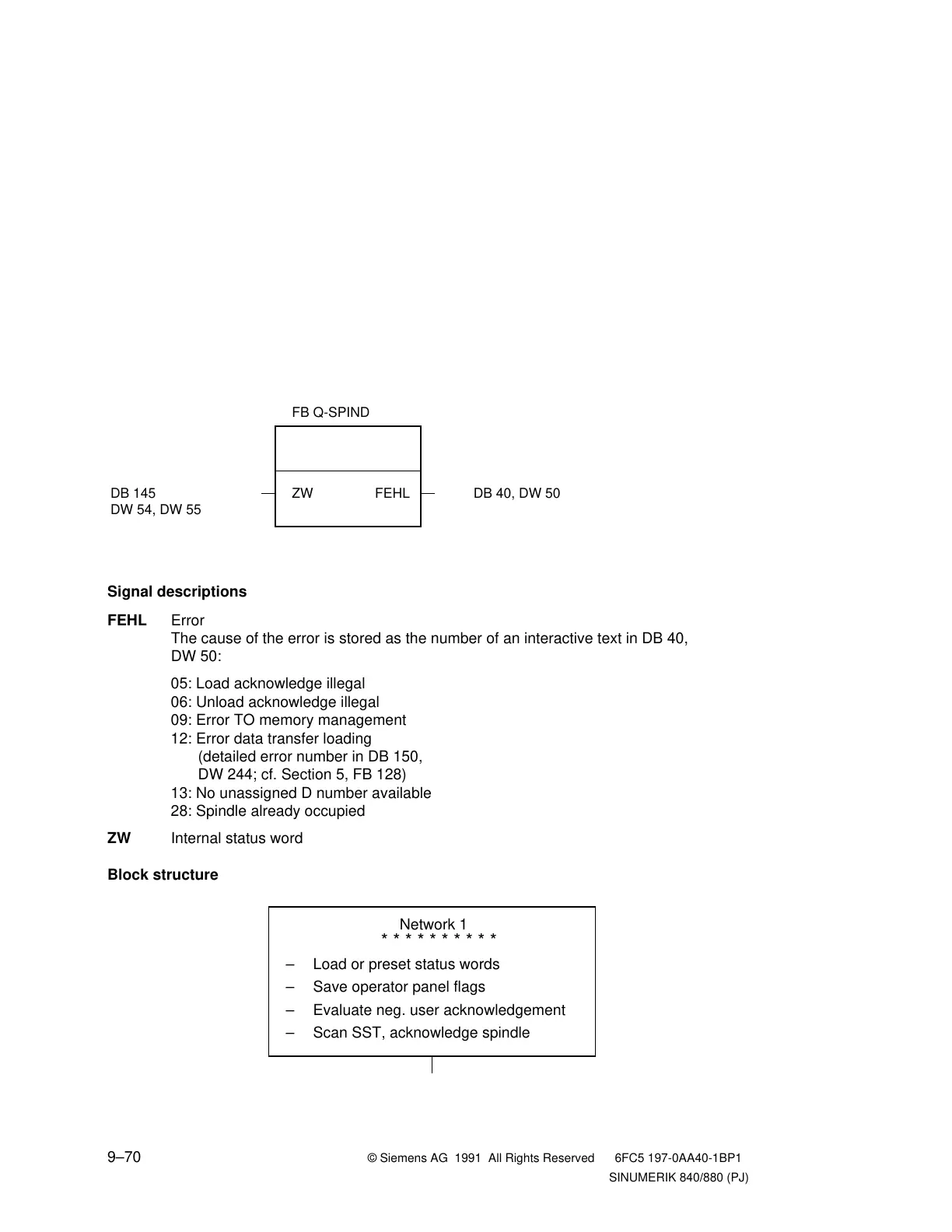

Block call FB 168
