01.91 9 Examples
9.2.19 FB 180 Enter additional cutting edges (from magazine assignment)
9.2.19 FB 180 W-SN-MAG
Enter additional cutting edges (from magazine
assignment)
Description
This function block generates an additional cutting edge for the selected tool. An additional
cutting edge can be generated only if
• the tool has only one offset per cutting edge and
• if the reference list for the current tool is not full.
If these conditions are met, an unassigned D No. is determined via the TO memory
management, the setup data of the tool updated, the D number in the TO memory deleted and
provided for indirect addressing in the R parameter R999. New display parameters are then
assigned to the display and the function is terminated.
In the case of an error, if the generation of another cutting edge is not permissible or if no
unassigned D numbers are available, a message appears on the NC screen and the block
function is terminated.
Block data
Lib. No. : 10050
FBs to be loaded : FB 130, FB 134, FB 180
DBs to be loaded : None
Type of FB call : Conditional in FB 160
DBs to be input : None
Error messages : 13: No unassigned D No. available
25: Number of offsets per cutting edge > 1
26: Reference list is full

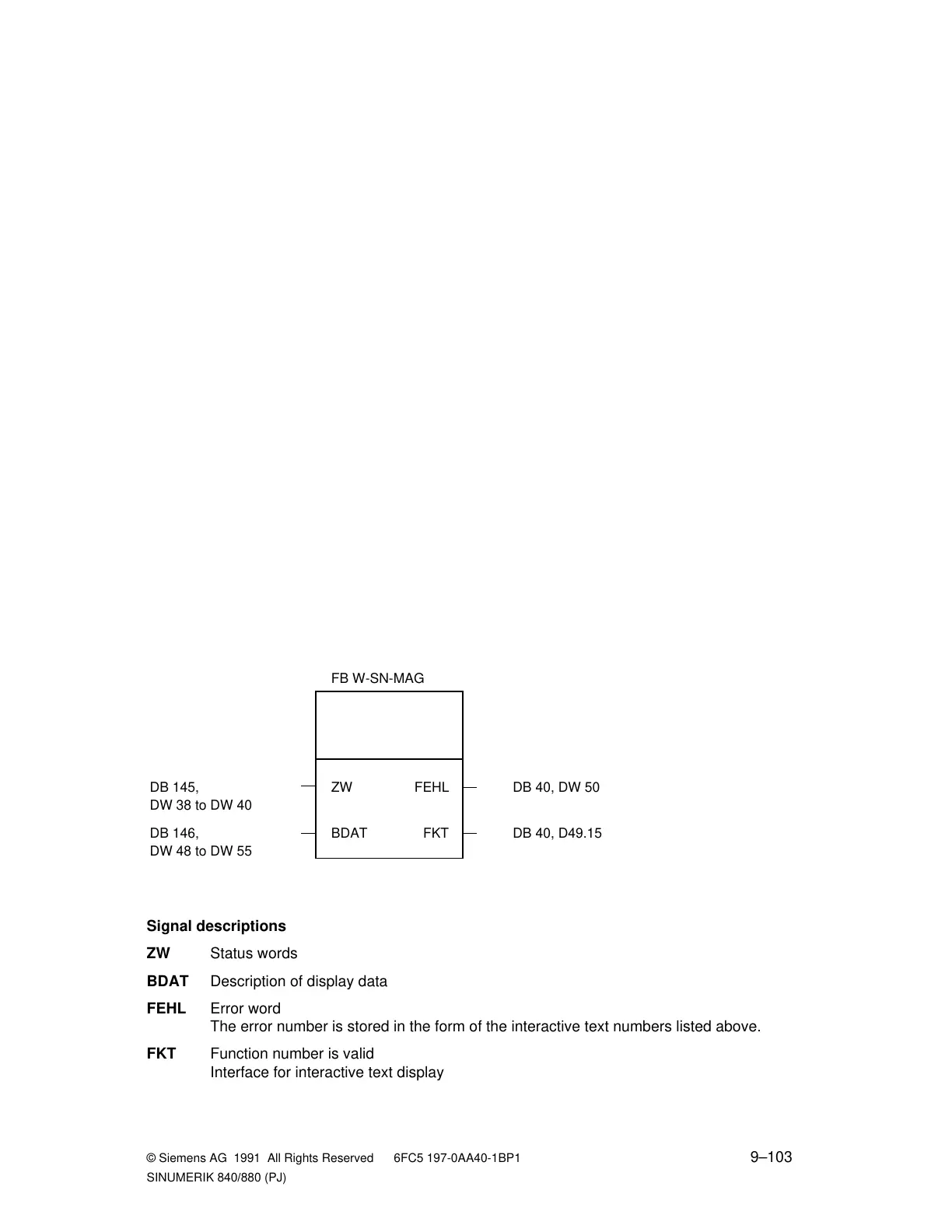

Block call FB 180
