4.2 Rear side



① PE/ground connection
∎ Power supply interface X10
③ Switch S2
④ Ethernet interfaces X20 port 1/ port 2
⑤ Handwheel connections X60/ X61
⑥ EMERGENCY STOP
⑦ 4x mounting space for 22.5mm element
② Interface of the customer-speci󹪝c inputs/outputs X516
② Interface of the customer-speci󹪝c inputs/outputs X515

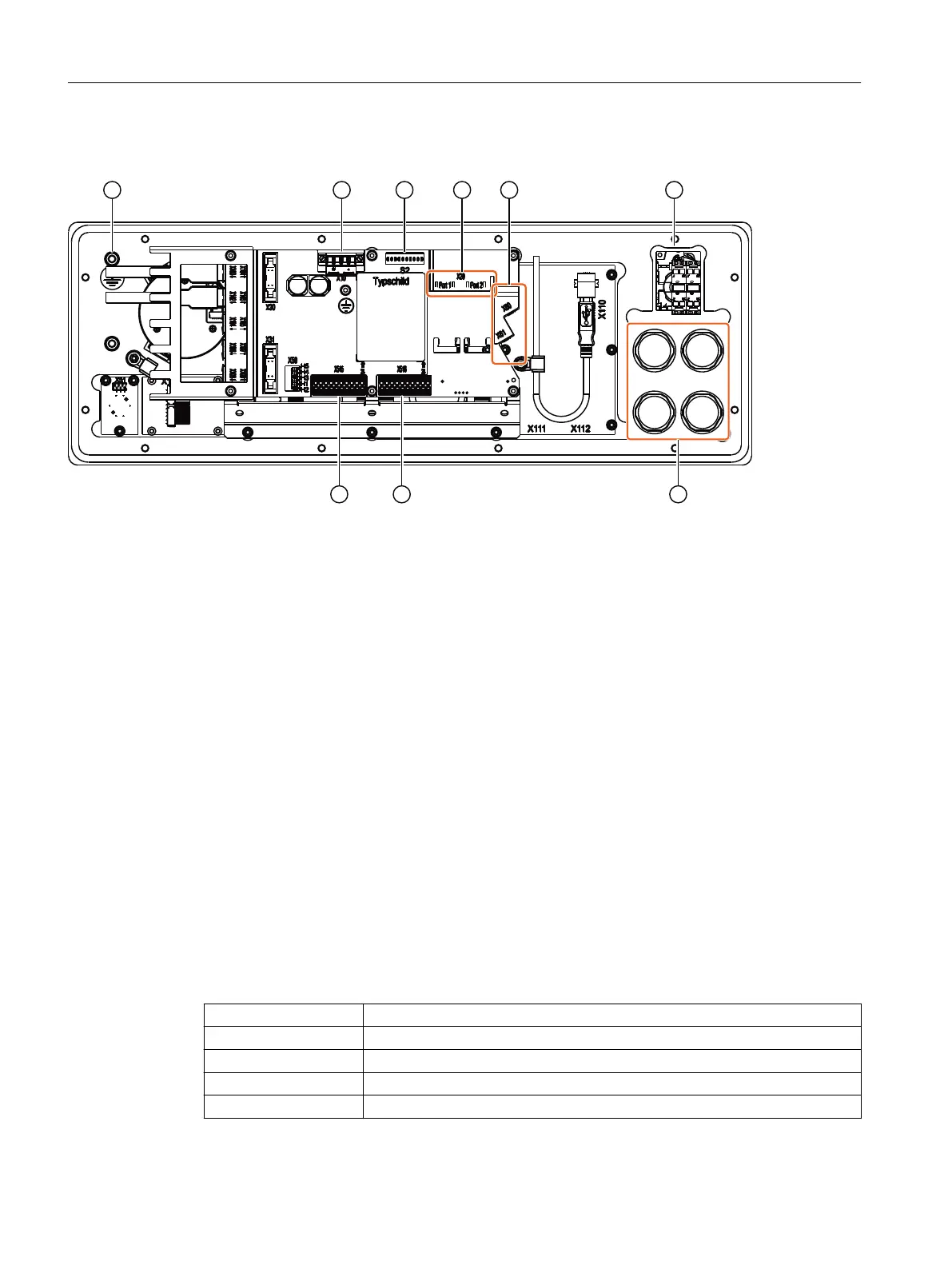

Figure4-2 Rear view of the MCP 1900.2
Handwheel connecting cable
The handwheel connecting cable is not included in the scope of delivery. You will 󹪝nd the article
numbers in Chapter "Spare parts/accessories".
4.3 Con󹪝guration
Input image
Slot 1 Base
Slot 2 Keypad 1 (operating mode block)
Slot 3 Keypad 2 (axis block)
Slot 4 Powerride 1 (feed)
Slot 5 Powerride 2 (rapid)
Operator control and display elements
4.3Con󹪝guration
ONE MCP Part 2: MCP 1900.2
18 Equipment Manual, 01/2023, A5E52559449B AA
