Connectable components
9.1 NX10/15
NCU 7x0.2
Manual, 02/2011, 6FC5397-0AP20-0BA0
93

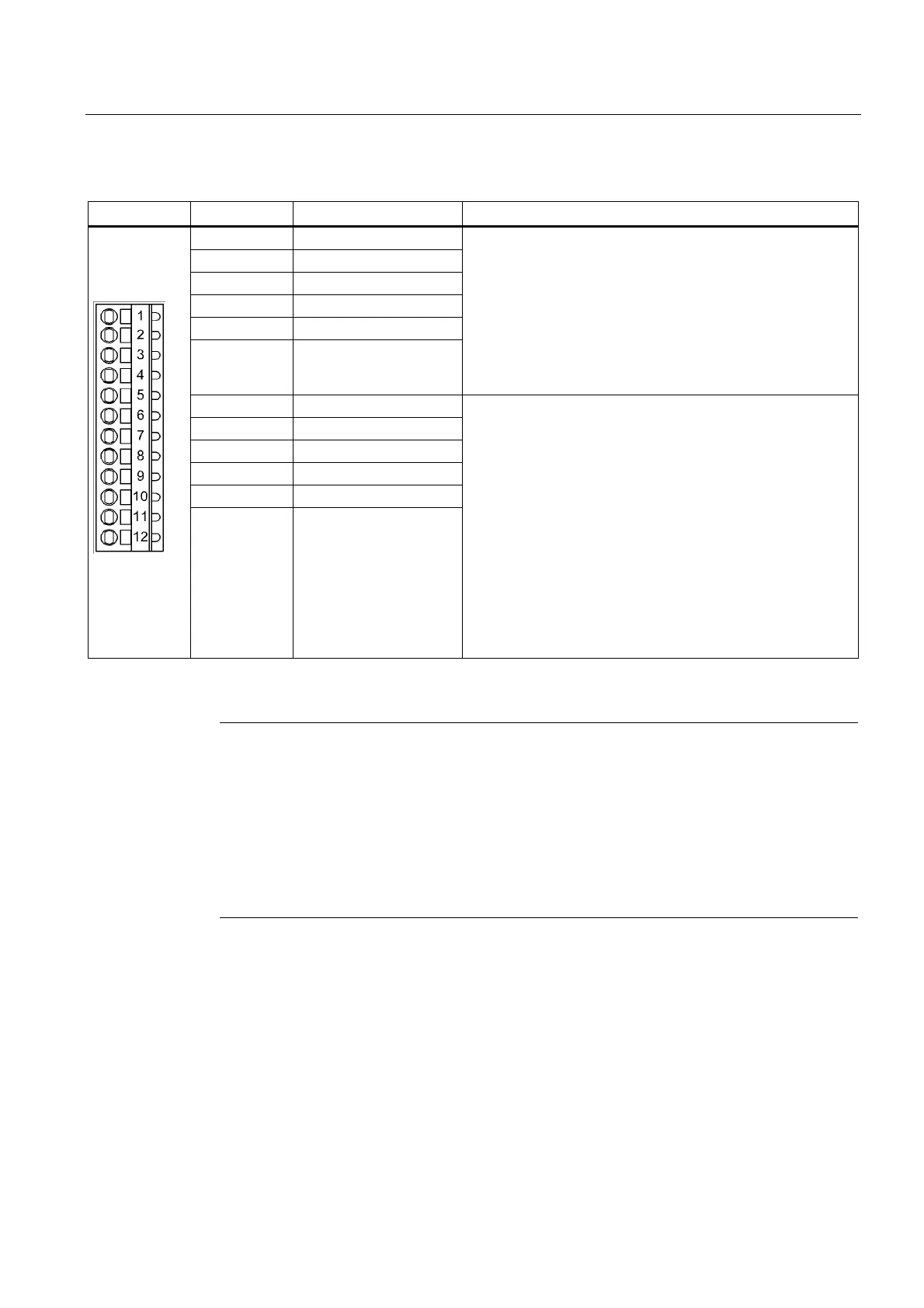

Table 9- 9 Pin assignment for X122
Terminal Designation
1)
Technical specifications
1 DI 0
2 DI 1
3 DI 2
4 DI 3
5 G1
6 G
Voltage: -3 V to 30 V
Typical current consumption: 10 mA at 24 V DC
Isolation: The reference potential is terminal G1
Level (incl. ripple)
High level: 15 V to 30 V
Low signal level: -3 V to 5 V
Signal propagation delays:
L → H: approx. 50 μs
H → L: approx. 100 µs
7 DI/DO 8
8 DI/DO 9
9 G
10 DI/DO 10
11 DI/DO 11
12 G
As input:
Voltage: -3 V to 30 V
Typical current consumption: 10 mA at 24 V DC
Level (incl. ripple)
High level: 15 V to 30 V
Low signal level: -3 V to 5 V
Terminal numbers 8, 10, and 11 are "rapid inputs"
Signal propagation delays for inputs/"rapid inputs":
L → H: approx. 50 μs/5 μs
H → L: approx. 100 μs/50 μs
As output:
Voltage: 24 V DC
Max. load current per output: 500 mA continuously short
circuit-proof
1) DI: digital input; DI/DO: Bidirectional digital input/output; G: Electronics ground G1: Ground reference
Note
An open input is interpreted as "low".
The "rapid inputs" can be used for position detection and as inputs of measuring inputs
depending on the terminal assignment used.
To enable digital inputs (DI) 0 to 3 to function, terminal G1 must be connected. This can be
done as follows:
Connect the coupled-motion ground reference of the digital inputs or provide a jumper to
terminal G. (Notice! This removes the galvanic isolation for these digital inputs.)
