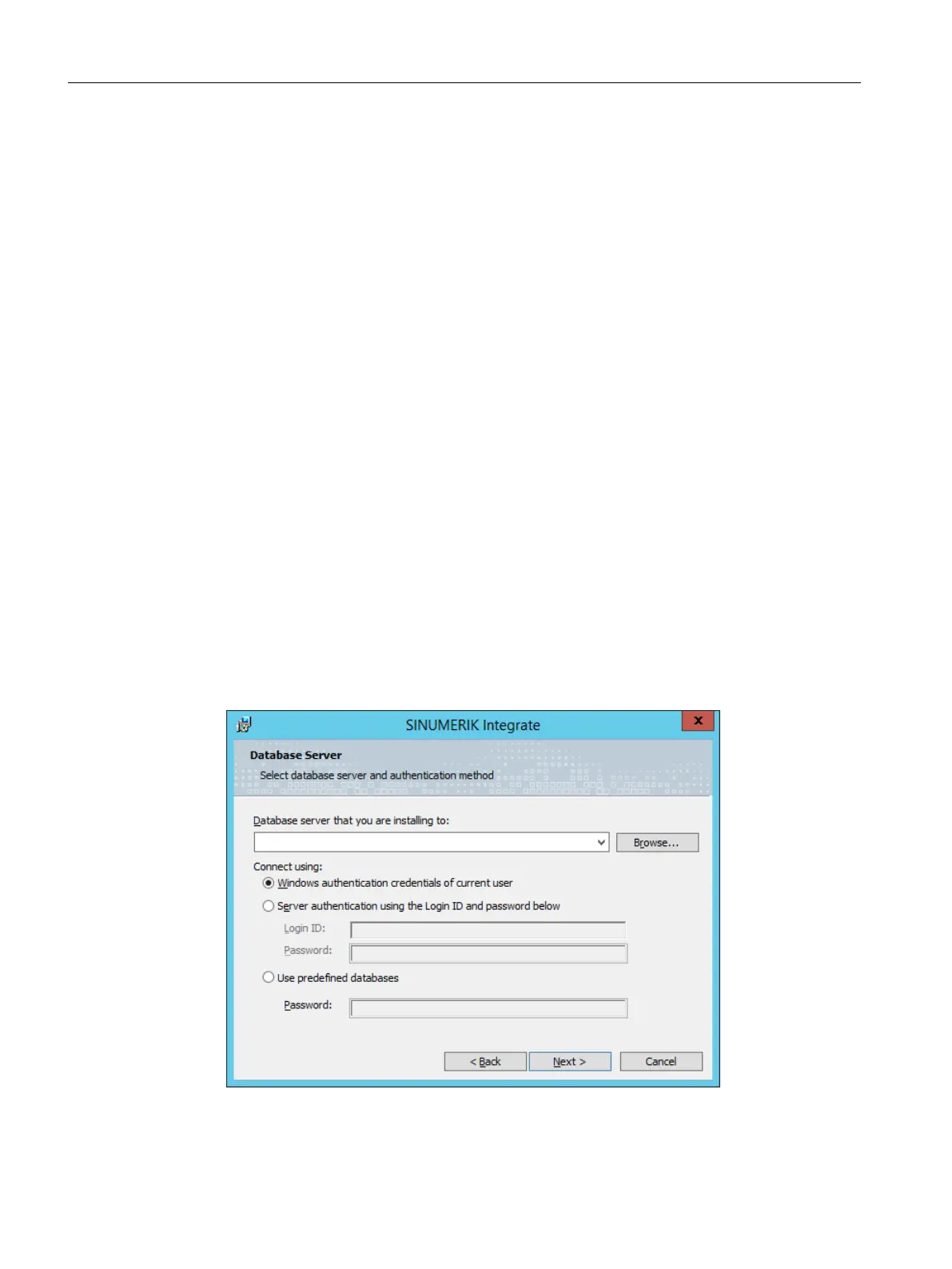

10.The "Database Server" window opens.
All data from "Manage MyResources" and "Optimize MyProgramming /NX-Cam Editor" use
a common database. Some tables of this database, e.g. the user administration and plant
hierarchy tables, are used by all applications.
The SQL database must be installed.
– Database server that you are installing to:
Select the SQL instance for installation.
The value can be entered in the form of
<IP address/hostname>\<instance name>
- OR -
Can be browsed.
- OR -
Selected from the drop-down list.
– Connect using via the following three options:
Select the "Windows authentication of the current user" connection.
- OR -
Activate the "Server authentication using the login ID and password below" option button.
Enter the login ID of any SQL user with system administrator rights.
- OR -
Select the "User predefined databases" option button.
With this option it is possible to use databases created manually prior installation. In this
case the setup will not create additional databases.
Make sure that all the required databases and login users are created.
Additional information is provided in chapter:
For SQL Server 2012: Create databases and user in SQL Server 2012 (Page 44)
- OR -
For SQL Server 2016: Create databases and user in SQL Server 2016 (Page 60)
By clicking "Next", the setup verifies whether a connection can be established to the
predefined databases with the provided password.
Installing/uninstalling/modifying the SINUMERIK Integrate server
4.3 Installing the server setup
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
82 Installation Manual, 12/2019, A5E44672080B AE
