3 Operation
3.3 Configuring Mode (Parameterization and Configuring Mode)
3.3.1 Parameterization Mode onPA (Online Parameters)
Manual
136
SIP ART DR24 6DR2410
C79000-G7476-C153-03
3.3.1 Parameterization Mode onPA (Online Parameters)
In the parameterization mode onPA the parameters are arranged whose effect on the process
when they are changed can be observed. The other parameters are arranged in the configuring
modes oFPA and CLPA (see chapter 3.3.3, page 145 and 3.3.4, page 148).
The online parameters are listed in table 1. The parameters against a white background (repeti-
tion rate dr for the digital displays and the switchable decadic (Pd) and linear parameters (PL)
are always accessible. The parameters against a gray background are the private parameters
of the complex functions and only appear when the functions are defined in FdEF.
dd1
dd2
dA2
L14
Parameter
value
dA1
Adjustment parameter value (with fast
action)
dark for switch-
able parameters,
name of the function for
private parameters
Parameter name
dr ... tE
tA1
tA2
tA3
tA4
tA5
tA6
tA7
dd3 L12
L13
L1
L2
L4
L3
L5
L6
L7
L9
L8
L10
L11
Exit LED: flashes
Exit key↗: return to process
preselection mode after onPA
Enter LED: off
Enter key: no function
Adjustment parameter name and
function name
All unnamed control and display elements have the wired function

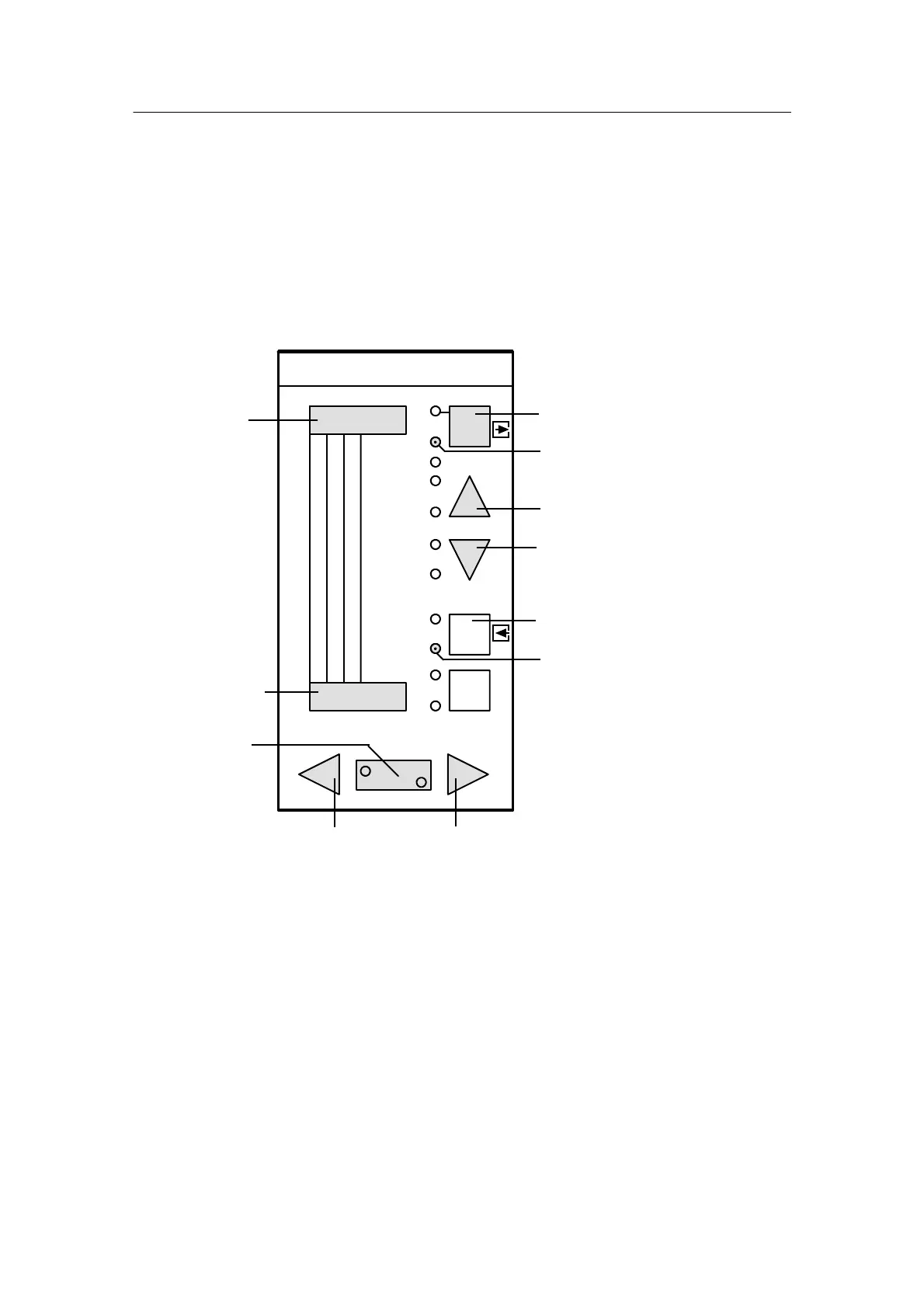

Figure 3-4 Control and display elements in the parameterization mode onPA
