[dwocpki1-080213-01.tif, 1, en_US]

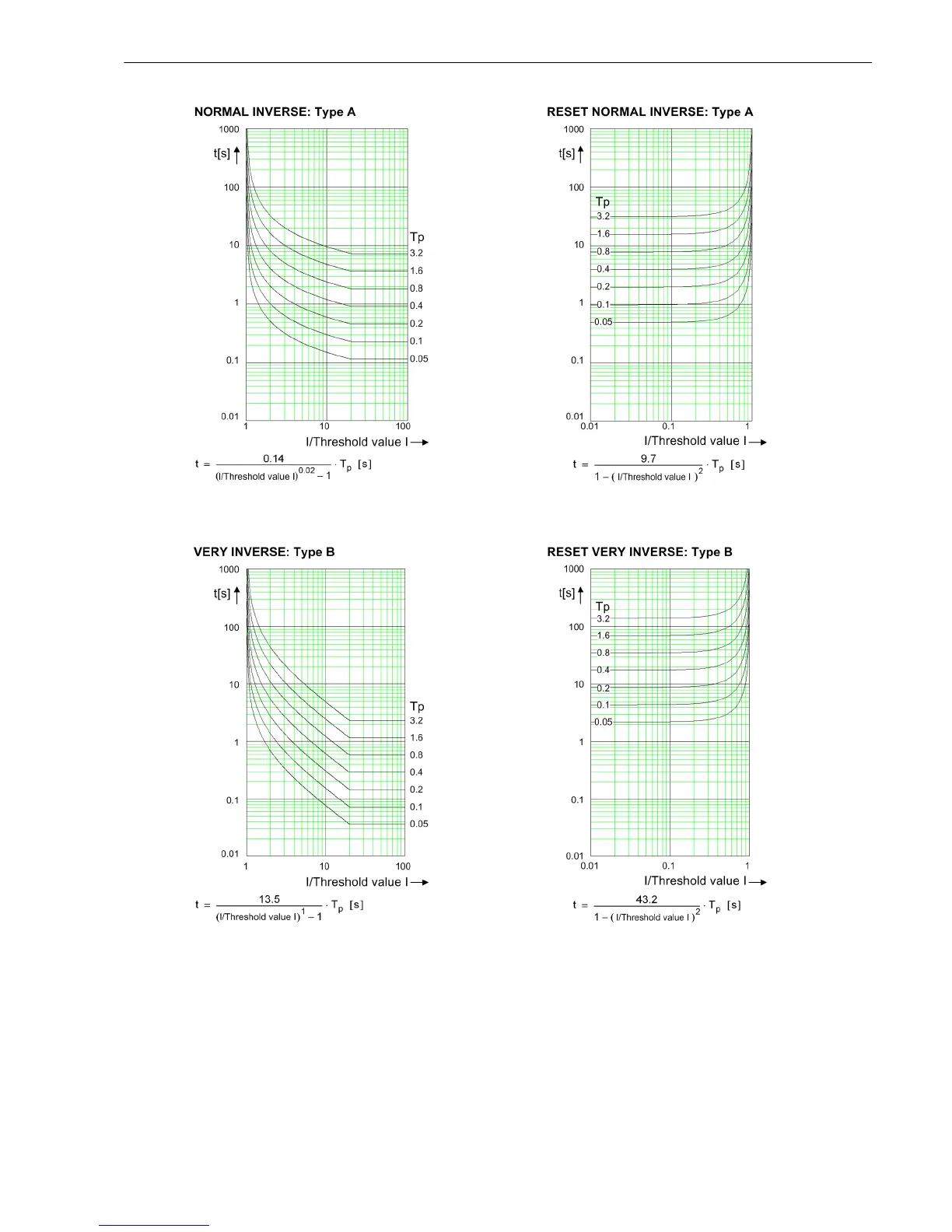

Figure 11-1
Operate Curves and Dropout-Time Characteristic Curves According to IEC
Technical Data
11.16 Stage with Inverse-Time Characteristic Curve
SIPROTEC 5, Low-Impedance Busbar Protection 7SS85, Manual 581
C53000-G5040-C019-6, Edition 06.2016
