[dwocpka2-080213-01.tif, 2, en_US]

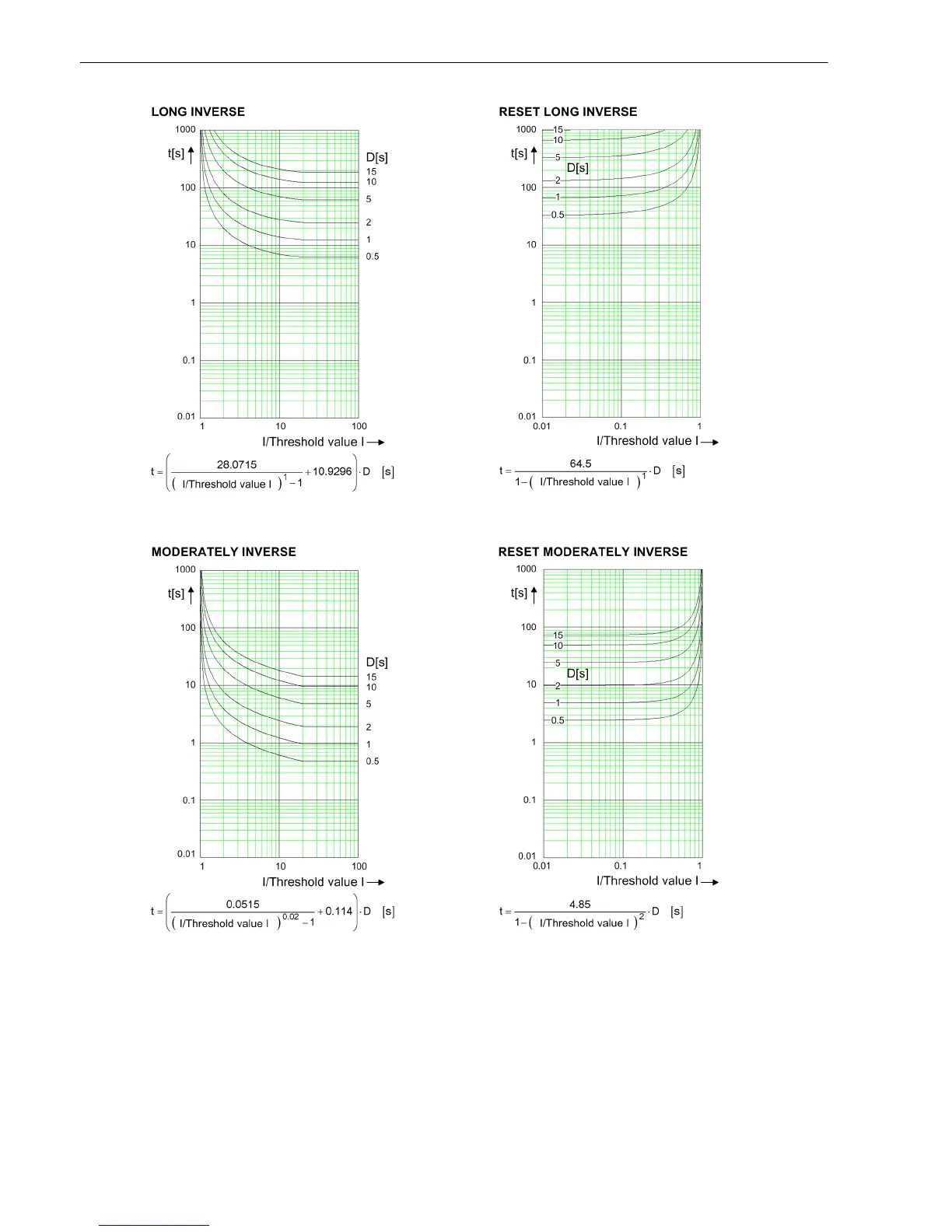

Figure 11-4
Operate Curves and Dropout-Time Characteristic Curves According to ANSI/IEEE
Technical Data
11.16 Stage with Inverse-Time Characteristic Curve
584 SIPROTEC 5, Low-Impedance Busbar Protection 7SS85, Manual
C53000-G5040-C019-6, Edition 06.2016
