[dwocpki1-080213-01.tif, 1, en_US]

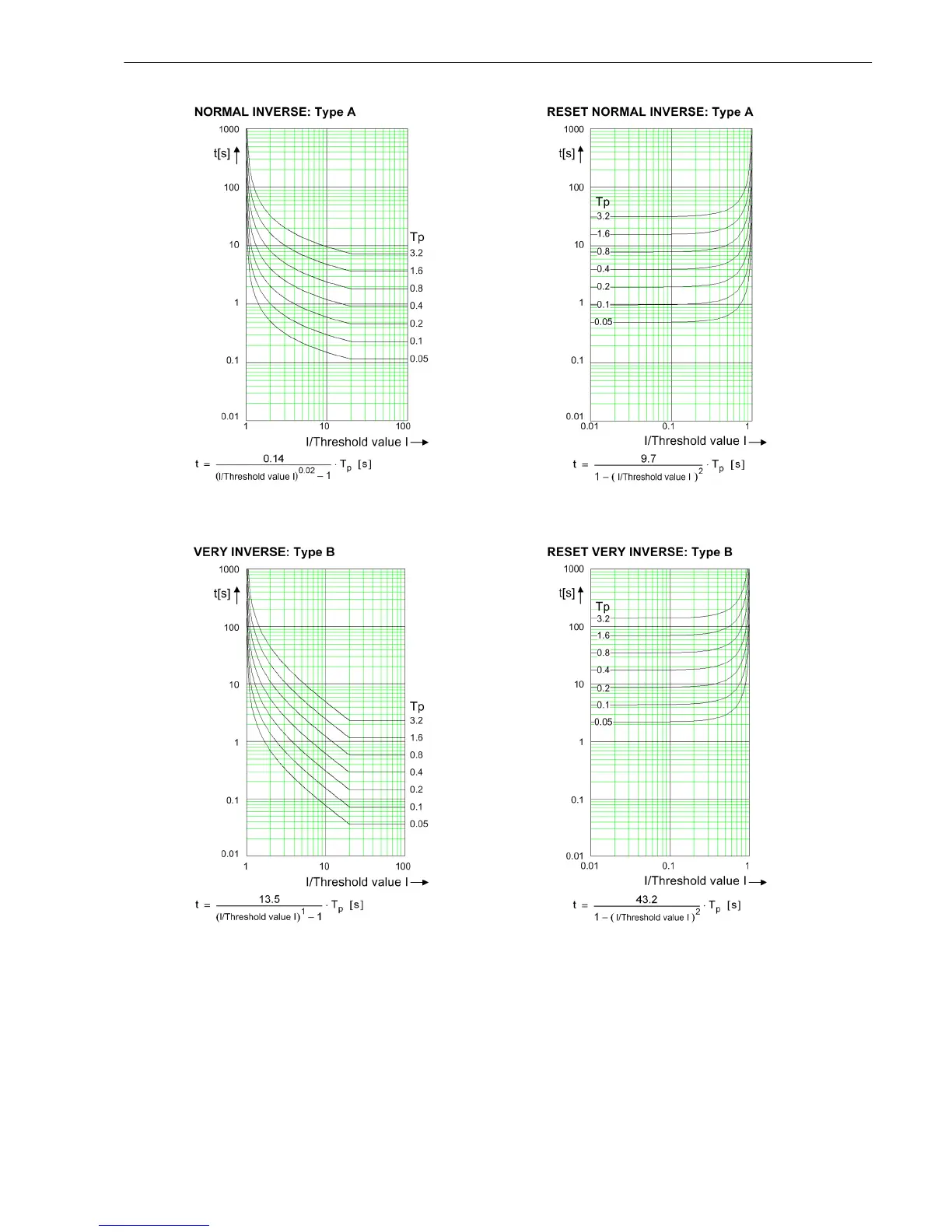

Figure 11-7
Operate Curves and Dropout-Time Characteristic Curves According to IEC
Technical Data
11.18 Stage with Inverse-Time Characteristic Curve
SIPROTEC 5, Low-Impedance Busbar Protection 7SS85, Manual 591
C53000-G5040-C019-6, Edition 06.2016
