Assembly Dimensions
Flush-Mounting Device
[dw_z1_1-3, 2, en_US]
Figure 6-1

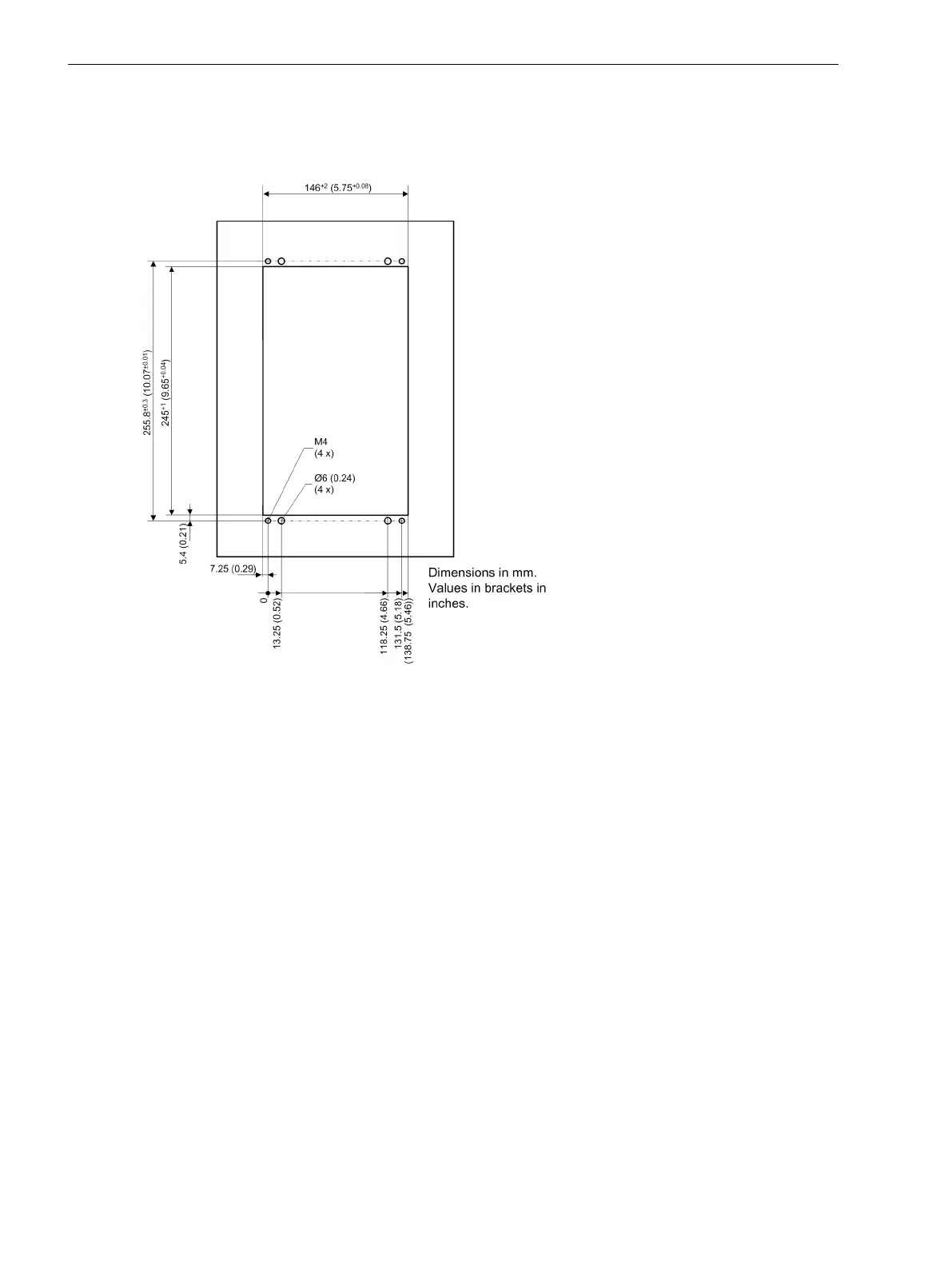

Cut-Out Widths and Drilling Pattern – 1/3 Device, 1st Device Row
6.14
Technical Data
6.14 Assembly Dimensions
232 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-F, Edition 06.2019
