Siemens SIPROTEC 5 Hardware Description Manual

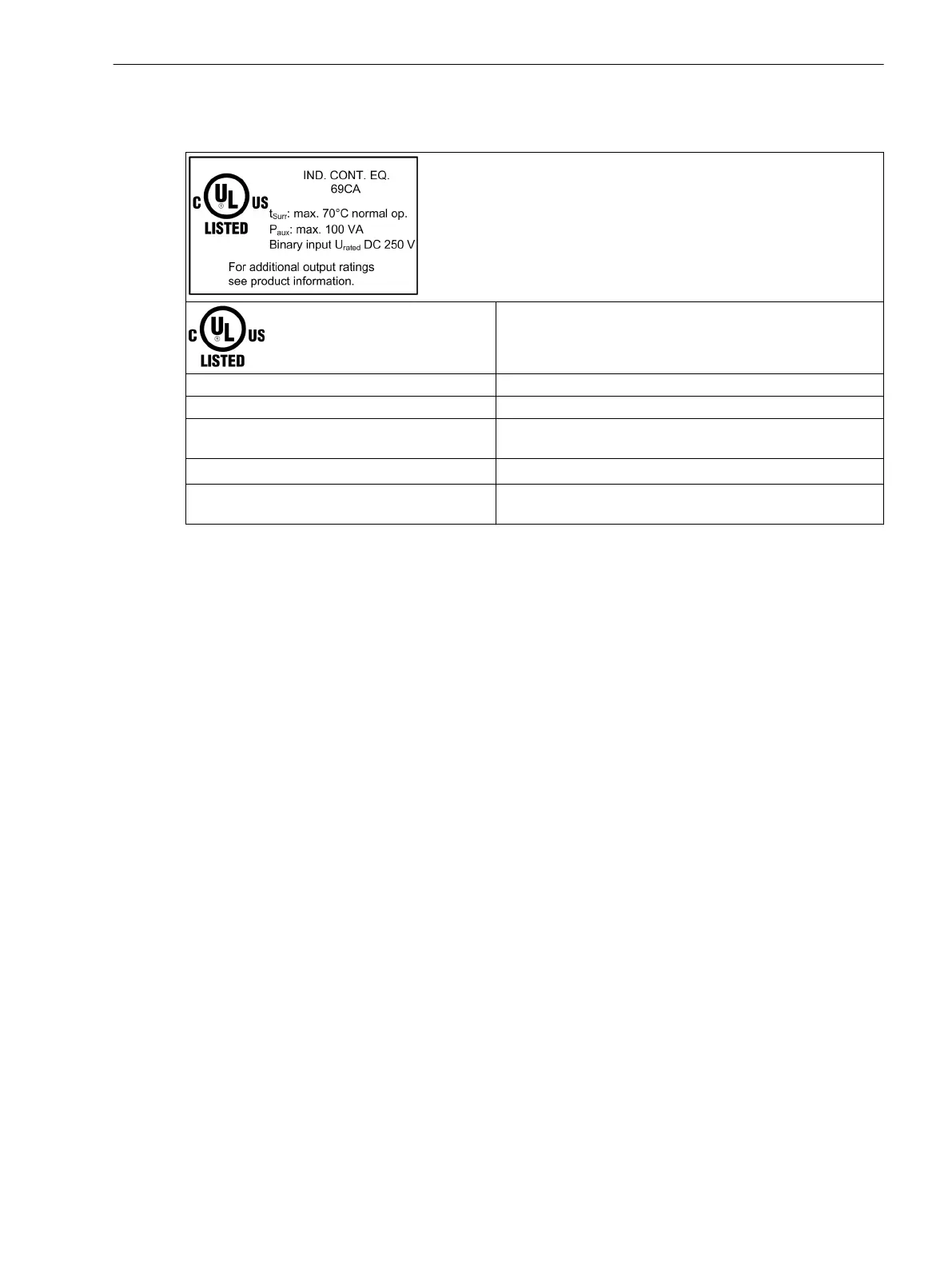

Name Plate, UL Approval, Base Module and 1/3 Base Module
UL approved for Canada and the USA
IND. CONT. EQ. Industrial controller
69CA Approval number
t
Surr
: max. 70 °C normal op. The ambient temperature must not exceed 70 °C or 158 °F
during normal operation.
P
aux
: max. 100 VA Maximum power consumption of the device
For additional output ratings see product infor-
mation
For additional output ratings see Product information.
6.17
Technical Data
6.17 Name Plate, UL Approval, Base Module and 1/3 Base Module
SIPROTEC 5, Hardware Description, Manual 255
C53000-G5040-C002-F, Edition 06.2019

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
