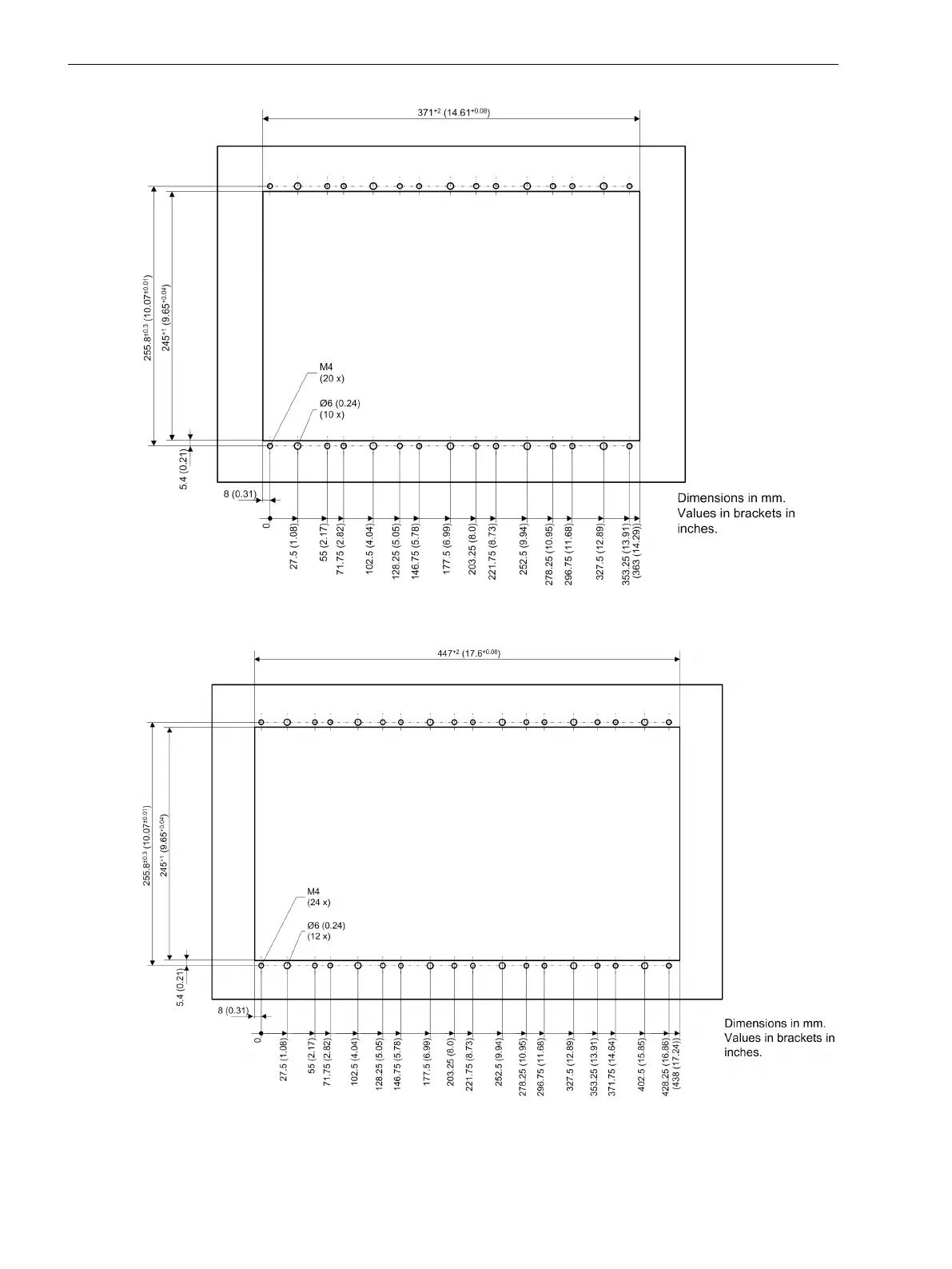

Figure 6-9
Cut-Out Widths and Drilling Pattern – 5/6 Device, 2nd Device Row
[dw_z2_6-6, 3, en_US]
Figure 6-10
Cut-Out Widths and Drilling Pattern – 1/1 Device, 2nd Device Row
