Surface-Mounted Devices with Integrated On-Site Operation Panel (Modular Device)
[dwosopin-070211-01.tif, 3, en_US]

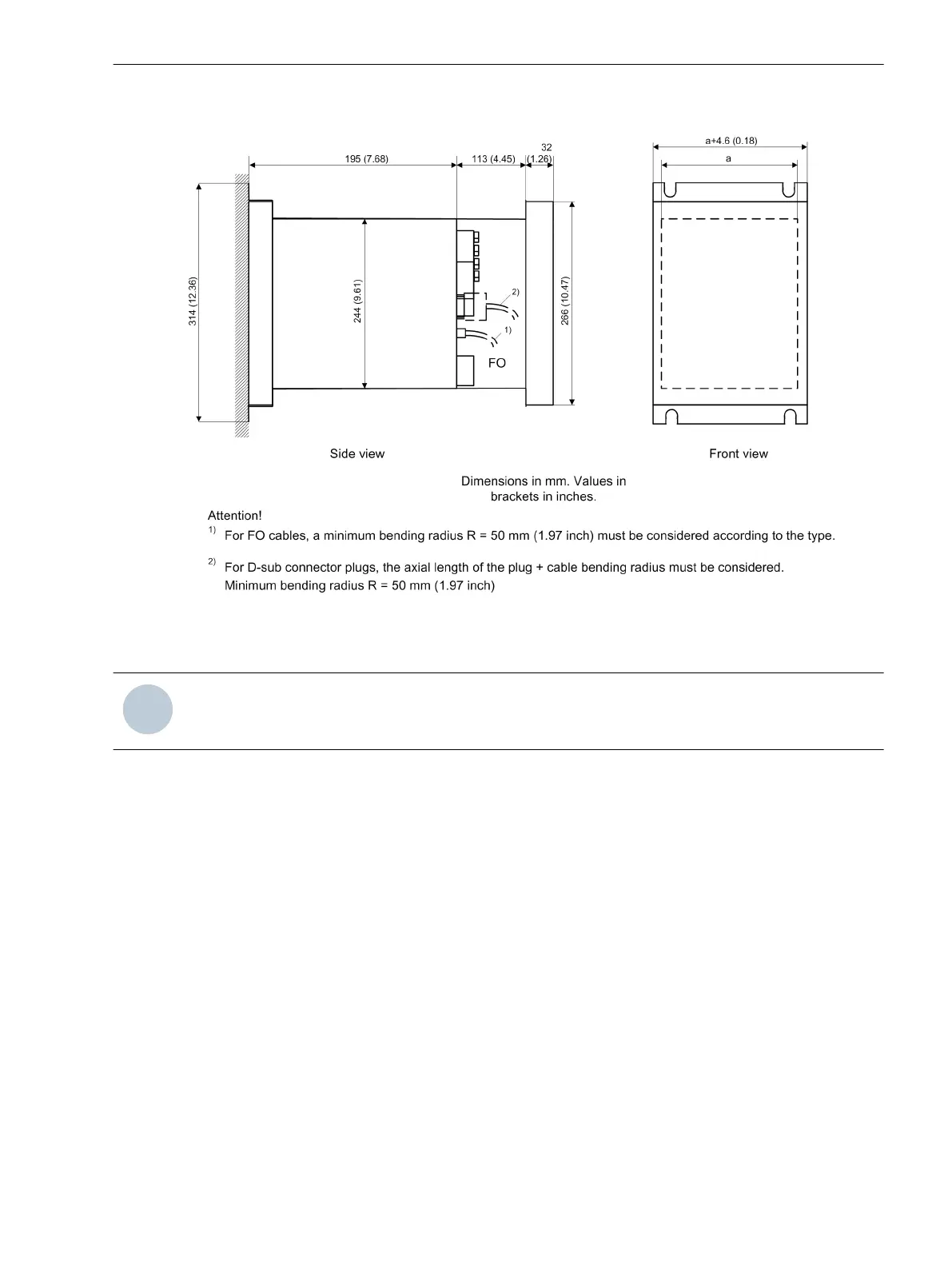

Figure 6-14
1/3 Surface-Mounted Device with Integrated On-Site Operation Panel, Dimensions in the Side
and Front Views
NOTE
For surface-mounted devices, make sure that the drillings fit for a screw of the size M6.
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 241
C53000-G5040-C002-F, Edition 06.2019
