Siemens SIPROTEC 7XR81

Block Diagram

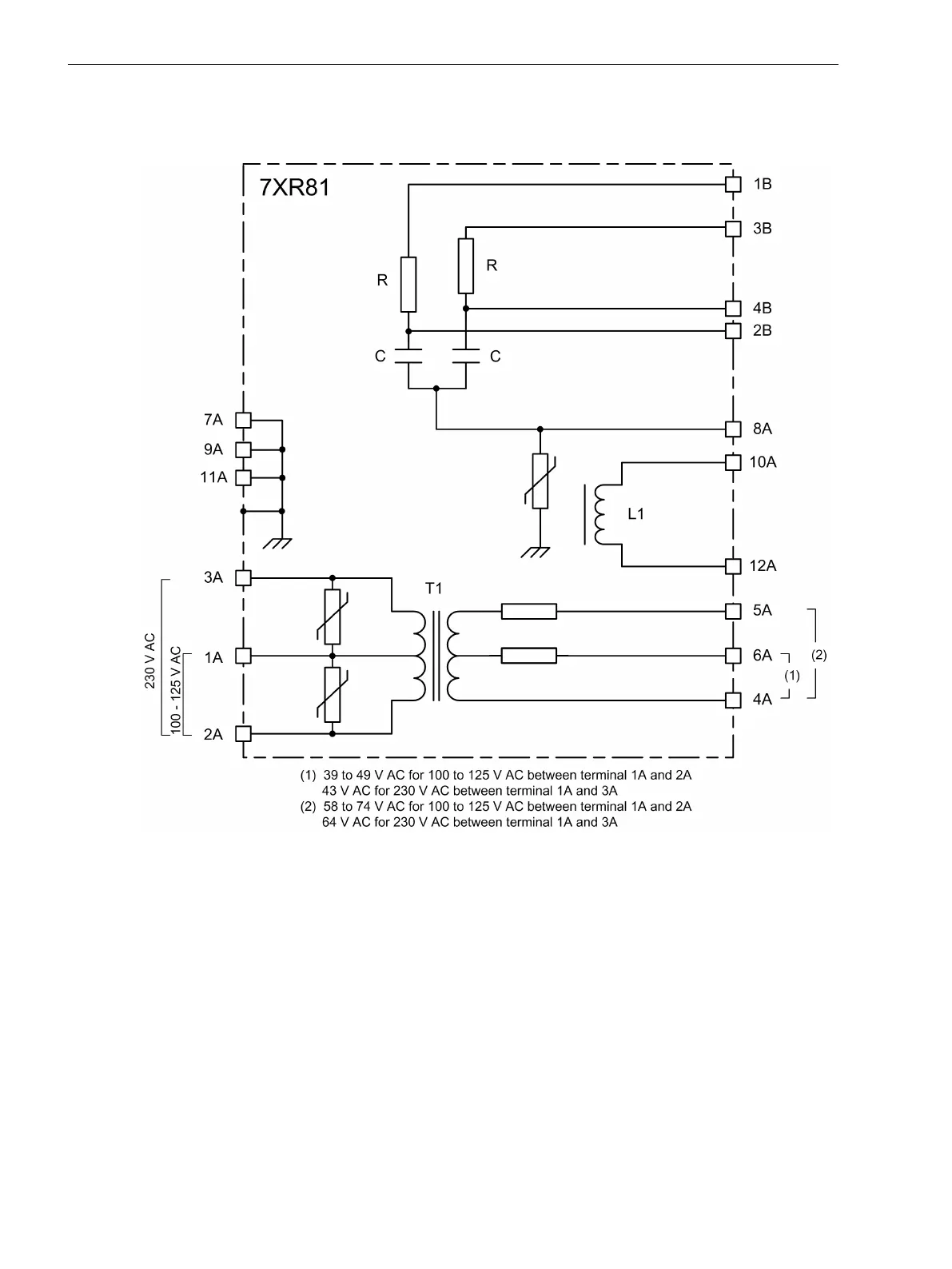

[dw_7xr81 block diagram, 1, en_US]
Figure 1-1
Block Diagram of the 7XR81
1.1
7XR81 – Coupling Device for Rotor Ground-Fault Protection
1.1 Block Diagram
12 SIPROTEC, Coupling Units for Generator Protection, Manual
C53000-H5040-C072-1, Edition 09.2018
