Block Diagram (new 7XR8004)

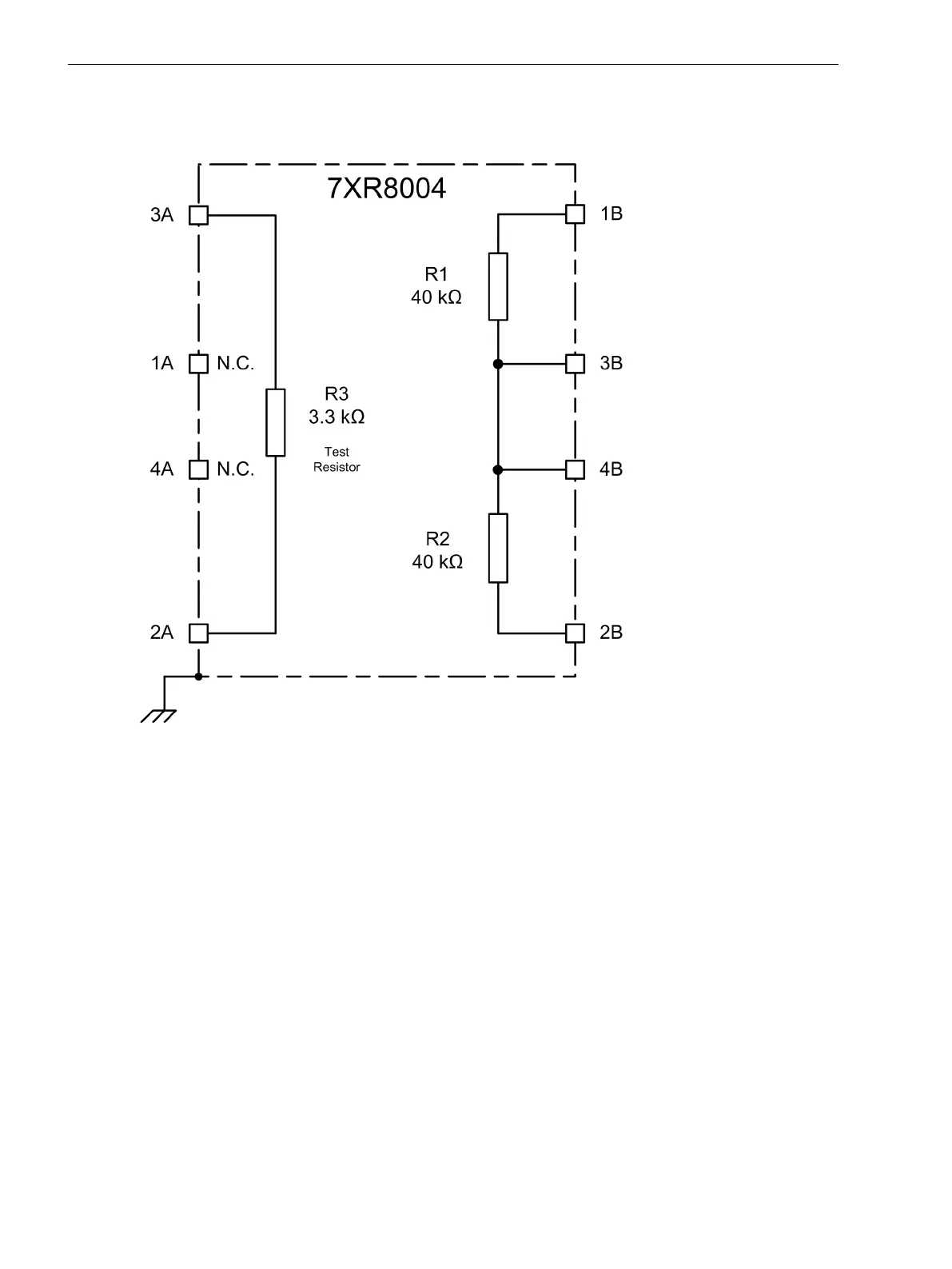

[dw_7xr8004 block diagram, 1, en_US]
Figure 2-1
Block Diagram of the 7XR8004
2.1
7XR8004 – Resistor Coupling Unit for 7XT71
2.1 Block Diagram (new 7XR8004)
26 SIPROTEC, Coupling Units for Generator Protection, Manual
C53000-H5040-C072-1, Edition 09.2018
