Panel Flush Mounting
[dw_7xr87 dimensions flush, 1, en_US]

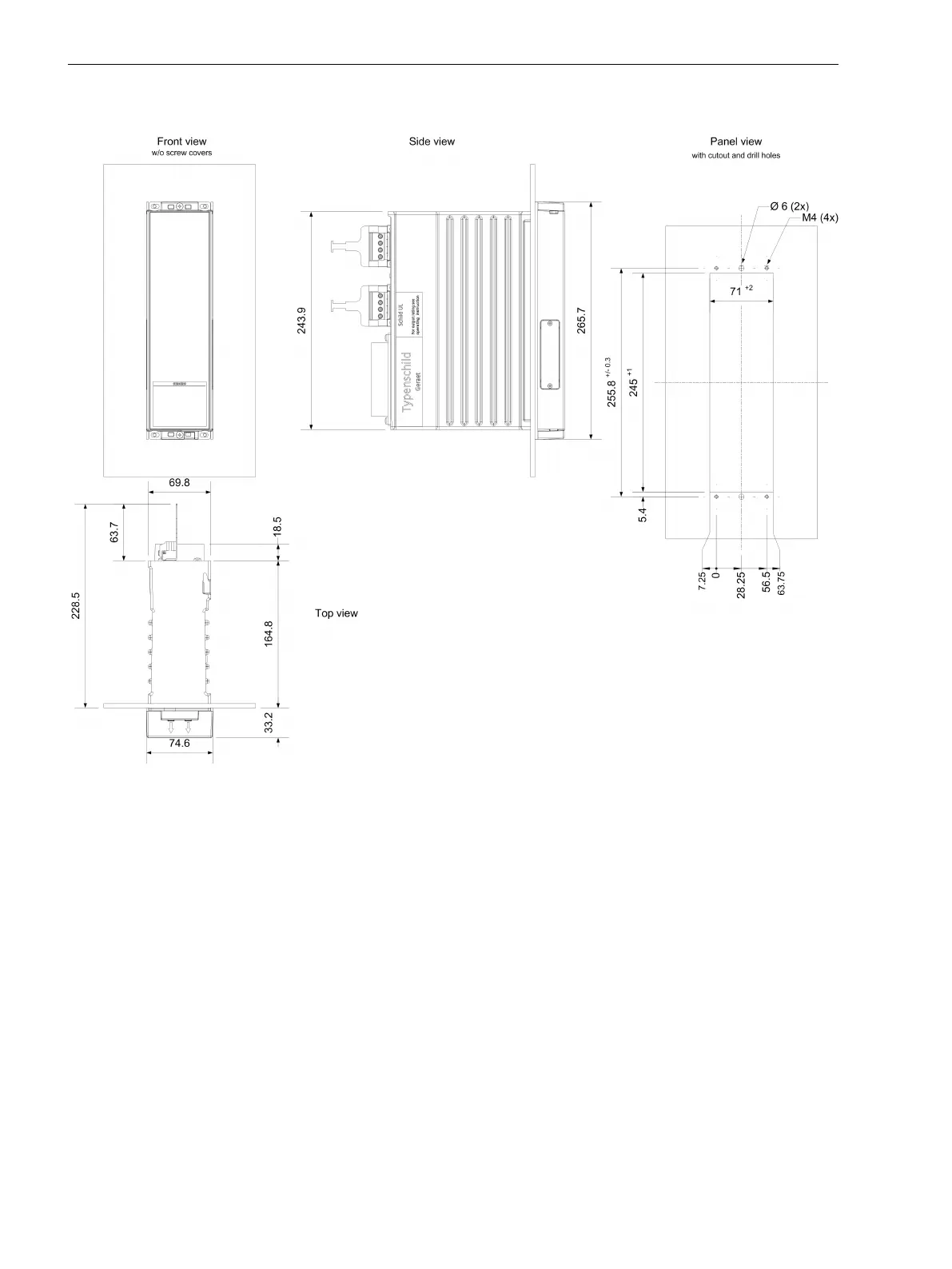

Figure 4-7
7XR87 Flush Mounting Dimensions
4.3.2.2
7XR87 Voltage Divider for Excitation Voltage
4.3 Construction Properties
54 SIPROTEC, Coupling Units for Generator Protection, Manual
C53000-H5040-C072-1, Edition 09.2018
