SIRIUS 3RT2 contactors/contactor assemblies
2.4 Configuration
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
147





0D[LPXPFDEOHOHQJWK>P@LQWKHFDVHRIGLVFRQQHFWLRQYLD
FRQWLQXRXVDFWXDWLRQRQ$&+]RSHUDWHGFRQWDFWRUV
9$
+ROGLQJSRZHU>9$@
&DEOHOHQJWK>P@










P
P
1 24 V
2 42 V
3 110 V
4 230 V
5 400 V

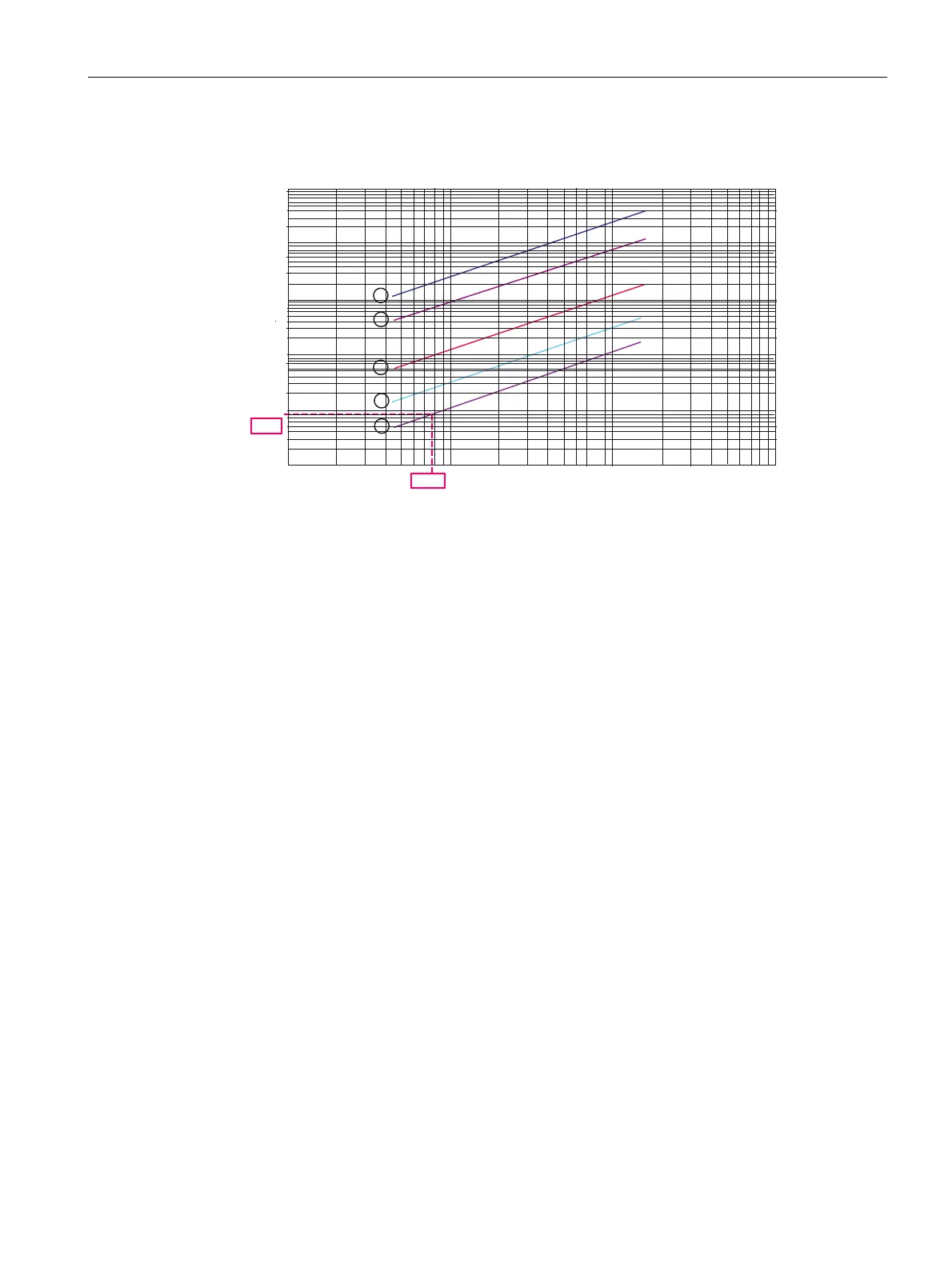

Figure 2-21 Graphical representation, switch-off - Example
Example for 3RT202. contactor:
● AC-operated
● 8.5 VA holding power
● Control voltage 400 V AC
● Maximum permissible control cable length: 95 m
