SIRIUS 3RT2 contactors/contactor assemblies
2.7 Accessories
SIRIUS Innovations
184 System Manual, 01/2011, A8E56203870002-03
Mounting on mounting plate

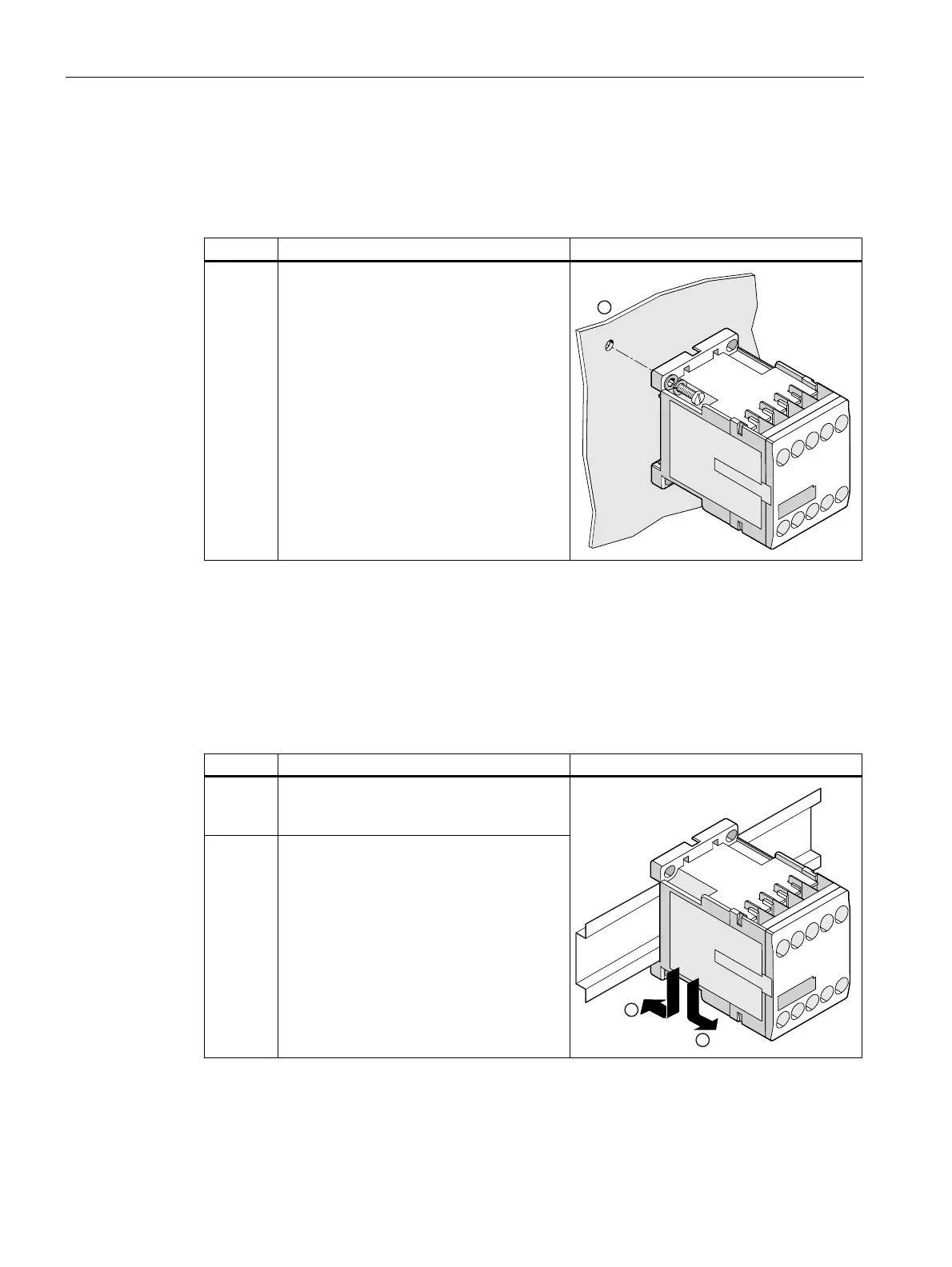

The illustrations below depict screw mounting for sizes S00 and S0:
Table 2- 36 Screw mounting (sizes S00 and S0)
Step Operating instruction Image
1 Using two M4 screws (maximum tightening
torque 1.2 to 1.6 Nm), plain washers, and
spring washers, screw the OFF- delay
device tight into the designated drill holes
diagonally.
Snapping onto DIN rail (snap-on mounting)
OFF-delay devices of sizes S00 and S0 can be snapped onto a 35 mm DIN rail.
The illustrations below show how to snap OFF-delay devices onto/off a DIN rail:
Table 2- 37 Mounting/disassembling sizes S00 and S0 (snap-on mounting)
Step Operating instruction Image
1 Position the device on the top edge of the
DIN rail and press down until it snaps onto
the bottom edge of the DIN rail.
2 To disassemble the device, press it down,
pushing against the mounting springs, and
swivel the device to remove it.
