SIRIUS 3RU2/3RB3 overload relays
5.9 Accessories
SIRIUS Innovations
526 System Manual, 01/2011, A8E56203870002-03

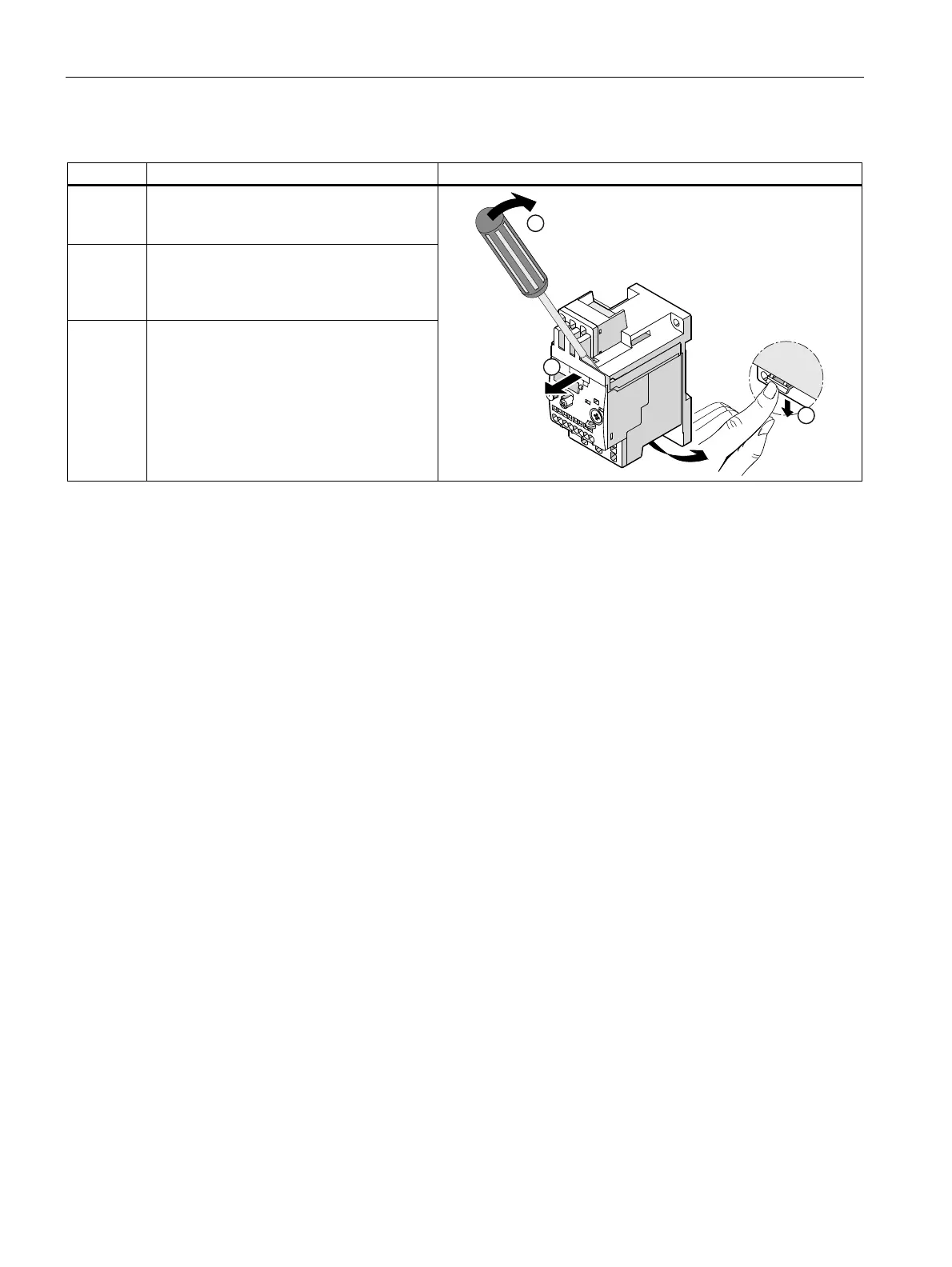

Table 5- 23 Disassembling the terminal support (spring-loaded connection system)
Step Operating instruction Figure
1 Release the overload relay by pushing
down the clip on the underside of the
terminal support.
2 Position the screwdriver on the terminal
support as shown in the figure. Carefully
dislodge the overload relay from the
contactor.
3 Pull the overload relay forward and away
from the terminal support.
