SIRIUS 3RA21/22 load feeders
6.6 Mounting
SIRIUS Innovations
600 System Manual, 01/2011, A8E56203870002-03
Connecting the adapters for reversing contactor assemblies
A pair of adapters is required to mount a reversing contactor assembly on a busbar. Busbar
adapters and device holders can be connected without tools. Link wedges simply need to be
plugged in on the rear of the adapters.

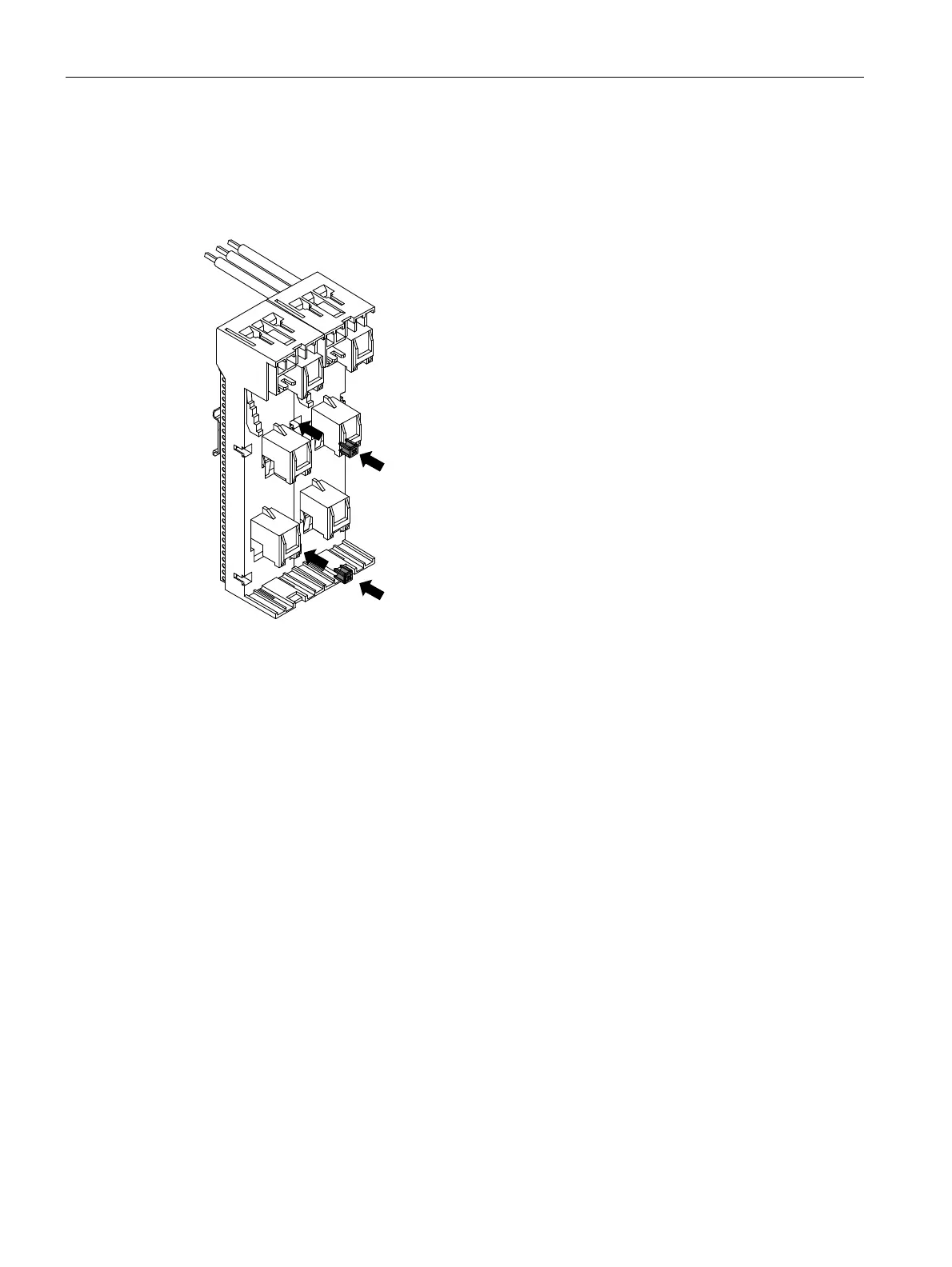

Figure 6-7 Connecting the adapters for mounting reversing contactor assemblies
The link wedges are included in the assembly kit for reversing operation or can be ordered
separately as accessories.
