System overview
1.9 Connection
SIRIUS Innovations
System Manual, 01/2011, A8E56203870002-03
77
Link modules
Link modules enable load feeders to be assembled without tools, simply by plugging the
relevant devices in.


$


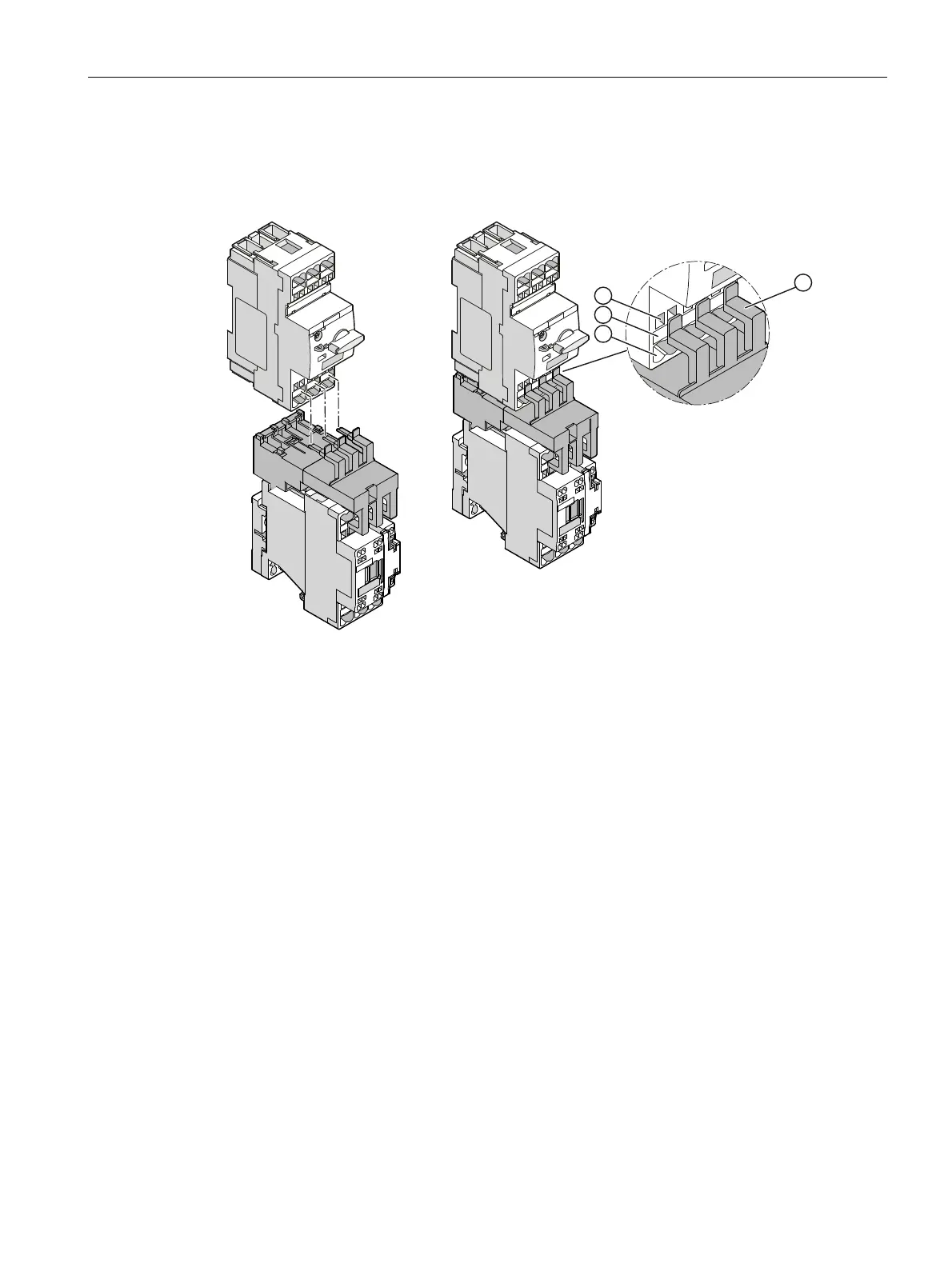

A Link module
â‘  Slot for link modules
â‘¡ Slot for conductor connection
â‘¢ Screwdriver opening for mounting/disassembly without a link module
Figure 1-34 Link module
