Getting Started
5.4 Operator Station
SIRIUS Soft Starter 3RW44 PCS 7 Library V8.2
26 Getting Started, 07/2016, A5E36563533002A/RS-AA/001

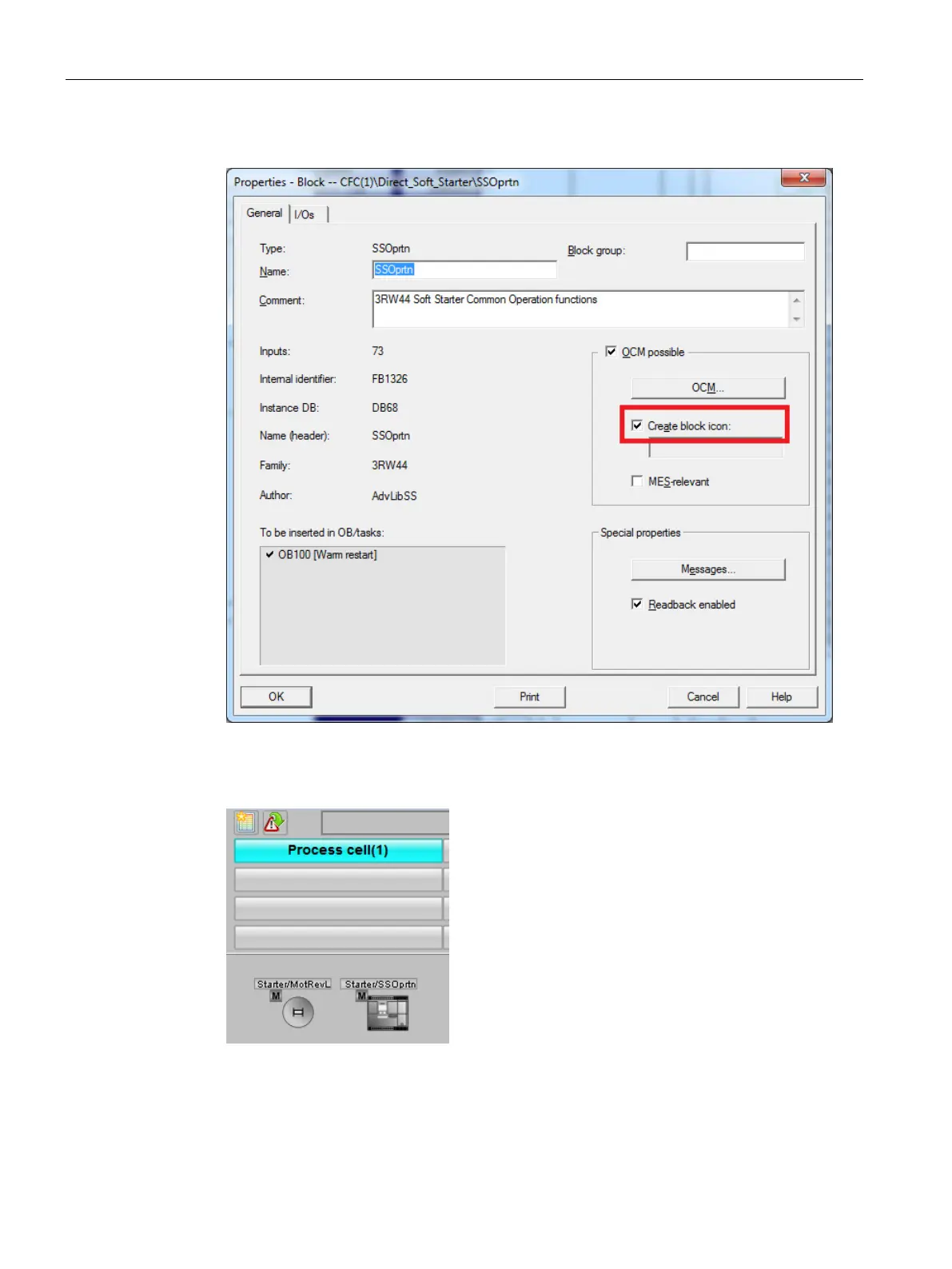

4. Check in the checkbox for
Create block icon
.
5. Confirm the
Properties
dialog by clicking
OK
.
6. Compile the OS and activate WinCC. Now you will find two block icons:
MotRevL
and
SSOprtn
.
