Mounting
6.1 Mounting
3TK2826 safety relay
16 Manual, 08/2007, GWA NEB 926 1579-02 DS 02
WARNING
The voltage at the terminal blocks must be switched off.
The terminal blocks can be:
• removed in the sequence a, b
• and connected in the sequence c, d
c
d
a
b
8 9
DEFG

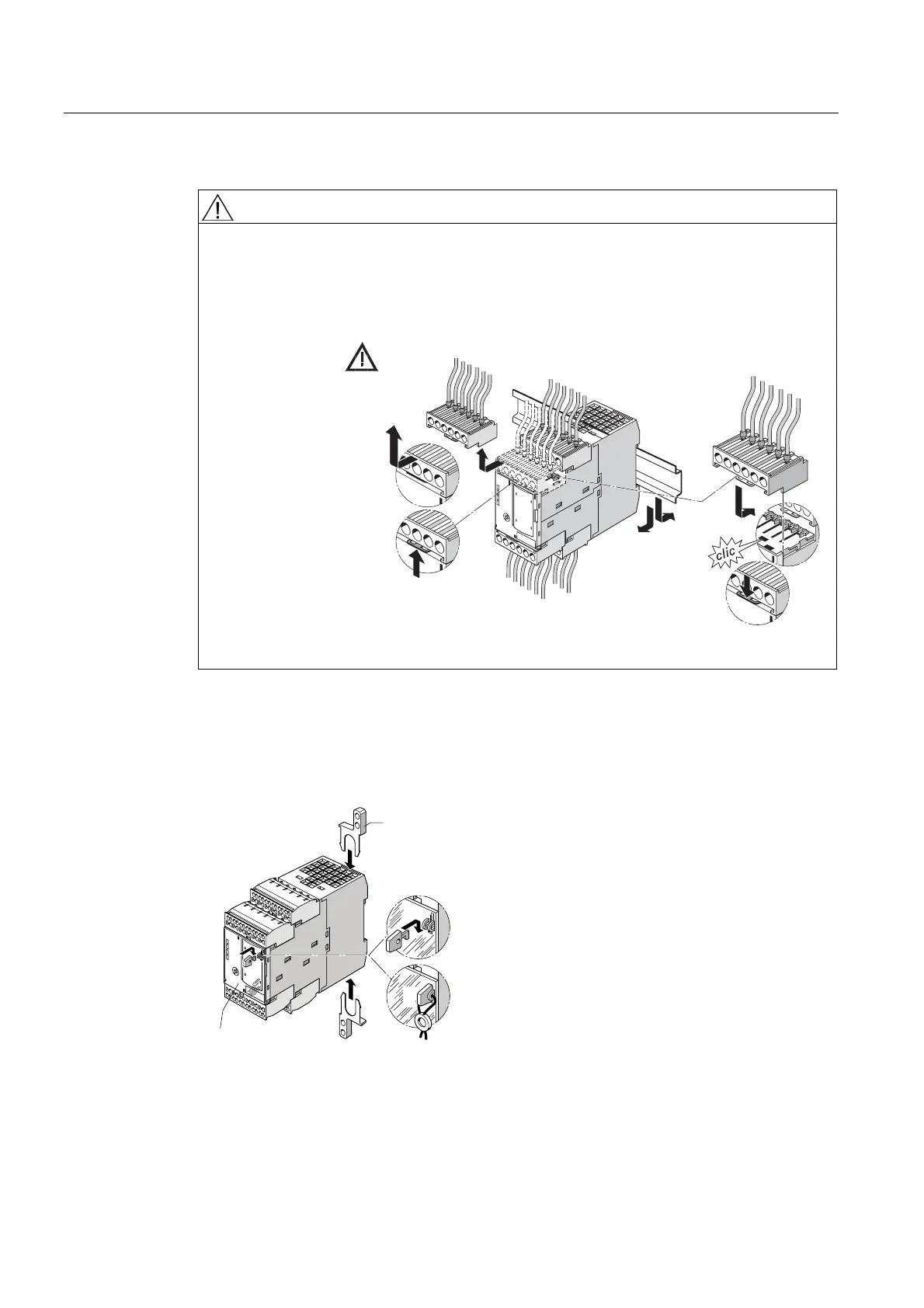

Figure 6-1 Mounting the 3TK2826 on a standard rail.
Screw mounting
As an alternative, screw mounting of the devices is possible with two additional push-in lugs
each, with the order no. 3RP1903.
3RP1903
6
7
6
3RP1902
Figure 6-2 3TK2826 with sealable cap. Mounting of the device with the aid of push-in lugs for screw
mounting.
