Siemens Sirius 3TK2826 - Page 18

Connecting
7.1 Connecting
3TK2826 safety relay
18 Manual, 08/2007, GWA NEB 926 1579-02 DS 02
Opening the spring-loaded terminals with coding
2
1
DIN ISO 2380 -1A 0,5 x 3
7
3
5
4
C
B
D
A
A, B, C, D:
Kodiert

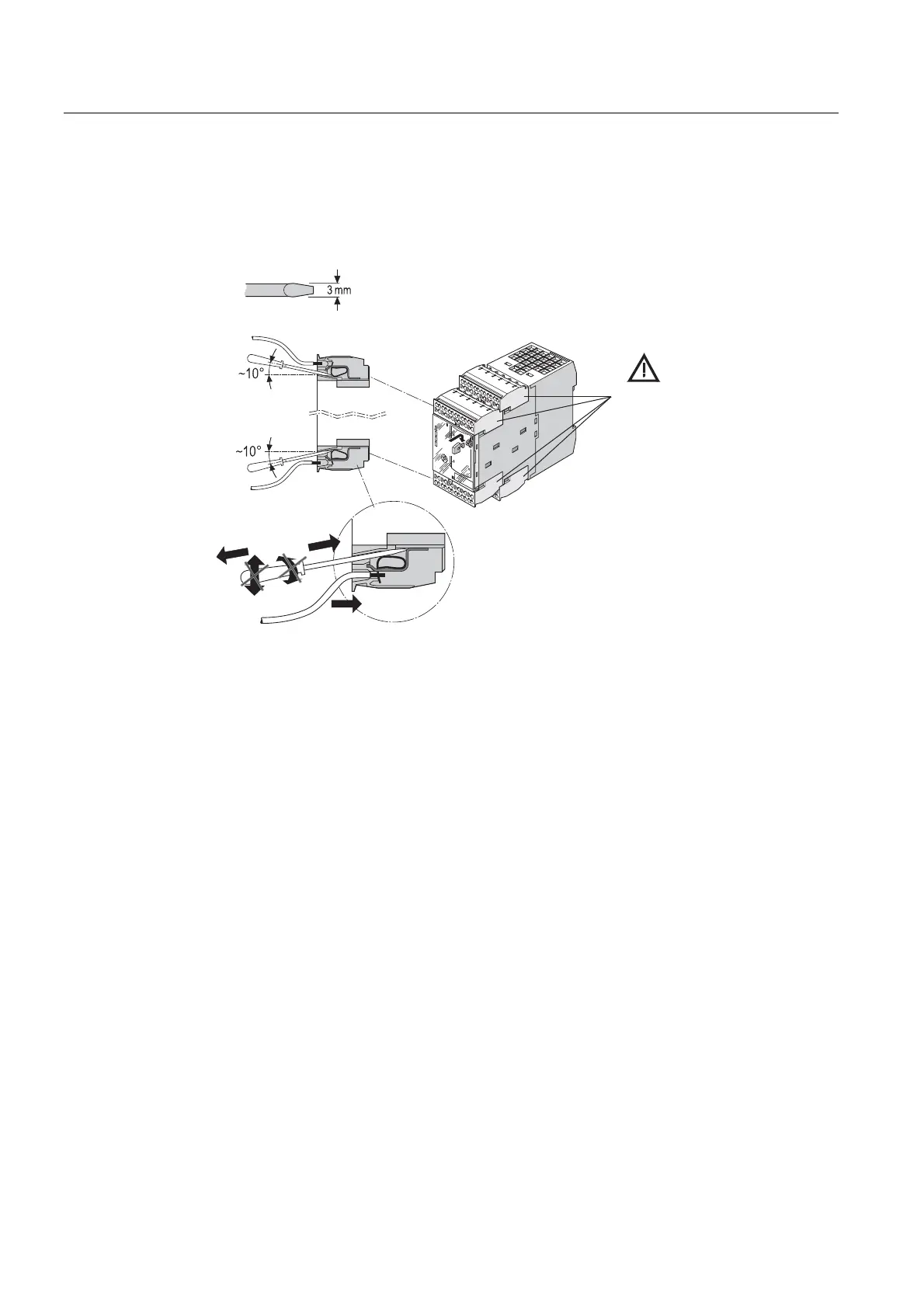

Figure 7-2 Opening the spring-loaded terminals with coding
