6.3 Efficiency
SITOP modular 1ph/2ph
46 Manual, 04.2018, C98130-A7548-A1-4-7629
6.3
Efficiency
6EP1333-3BA10
(24 V/5 A)
6EP1334-3BA10
(24 V/10 A)
6EP1336-3BA00
(24 V/20 A)
6EP1337-3BA00
(24 V/40 A)
Efficiency at U
out rated
,
I
out rated
, approx.
88 % 91 % 89 % 88 %
Power loss at U
out rated
,
I
out rated
, approx.
17 W 24 W 59 W 131 W
No-load operation power
loss, approx.
4 W 6 W 3 W 20 W
Power loss in the "latch-
ing shutdown" state
2 W 2 W 3 W 3 W

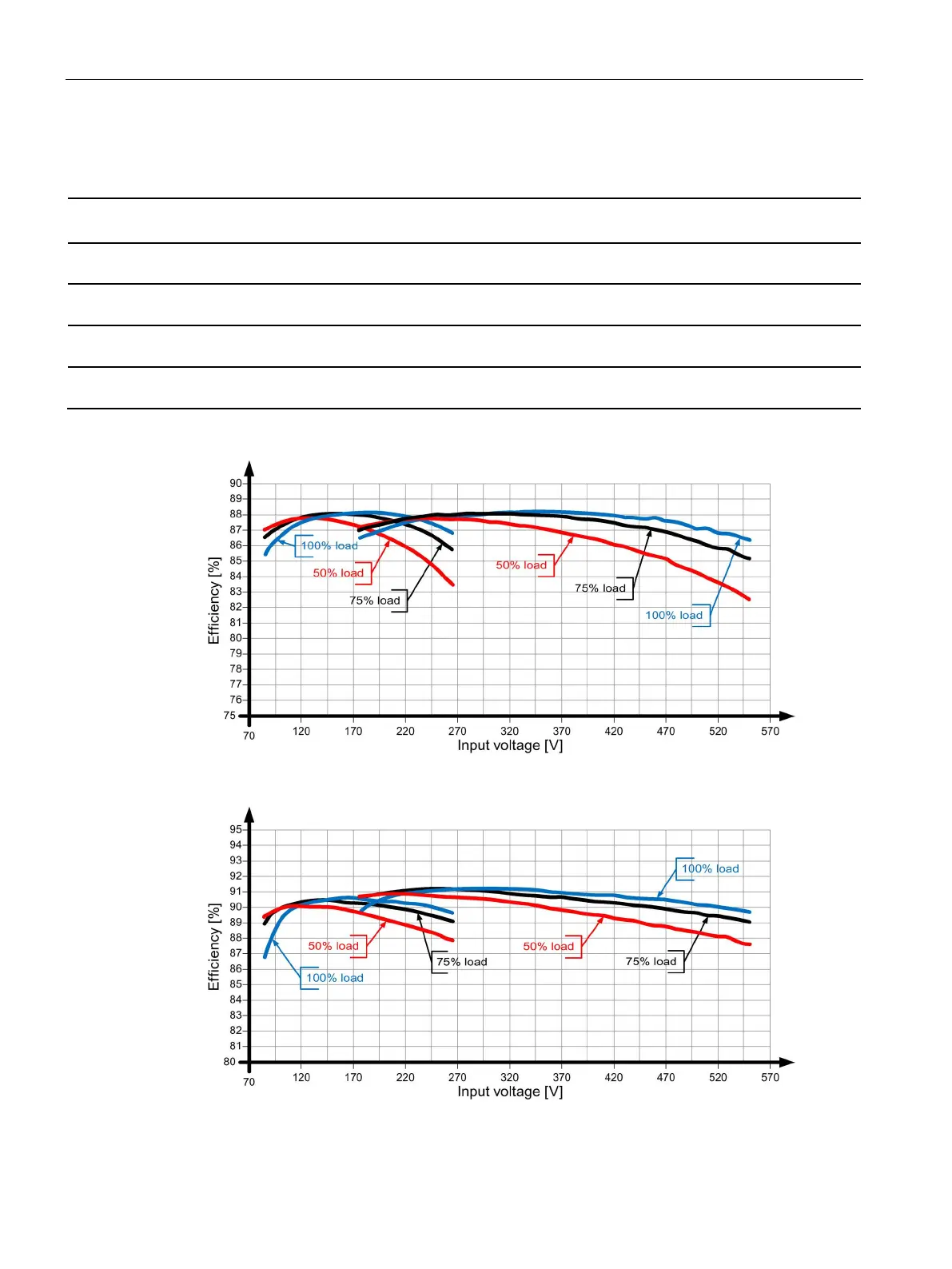

Figure 6-18 6EP1333-3BA10 efficiency
Figure 6-19 6EP1334-3BA10 efficiency
