SITRANS P, DS III series (7MF4.33.. 7MF4.34.. 7MF4.35..)
14 A5E03434645-01, 08/2011
See also
Introduction to commissioning (Page 24)
Fastening
Fastening without the mounting bracket
You can fasten the transmitter directly on the process connection.
Fastening with the mounting bracket
You can fasten the mounting bracket as follows:
● On a wall or a mounting frame using two screws
● On a vertical or horizontal mounting tube (Ø 50 to 60 mm) using a tube bracket
Fasten the transmitter mounting bracket using the two screws provided.

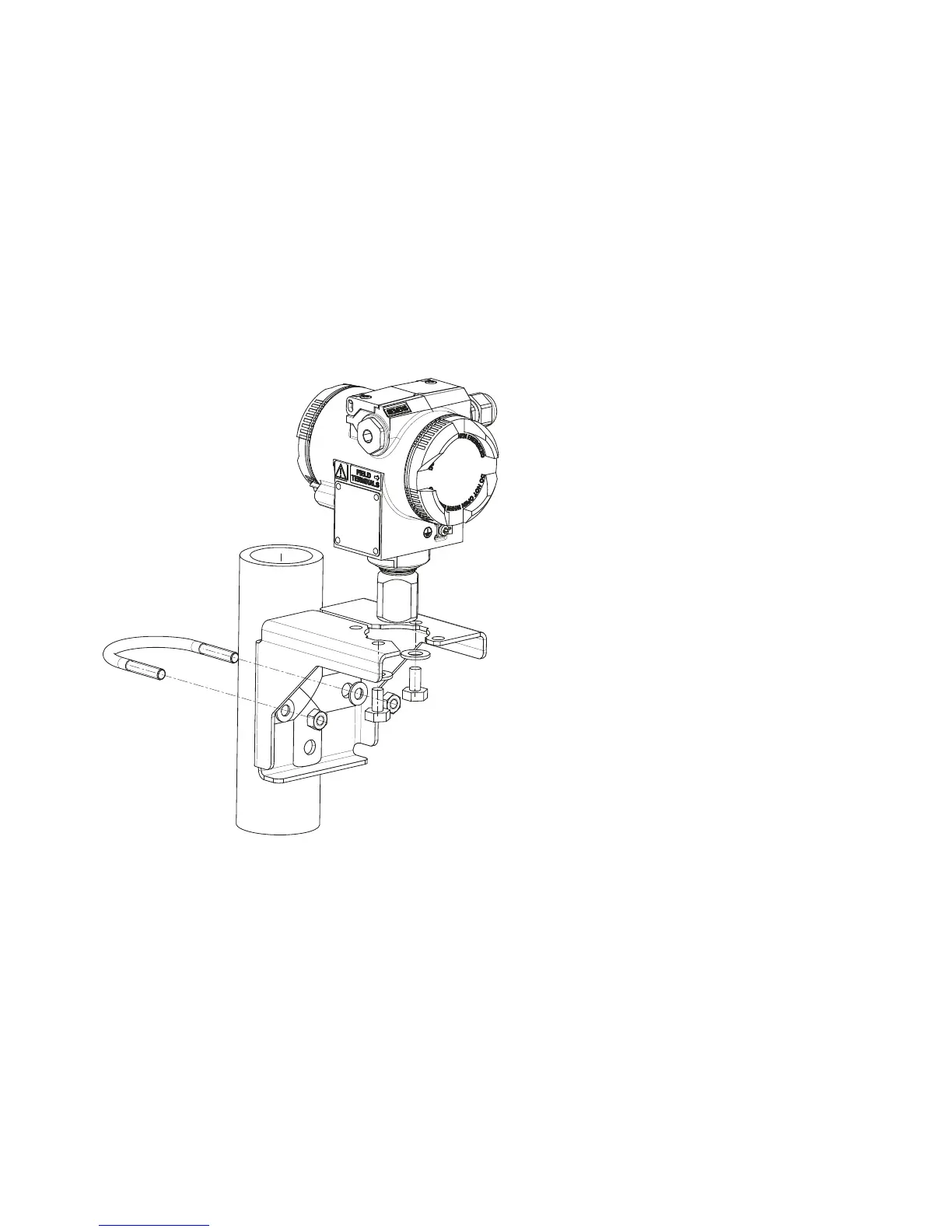

Figure 3 Fastening the transmitter on the mounting bracket
