5.2 Installing mounting plates
CP-S SA
22 Operating Instructions, 04/2009, A5E02522341B
5.2.3 Preparing the load cell and pressure piece set
CAUTION
Damage to the load cell
Observe the operating instructions for the load cell.
When mounting the load cell, ensure that you do not damage or cut the cables of the load
cell. Load cells must not be carried by their connecting cables.
1. Unpack the load cell.

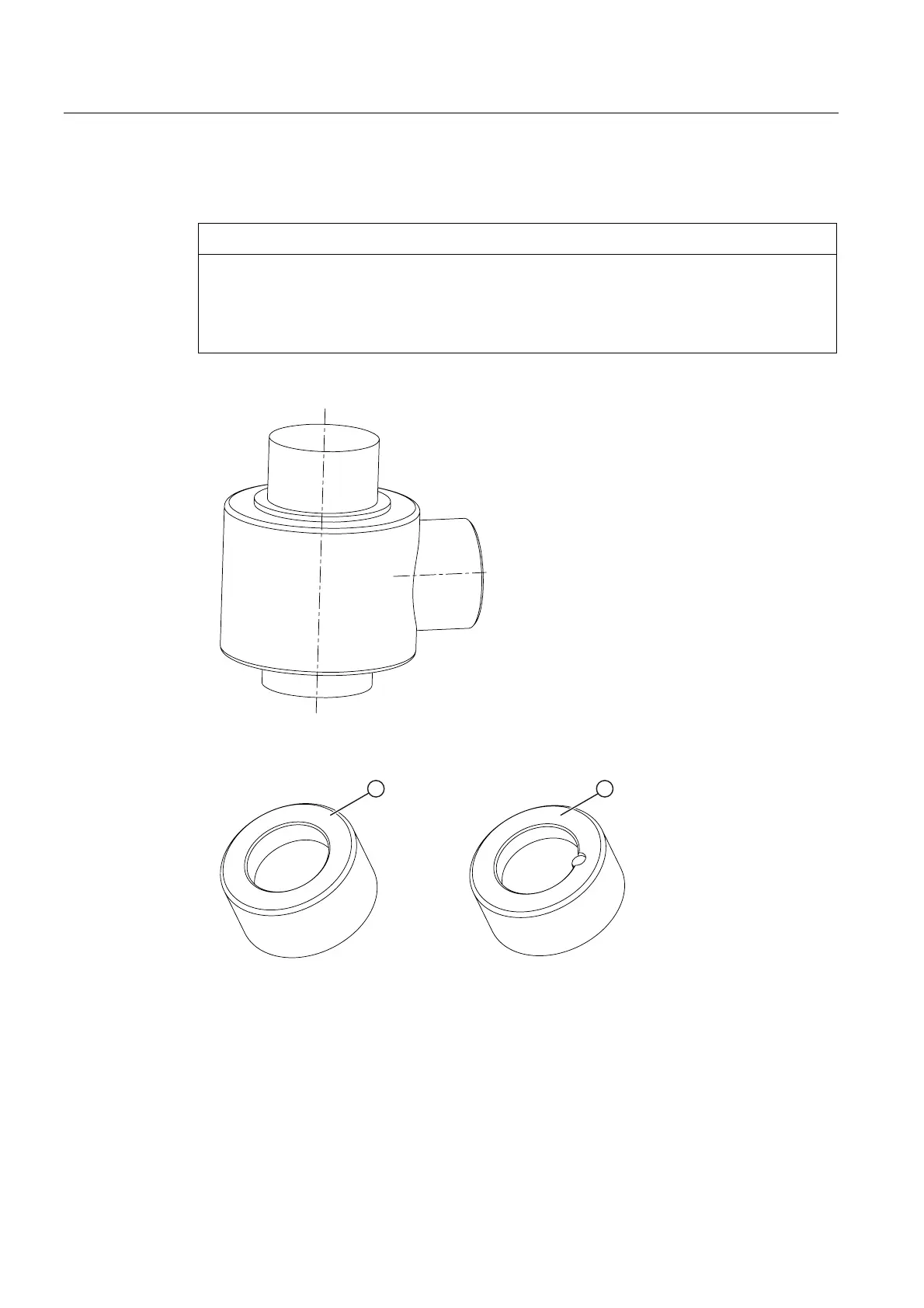

Figure 5-1 CP-S SA load cell
2. Unpack the pressure piece set.
① Upper pressure piece
② Lower pressure piece
Figure 5-2 CP-S SA pressure piece set
3. Read the accompanying information sheets.
4. Read the operating instructions for the SIWAREX WL load cells and for the pressure
piece set.
