Installation
5.2 Installing mounting plates
CP-S SA
Operating Instructions, 04/2009, A5E02522341B
23
5.2.4 Preparing the mounting plates
1. Unpack the mounting plates.
The delivery unit comprises one mounting plate.

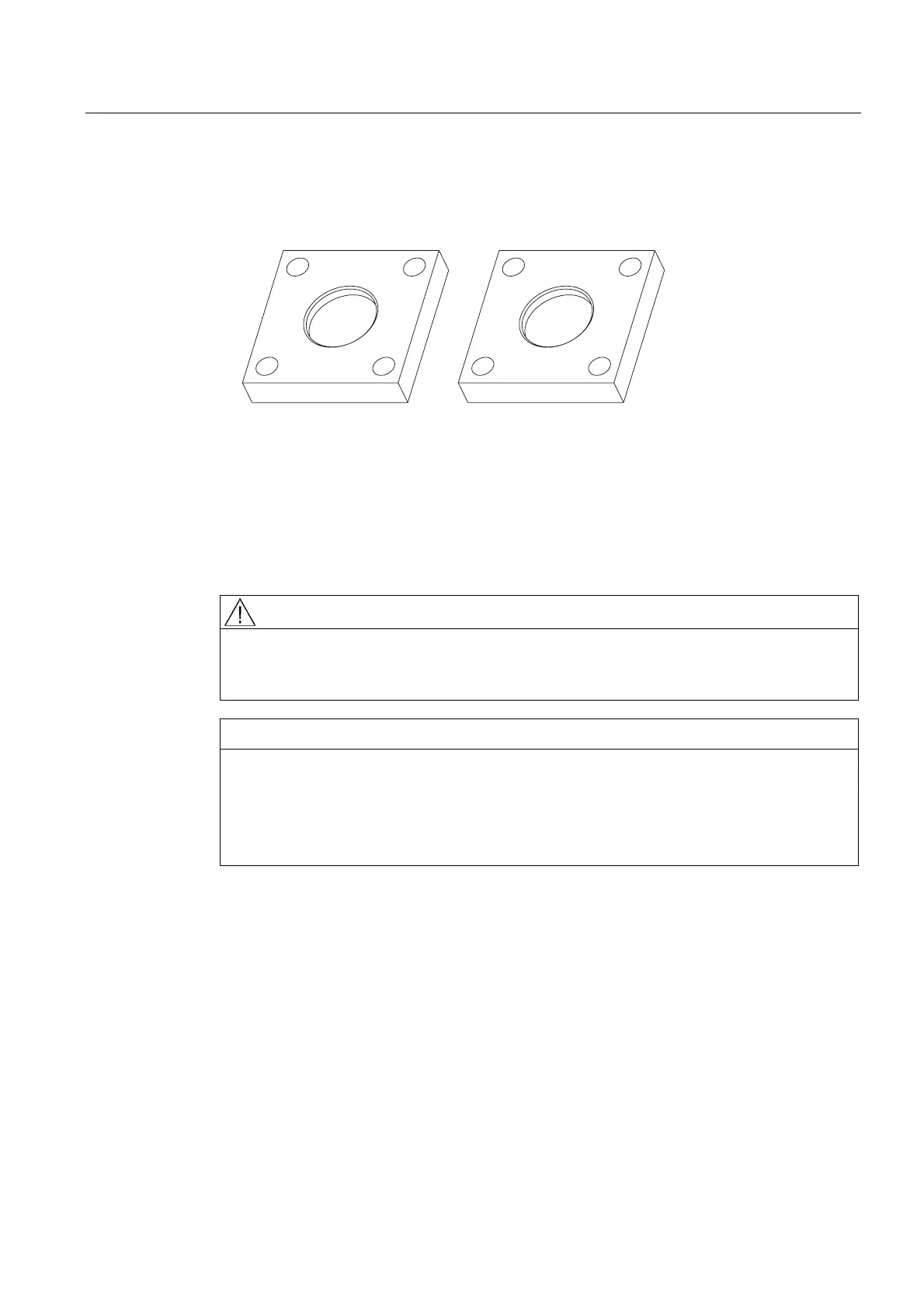

Figure 5-3 CP-S SA mounting plates
2. Read the accompanying information sheet.
3. Check the delivered unit.
5.2.5 Installing the load cell, pressure piece set and mounting plates
WARNING
Death or serious bodily injury
A falling load bearing implement can lead to serious bodily injury or considerable material
damage depending on the potential risk.
CAUTION
Damaging of load cells
Incorrect or incomplete installation can result in damage to the load cells, installed parts
and the load bearing implement.
Observe the warning notices at the start of the chapter, see:
Safety information/instructions
(Page
19)
Plane of the mounting surfaces
A plane of ≤ 0.2 mm is required for the mounting surfaces.
Align the load cell
The lower pressure piece features a pin. This prevents the load cell from twisting. You can
align the lower pressure piece accordingly to determine the orientation of the cable terminal
on the load cell.
