SL75 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 11 of 44 Internal Use Only

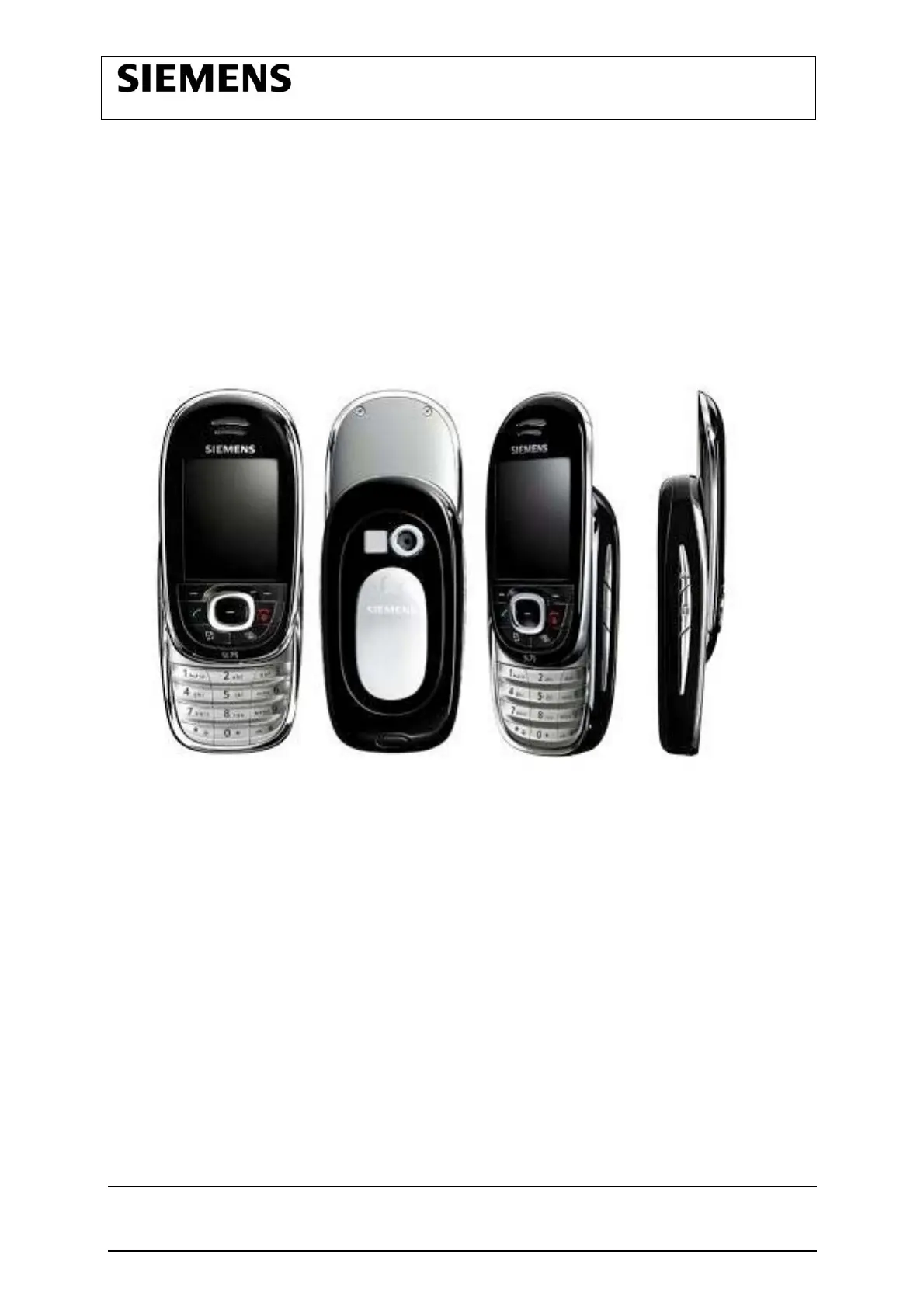

6 Unit Description of SL75
Hydra is a slider devices and the placement of different parts is analog to SL55 and
SL65. Hydra is deviate from the former slider devices on two main points slider system
and the number of parts. The slider system, which is delivered as one module is made in
Magnesium and stainless steel. The slider movement is assisted by 2 springs.
