Siemens SL75 - Assembling and Disassembling of Camera Module

SL75 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 25 of 44 Internal Use Only

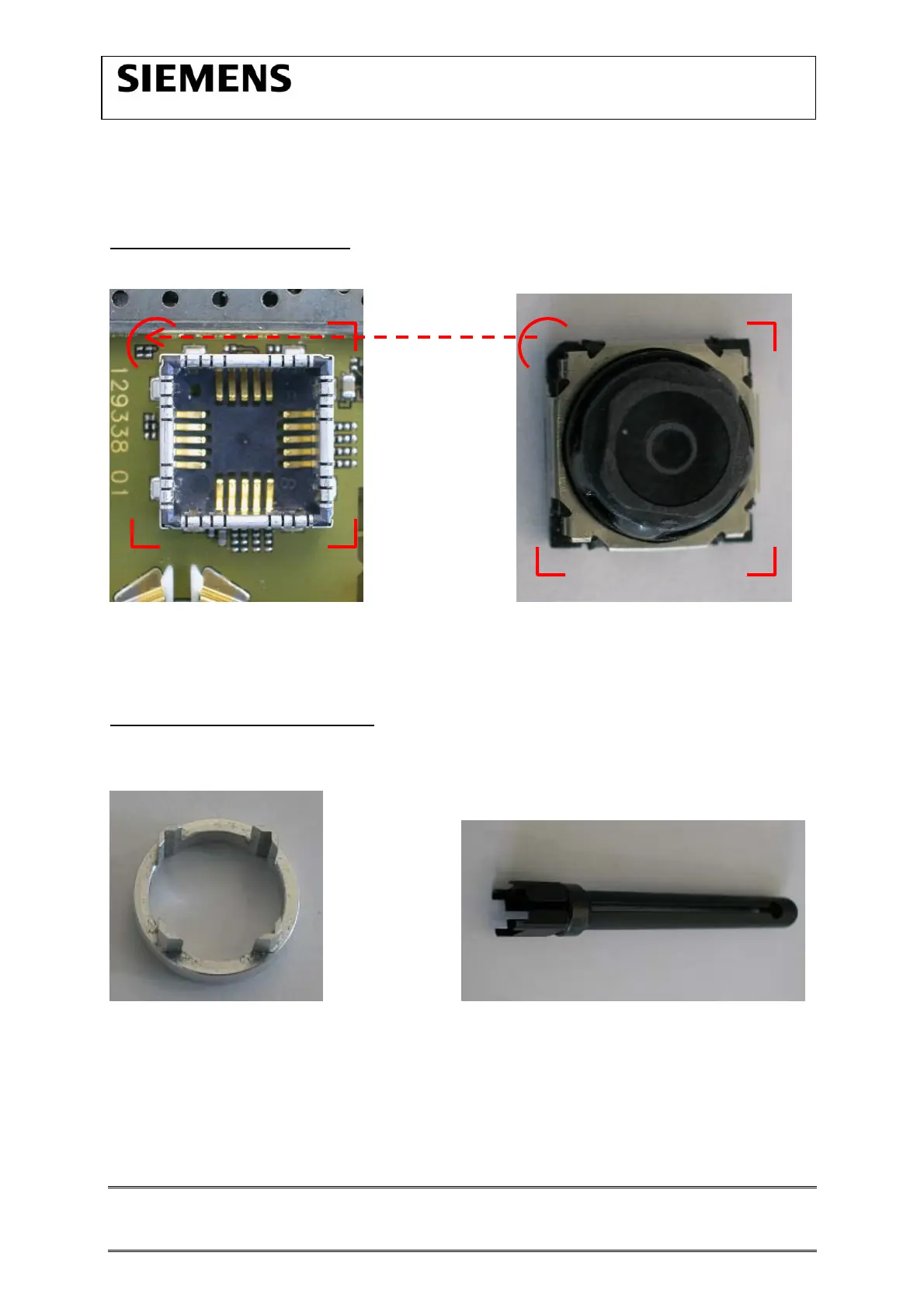

9 Assembling and Disassembling of Camera Module
Assembling of camera module
Place the Camera with the rounded corner into the corresponding corner of the Camera
Connector.
Disassembling of camera module
Tools required:
or
Description: Camera Ejector Jig Description: Camera Ejector Tool Professional
Part number: F30032-P514-A1 Part number: F30032-P507-A1
