SL75 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved
COM D CCQ APAC SLI Page 26 of 44 Internal Use Only

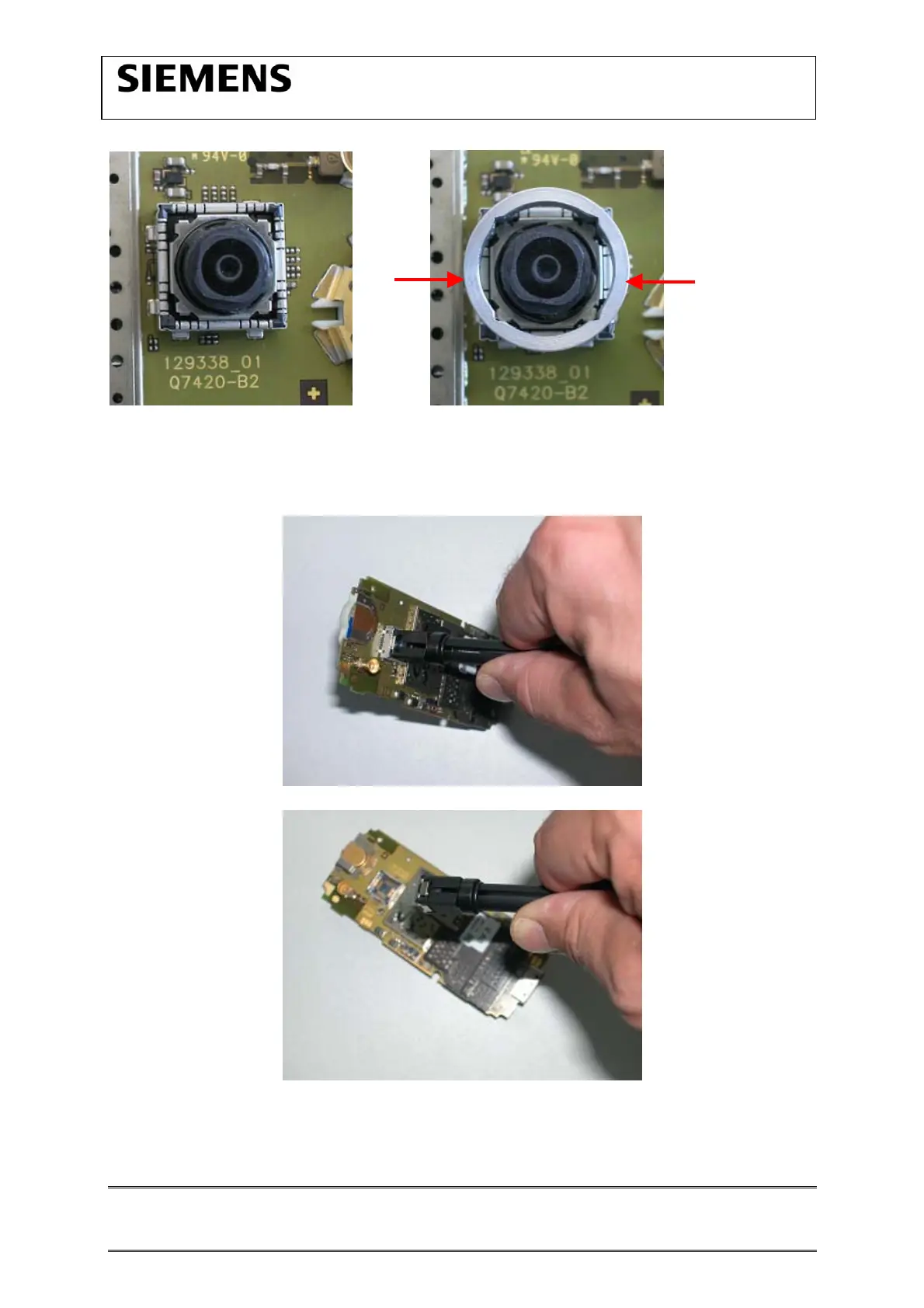

To disassemble the Camera, put the Camera Ejector jig or the camera ejector tool
professional through the four edges between the Camera and the Camera connector.
Now push the Ejector jig and pull out the Camera.
