4 - INSTALLATION

4.21.11 - 1 heating zones, DHW, DHW return, solar, 2 tanks (1 for solar and 1 for boiler) and solar transfer function

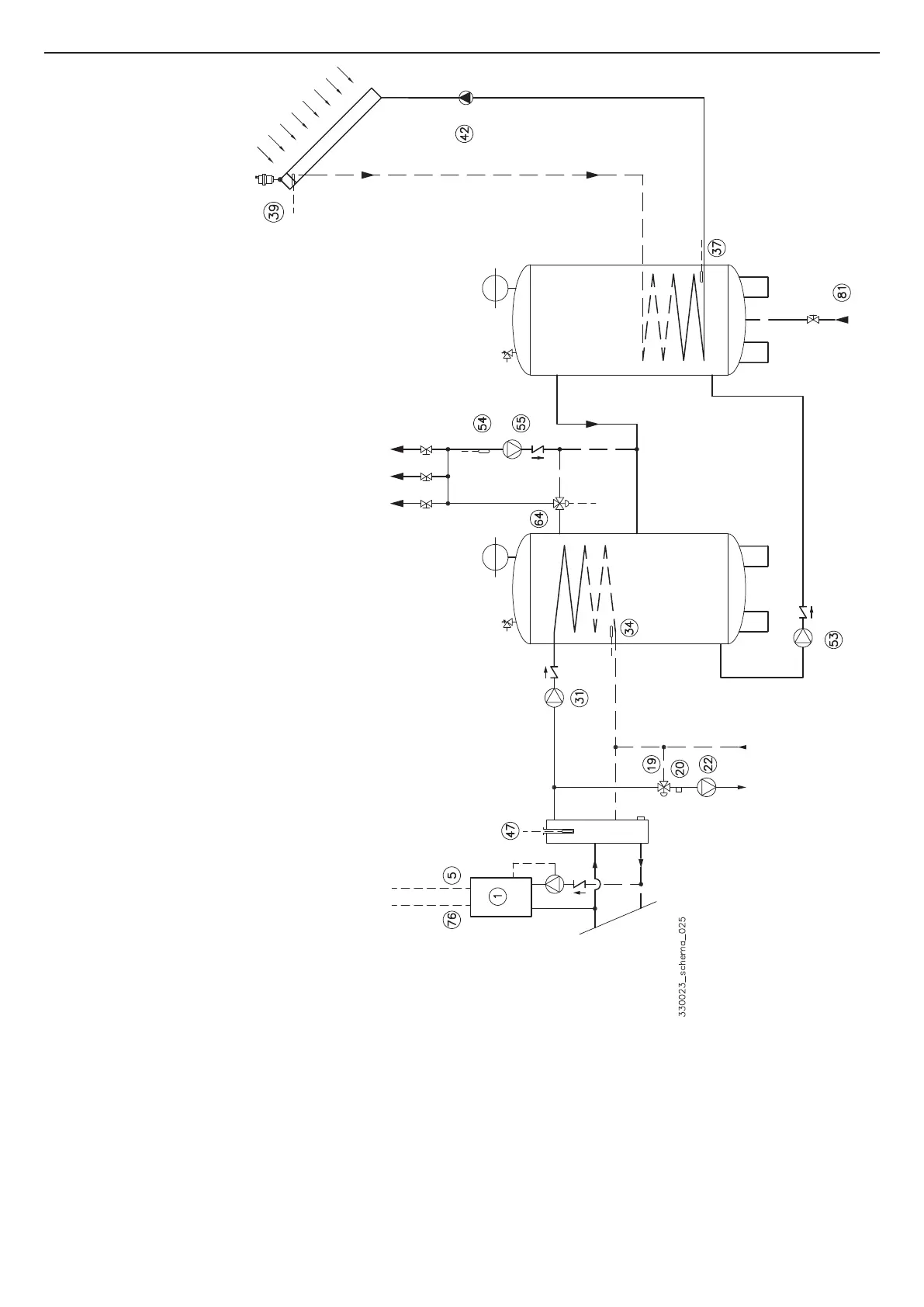

Figure 4-33 - Hydraulic connection

Settings:

Conguration > System >

Number of Modules 1

Module 1 Heating

Outdoor sensor No

DHW Yes

DHW return sensor Yes

DHW Mode Sensor

Unit of measure °C

Number of Zones 1

Antilegionella Yes

Shu󰀪e type pump Antilegionella

Solar Yes

Solar Atistagnation Yes

Solar Antifrost Yes

Modbus enable No

Heat pump No

Conguration > Zones > 3 way valve > 3 way valve 1> Zone type Mix

NOTE: The mixing pump (53) must be set as “Anti-legionella”.

NOTE: The mixing pump (53) also acts as a transfer by means of relay R1.
