Auxiliary Contacts

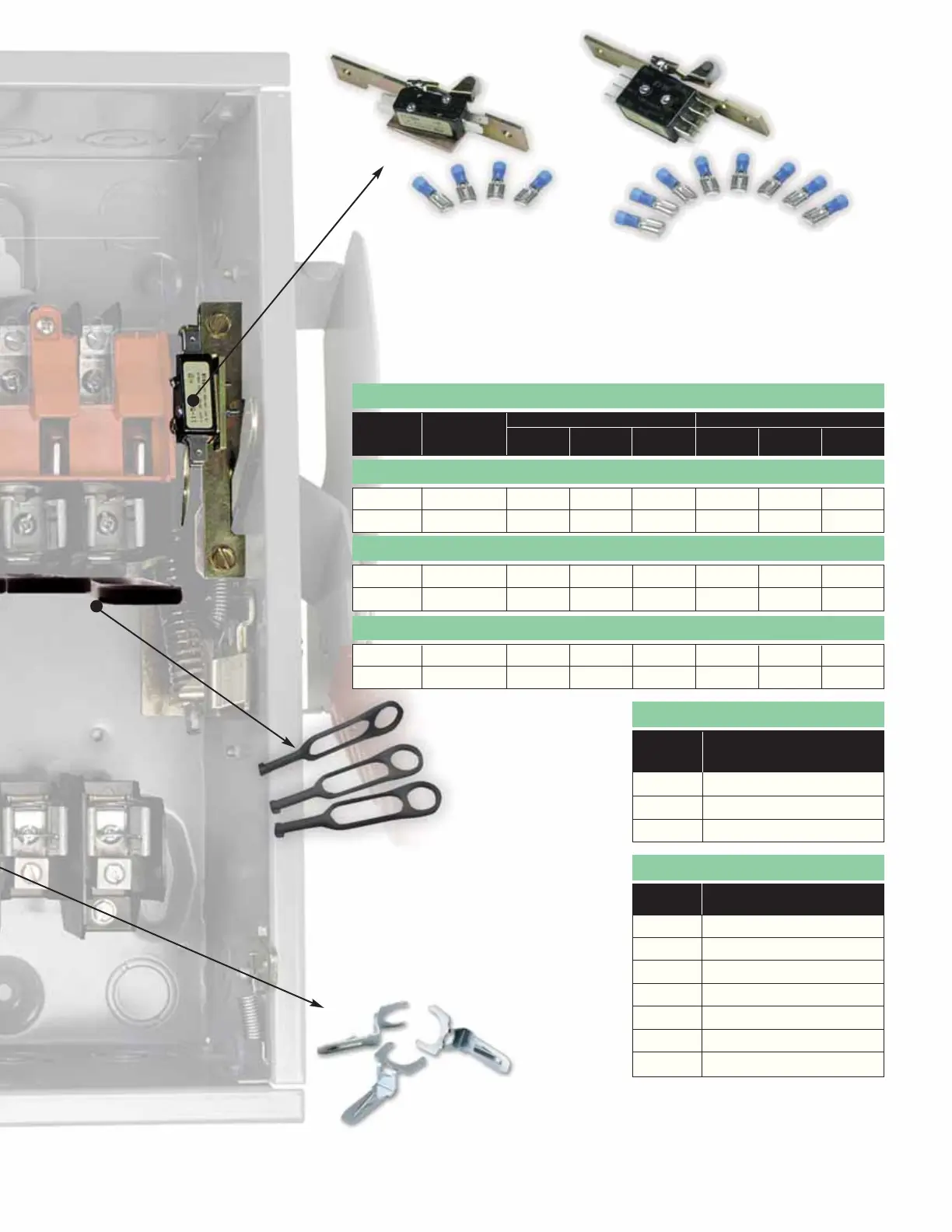

Auxiliary Contacts are available only for Heavy Duty Switches. The auxiliary contacts
are available in 1 normally open and 1 normally closed or 2 normally open and
2 normally closed configurations. Siemens offers a PLC Auxiliary Switch (30-200A)
that has very low resistance for low voltage and current typical in PLC circuits.
All auxiliary contacts make after and break before the main switch contacts.
Fuse Puller Kits
Fuse Puller Kits are field
installable in 30-100A Type
VBII Heavy Duty Switches
(one kit required per
switch).
Class R Fuse Clip Kits
All 30-600A General Duty and Heavy Duty
Switches are field convertible to accept
Class R Fuse Clip Kits. The kits
prevent the installation of Class H and
K fuses (one kit required
per switch).
Class R Fuse Clip Kits
Fuse Puller Kits
Switch
Ampere Fuse Puller Kit
Rating Catalog Number
30 HP61
60 HP62
100 HP63
Catalog
Number Description
GSRK321 30A, 240V Kit (GD only)
HR21 30A, 240V Kit (HD only)
HR612 30A, 600V Kit / 60A, 240V Kit
HR62 60A, 600V Kit
HR63 100A Kit
HR64 200A Kit
HR656 400A / 600A Kit
Switch Aux. Switch Kit Ampere Rating Kit Horsepower Rating
Ampere Catalog
125V AC 250V AC 28V DC 125V AC 250V AC 28V DC
Rating Number
Max. Max. Max. Max. Max. Max.
With 1 NO & 1 NC Isolated Contacts
With 2 NO & 2 NC Isolated Contacts
Low Current PLC Type with 1 NO & 1 NC Gold Plated Contacts
30-200 HA161234 10 10 – 1/2 3/4 –
400-1200 HA165678 10 10 – 1/2 3/4 –
30-200 HA261234 10 10 7 1/2 3/4 –
400-1200 HA265678 10 10 7 1/2 3/4 –
30-200 HA361234 10 10 – 1/2 3/4 –
400-1200 HA365678 10 10 – 1/2 3/4 –
Auxiliary Contacts
23
HP61
HR612
HA261234
HA161234
NOTE: For touch-up spray paint (16 oz. can) order catalog number XTP060.
