Description & Application
Double throw safety switches are
intended to transfer loads from one
power source to another. All two- and
three pole double throw switches are
suitable for use as service equipment.
All are UL listed. Switches are rated for
use on systems up to 10,000A when
protected with Class H fuses or
100,000A when protected with Class R
or Class T fuses¡. They can also be used
to connect a single source of power to
either of two loads. In this application it
is necessary to field modify fusible
switches so that the fuses are on the
load side of the switching mechanism.
A cover interlock is provided on all
ampere ratings. The operating handle
may be padlocked in the OFF position.
Fuse Capabilities of Fusible Switches
Amp
Fuse Type
Rating H R T J
30 & 60A, 240V Std Yes (kit) No No
30 & 60A, 600V Std Yes (kit) No Yes
➂
100 & 200A Std Yes (kit) Yes (kit) Yes
➂
400 & 600A DTF No No Yes
➂
Std
➃
ON
OFF
ON
Number Type 1– Indoor Type 3R – Outdoor➀ Type 12/3R Industrial Type 4X – Stainless Steel
System Voltage of Poles Amps Catalog Number Catalog Number Catalog Number Catalog Number
➀ Use HS Type hubs for 30–200A switches; 400A and larger switches do not have hub provisions.
➁ All Heavy Duty double throw switches with catalog numbers starting with “DT” are rated 200,000 AIC max. when protected by Class R, J or T fuses.
Fuse ampere rating must not exceed switch ampere rating.
➂ Move load base.
➃ Catalog No. F355SSDTK will accept Class T Fuse only
➄ Four pole switches are not approved for service entrance.

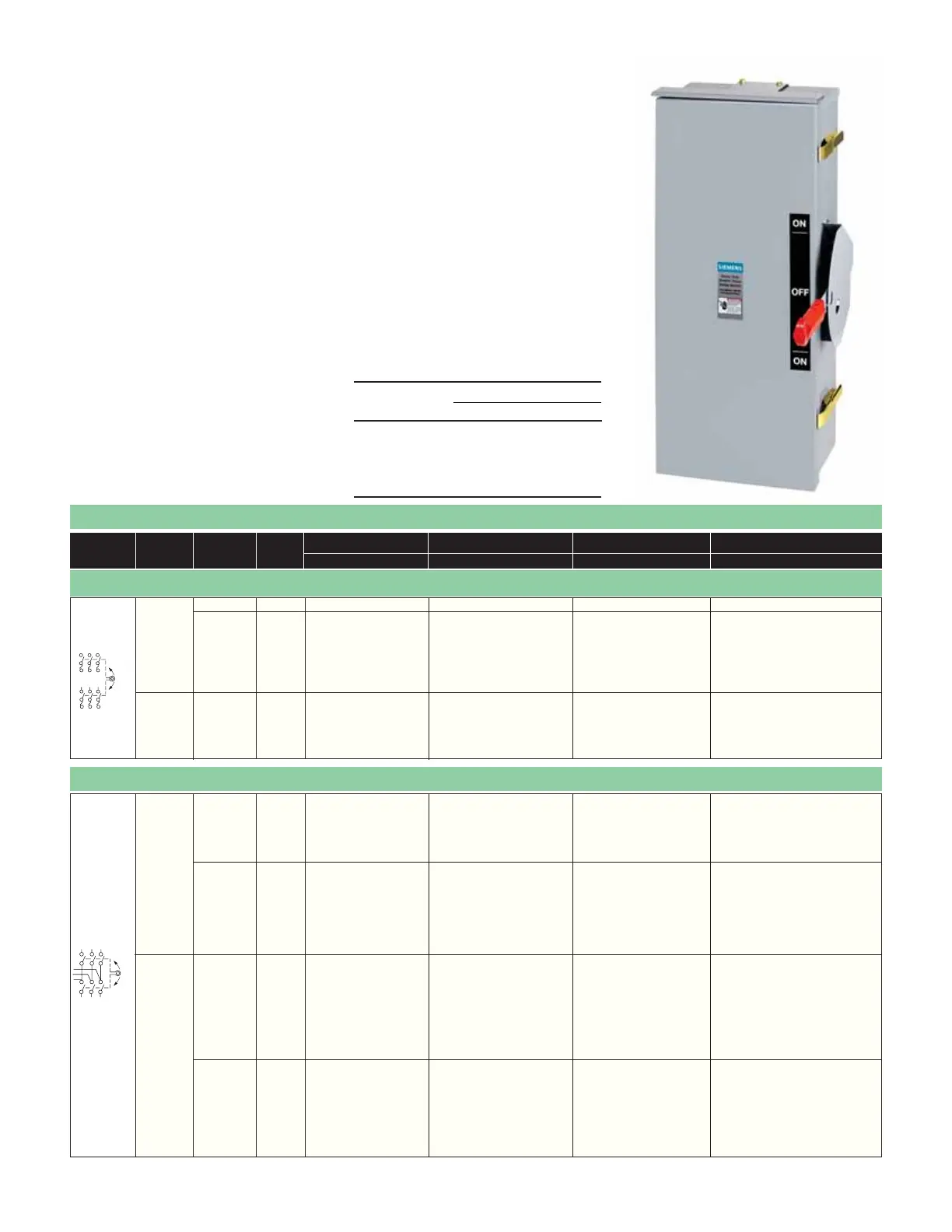

Double Throw Switches
28
Double Throw Switches
Heavy Duty Fusible (30-200A with Class H fuse provisions)
➁
2 200 DTF224 DTF224R — —
30 DTF321 DTF321R — —
240
60 DTF322 DTF322R — —
Volt AC
3
100 DTF323 DTF323R — —
or
200 DTF324 DTF324R — —
250
400 DTF325 — — —
Volt DC
600 DTF326 — — —
30 DTF361 — — —
600
60 DTF362 — — —
Volt AC,
3
100 DTF363 DTF363R — F353SSDTK
250
200 DTF364 DTF364R — F354SSDTK
Volt DC
400 DTF365 — — F355SSDTK
➃
Heavy Duty Non-Fusible
➁
30 DTNF221 — — —
60 DTNF222 — — —
2 100 DTNF223 — — —
200 DTNF224 DTNF224R — —
240
400 DTNF225 DTNF225R — —
Volt AC
30 DTNF321 — — —
or
60 DTNF322 — — —
250
100 DTNF323 DTNF323R — —
Volt DC
3 200 DTNF324 DTNF324R — —
400 DTNF325 — — —
600 DTNF326 — — —
800 DTNF327 — — —
30 DTNF361 DTNF361R DTNF361J DTNF361S
60 DTNF362 DTNF362R DTNF362J DTNF362S
3 100 DTNF363 DTNF363R DTNF363J DTNF363S
200 DTNF364 DTNF364R DTNF364J DTNF364S
400 DTNF365 DTNF365R NF355HDTK NF355SSDTK
600
600 DTNF366 DTNF366R — —
Volt AC
800 DTNF367 DTNF367R — —
or
1200 DTNF368 DTNF368R — —
250
4
➄
30 — NFR451DTK — —
Volt DC
60 — NFR452DTK — —
100 — NFR453DTK — —
200 NF454DTK NFR454DTK — NF454SSDTK
400 NF455DTK NFR455DTK — —
600 NF456DTK NFR456DTK — —
800 NF457DTK NFR457DTK — —
ON
OFF
ON
