Siemens TYPE VBII Series User Manual

A
D
E
(6) “F“ Dia. mounting holes
C
L
This mounting hole
omitted on 30-100A,
4 pole Non-fusible
switches
46

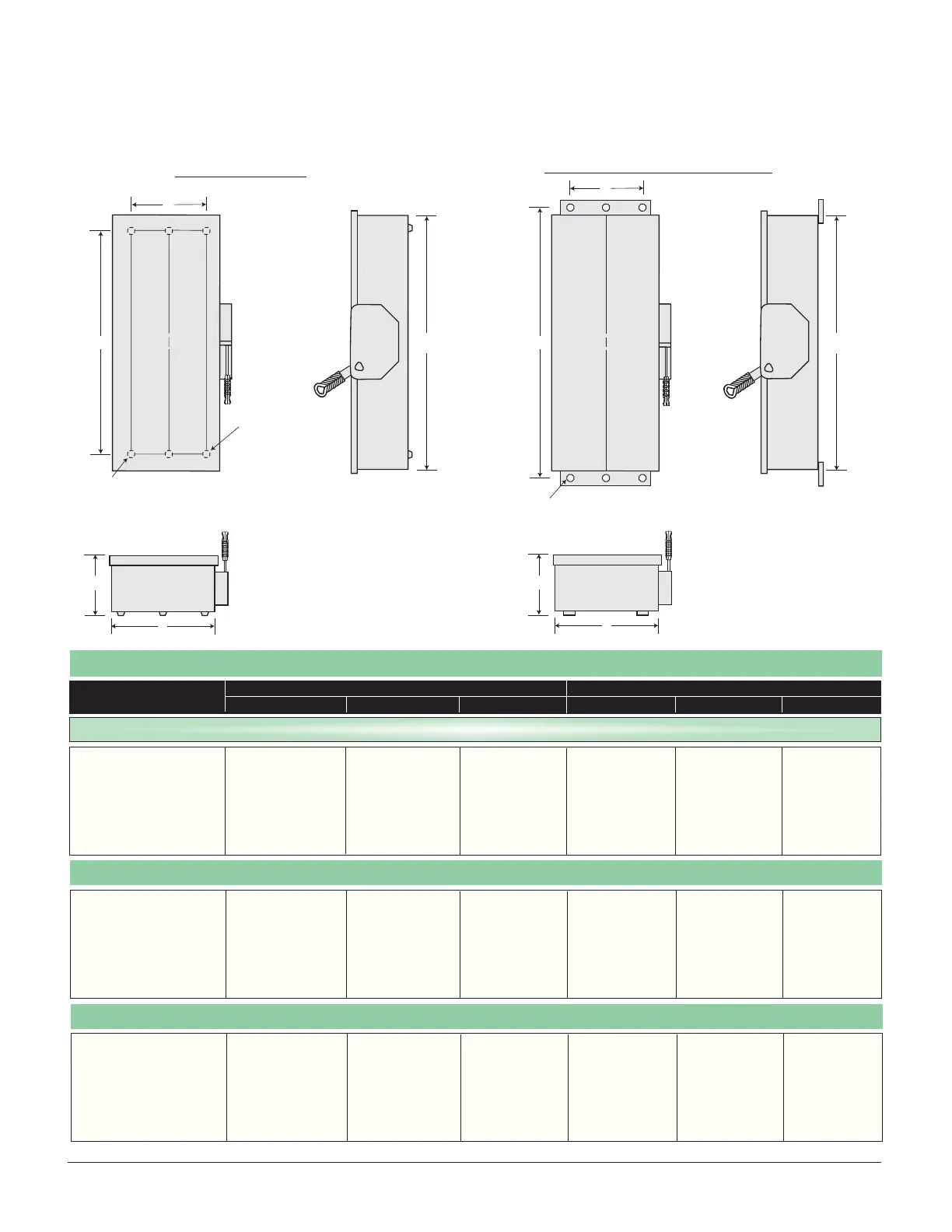

Detailed Dimension Drawings
Siemens Type VBII Safety Switches
Figure 1: Type 1
Figure 1: Type 12/3R and 4X
Enclosure Mounting
Catalog Number
ABCDEF
Figure 1, 4-Pole Fusible and Non-fusible, Type 1
HNF461 24.50 (622) 9.53 (242) 6.09 (155) 19.00 (483) 6.75 (171) 0.268 (7)
HF461 29.12 (740) 9.53 (242) 6.09 (155) 23.50 (597) 6.75 (171) 0.268 (7)
HNF462 24.88 (632) 11.50 (292) 6.09 (155) 19.00 (483) 9.38 (238) 0.268 (7)
HF462 33.53 (852) 11.50 (292) 6.09 (155) 27.50 (699) 9.38 (238) 0.268 (7)
HNF463 27.62 (702) 12.18 (309) 6.09 (155) 19.36 (492) 8.00 (203) 0.268 (7)
HF463 36.44 (926) 12.18 (309) 6.09 (155) 28.11 (714) 8.00 (203) 0.268 (7)
HNF464 36.00 (914) 19.12 (486) 6.42 (163) 30.88 (784) 15.00 (381) 0.44 (11)
HF464 49.48 (1257) 19.12 (486) 6.42 (163) 45.50 (1130) 15.00 (381) 0.44 (11)
4 & 6 Pole Safety Switch Dimensions – Inches (mm)
Figure 2, 4 & 6-Pole Fusible Type 12/3R and 4X
HF461J, HF661J, 29.50 (622) 9.53 (242) 6.48 (165) 31.65 (804) 5.47 (139) 0.27 (7)
HF661S
HF462J, HF662J, 33.53 (852) 11.50 (292) 6.48 (165) 35.69 (907) 8.00 (203) 0.27 (7)
HF662S
HF463J, HF663J, 36.44 (926) 12.18 (309) 6.48 (165) 38.67 (982) 8.47 (215) 0.27 (7)
HF663S
HF464J, HF664J, 49.48 (1257) 19.12 (486) 6.78 (172) 51.64 (1312) 13.44 (341) 0.33 (8)
HF664S
Figure 2, 4 & 6-Pole Non-fusible Type 12/3R and 4X
HNF461J, HNF661J, 24.50 (622) 9.53 (242) 6.48 (165) 26.65 (667) 5.47 (139) 0.27 (7)
HNF661S
HNF462J, HNF662J, 24.88 (632) 11.50 (292) 6.48 (165) 27.03 (687) 8.00 (203) 0.27 (7)
HNF662S
HNF463J, HNF663J, 27.54 (700) 12.18 (309) 6.48 (165) 29.77 (756) 8.47 (215) 0.27 (7)
HNF663S
HNF464J, HNF664J, 36.00 (914) 19.12 (486) 6.78 (172) 38.16 (969) 13.44 (341) 0.33 (8)
HNF664S
C
A
D
E
(6) ”F“ Dia. mounting holes (30-200A)
B
C
L
C
B
