Building Technologies Operation Manual and Mounting Instructions VGD4 / VRD4 / SKPx5 CC1U7643en
14.03.2018
Article no Type

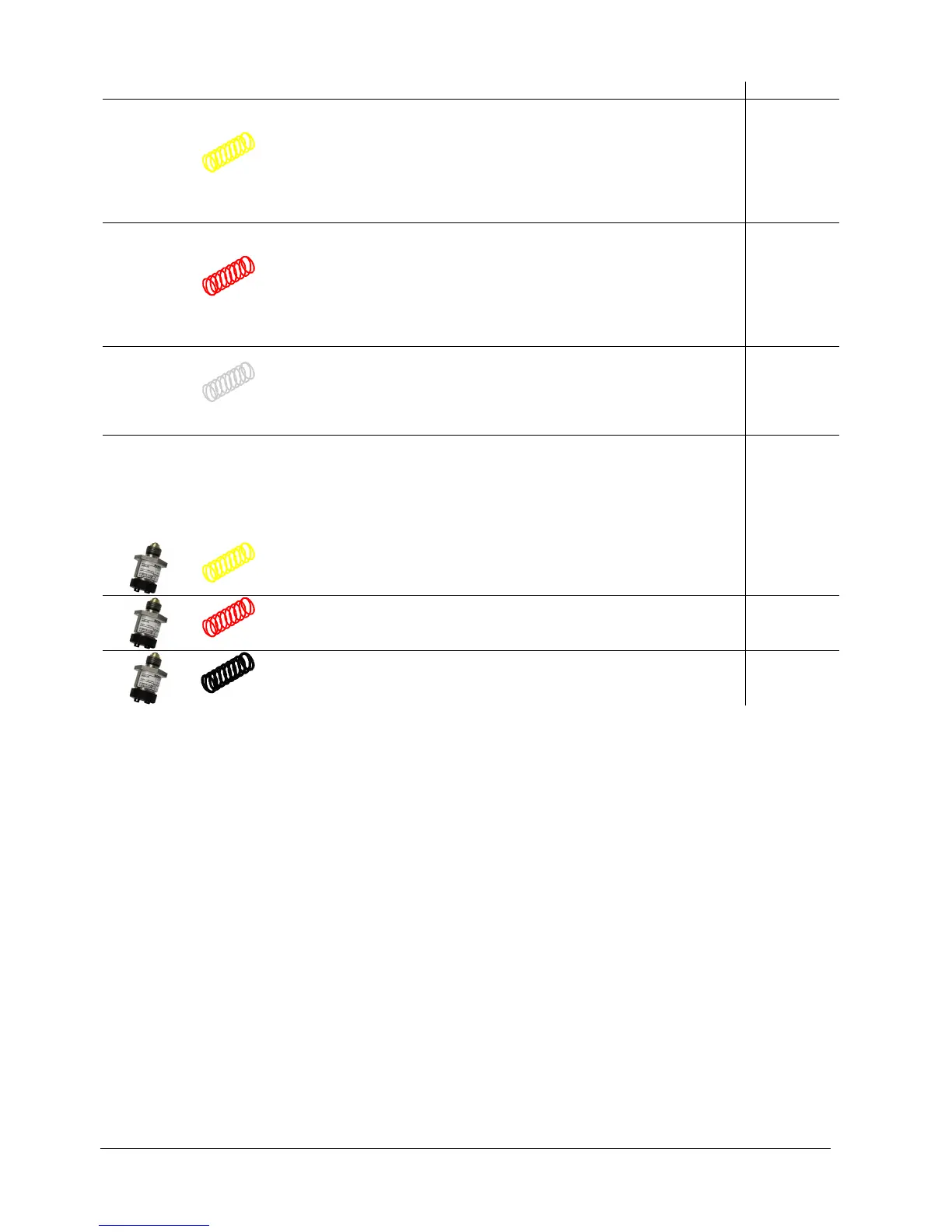

Setpoint spring (yellow/gold) for SKP25 actuator
∂ Optional for built-in standard spring AGA29
∂ 1.5…12 kPa for SKP25.0 actuator
∂ 7…70 kPa for SKP25.4 actuator
(optionally for AGA23 setpoint spring)
∂ Ø 1.6 mm
BPZ:AGA22 AGA22
Setpoint spring (red) for SKP25 actuator
∂ Optional for built-in standard spring AGA29
∂ 10…25 kPa for SKP25.0 actuator
∂ 15…150 kPa as a standard spring for SKP25.4
actuator
∂ Ø 1.8 mm
BPZ:AGA23 AGA23
Setpoint spring (unpainted) for SKP25.0 actuator
∂ Equivalent built-in standard spring
∂ 0.05…2.2 kPa
∂ Ø 1 mm
BPZ:AGA29 AGA29
AGA30.x setpoint fine adjustment for SKP25
actuator
∂ Packaging version with one setpoint spring each
∂ Refer to Mounting Instruction M7643
(74 319 0926 0)
Setpoint spring (gold)
∂ 1.5…12 kPa
∂ Ø 1.6 mm
BPZ:AGA30.0 AGA30.0
Setpoint spring (red)
∂ 10…25 kPa
∂ Ø 1.8 mm
BPZ:AGA30.1 AGA30.1
Setpoint spring (unpainted)
∂ 10…36 kPa
∂ Ø 2 mm
BPZ:AGA30.2 AGA30.2
